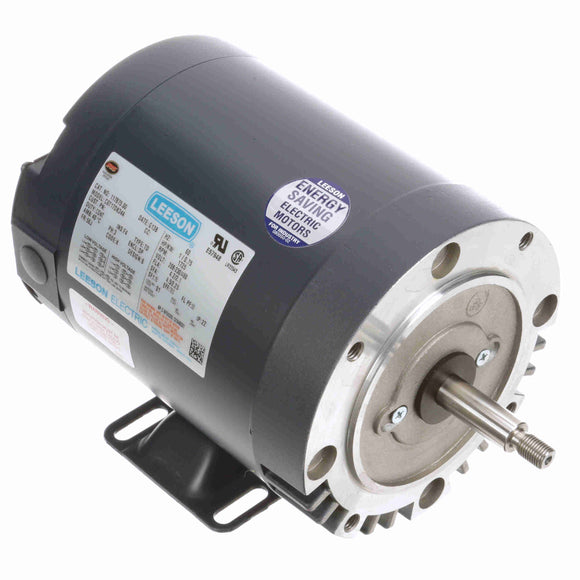

117875.00 Leeson 1HP Jet Pump Electric Motor, 1800RPM

$504.97

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 117875.00 Barcode: 691720003923

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • NEMA 56 C face mounting flange
  • Threaded shafts made of 303 grade stainless steel
  • CCW rotation facing lead end
  • Double sealed bearings on shaft end
  • Terminal board with quick connects
  • Locked shaft end bearings

General Specifications

UPC: 691720003923 Weight: 24.00 LB
Packaged Length: 14.44 IN Packaged Width: 7.94 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 1 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 4.2/2.1 A Speed: 1725 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 78.5 % Power Factor: 58
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: K
Frame: 56J Enclosure: Drip Proof
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 22

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Resistance Main: 19.48 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: J Overall Length: 10.87 in
Frame Length: 5.50 in Shaft Diameter: 0.625 in
Shaft Extension: 2.44 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 11.80 9.88 329.0 0 1.00
Break-Down 7.70 12.30 410.0 1,193 1.00
Full Load 2.25 3.00 100.0 1,743 1.00
Pull-Up 11.70 9.56 319.0 86 1.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 1.77 1.80 1.84 1.98 2.04 2.27 2.49
Rated Output (KW) 0.22 0.37 0.55 0.76 0.95 1.20 1.44
Efficiency (%) 0.0 51.4 69.3 74.0 78.5 76.6 75.8
Power Factor (%) 15.5 25.8 37.2 48.2 58.2 66.4 72.6
Speed (RPM) 1,798 1,786 1,773 1,759 1,743 1,726 1,707
Temp. Rise @ FL 0.0 0.0 0.0 0.0 60.0 0.0 0.0
Torque (ft-lbs) 0.00 0.75 1.50 2.25 3.00 3.75 4.50
