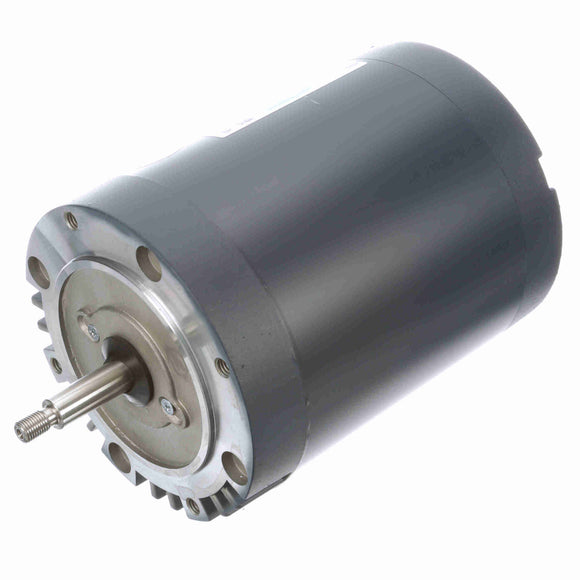

117873.00 Leeson 1.5HP Jet Pump Electric Motor, 1725RPM-1

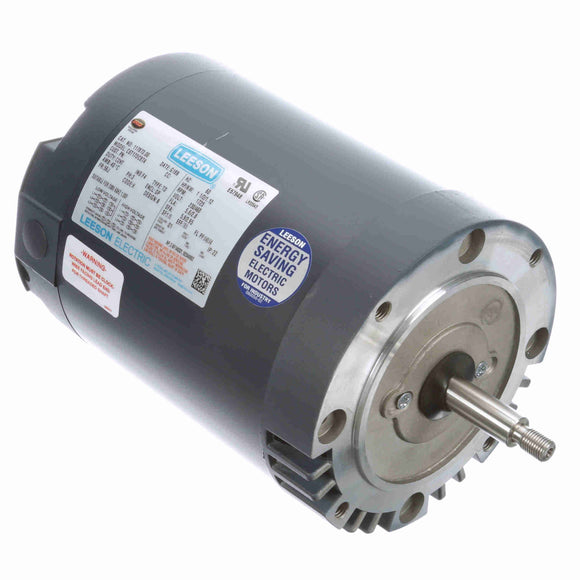

117873.00 Leeson 1.5HP Jet Pump Electric Motor, 1725RPM-2

117873.00 Leeson 1.5HP Jet Pump Electric Motor, 1725RPM

$148.97

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 117873.00 Barcode: 691720003909

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • NEMA 56 C face mounting flange
  • Threaded shafts made of 303 grade stainless steel
  • CCW rotation facing lead end
  • Double sealed bearings on shaft end
  • Terminal board with quick connects
  • Locked shaft end bearings

General Specifications

General Specifications
Model : C6T17DC87A Catalog No : 117873.00
Part Description : ..1 1/2HP..1725RPM.56J.DP.230/460V.3PH.60HZ.CONT.40C.1.15SF.C-FACE.C6T17DC87.....JET PUMP.NONE....... Category : Jet Pump
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 1.50 HP Output KW : 1.1 kW
Frequency : 60 Hz Voltage : 230/460 V
Current : 5.6/2.8 A Speed : 1725 RPM
Service Factor : 1.15 Phase : 3
Efficiency : 78.5 % Duty : Continuous
Insulation Class : F Design Code : B
KVA Code : K Frame : 56J
Enclosure : Drip Proof Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N
IP Code : 22

Technical Specifications

Technical Specifications
Electrical Type : Squirrel Cage Induction Run Starting Method : Across The Line
Poles : 4 Rotation : Reversible
Mounting : Round Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Rolled Steel Shaft Type : J
Overall Length : 11.37 in Frame Length : 6.00 in
Shaft Diameter : 0.625 in Shaft Extension : 2.44 in
Assembly/Box Mounting : F1 ONLY UPC : 691720003909
Weight : 28.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 0.00 0.0 17.50 389.0 0 0.00 0.0 1.50
Pull-Up 0.00 0.0 13.40 298.0 0 0.00 0.0 1.50
Locked-Rotor 33.60 600.0 13.50 300.0 0 0.00 0.0 1.50
Full Load 5.60 100.0 4.50 100.0 0 0.00 0.0 1.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 2.15
  • 0.200
  • 0.0
  • 11.7
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 2.17
  • 0.507
  • 56.6
  • 29.4
  • 1,787
  • 0.0
  • 1.13
  • 50 %
  • 2.29
  • 0.824
  • 68.8
  • 45.3
  • 1,774
  • 0.0
  • 2.25
  • 75 %
  • 2.51
  • 1.133
  • 74.7
  • 56.7
  • 1,762
  • 0.0
  • 3.38
  • 100 %
  • 2.80
  • 1.426
  • 78.5
  • 64.0
  • 1,750
  • 60.0
  • 4.50
  • 125 %
  • 3.08
  • 1.789
  • 77.5
  • 72.9
  • 1,734
  • 0.0
  • 5.63
  • 150 %
  • 3.46
  • 2.148
  • 76.7
  • 77.9
  • 1,718
  • 0.0
  • 6.75
