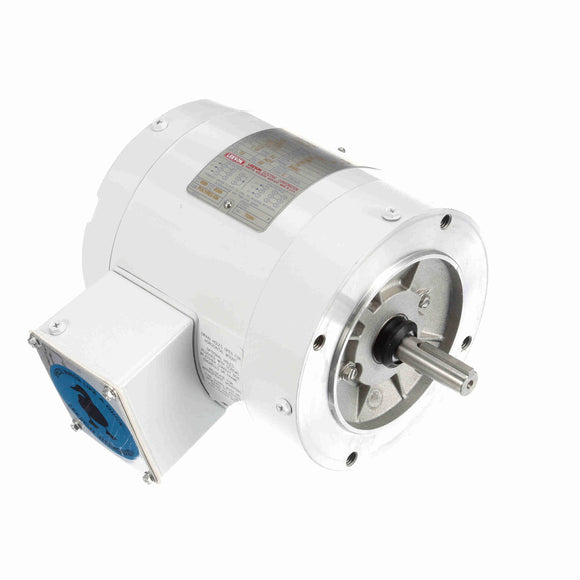

Leeson Washguard Electric Motor, 1/3 HP, 1800 RPM

$501.97

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 113954.00 Barcode: 691720013045

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • AC washdown
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Washdown brakemotors and pump motors available
General Specifications
Model : C6T17VC6G Catalog No : 113954.00
Part Description : 1/3HP..1725RPM.56.TENV.208-230/460V.3PH.60HZ.CONT.NOT.40C.1.15SF.C FACE.WASHGUARD.C6T17VC6G Category : General Purpose
Stock : No
Nameplate Specifications
Output HP : 0.33 Hp Output KW : 0.25 kW
Frequency : 60 Hz Voltage : 208-230/460 V
Current : 1.4-1.3/0.65 A Speed : 1725 rpm
Service Factor : 1.15 Phase : 3
Efficiency : 72 % Duty : Continuous
Insulation Class : F Design Code : NO DESIGN CODE
KVA Code : L Frame : 56C
Enclosure : Totally Enclosed Non Ventilated Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : Y
IP Code : 55
Technical Specifications
Electrical Type : Squirrel Cage Induction Run Starting Method : Across The Line
Poles : 4 Rotation : Reversible
Mounting : Round Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Rolled Steel Shaft Type : NEMA 56
Overall Length : 9.56 in Frame Length : 4.50 in
Shaft Diameter : 0.625 in Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY UPC : 691720013045
Weight : 22.00 LB
Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 0.65 16.00 100.0 1,761 0.33
Break-Down 0.00 72.00 450.0 1,300 0.33
Locked-Rotor 4.20 45.00 281.0 0 0.33
Pull-Up 0.00 43.00 269.0 200 0.33
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 0.54
  • 0.066
  • 0.0
  • 15.3
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 0.57
  • 0.120
  • 52.9
  • 26.4
  • 1,789
  • 0.0
  • 4.00
  • 50 %
  • 0.59
  • 0.186
  • 68.0
  • 39.6
  • 1,780
  • 0.0
  • 8.00
  • 75 %
  • 0.60
  • 0.253
  • 74.5
  • 52.9
  • 1,769
  • 0.0
  • 12.00
  • 100 %
  • 0.65
  • 0.325
  • 76.9
  • 62.8
  • 1,760
  • 66.0
  • 16.00
  • 125 %
  • 0.76
  • 0.406
  • 76.4
  • 67.1
  • 1,746
  • 0.0
  • 20.00
  • 150 %
  • 0.85
  • 0.481
  • 76.8
  • 71.0
  • 1,733
  • 0.0
  • 24.00
