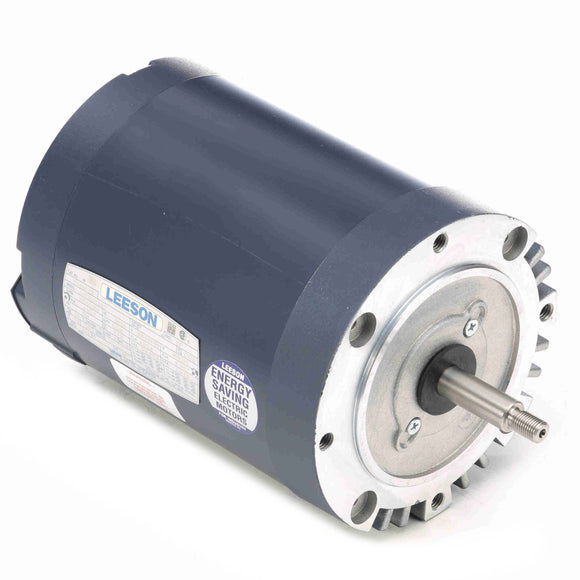

113891.00 Leeson 1.5HP Jet Pump Electric Motor, 3450RPM-1

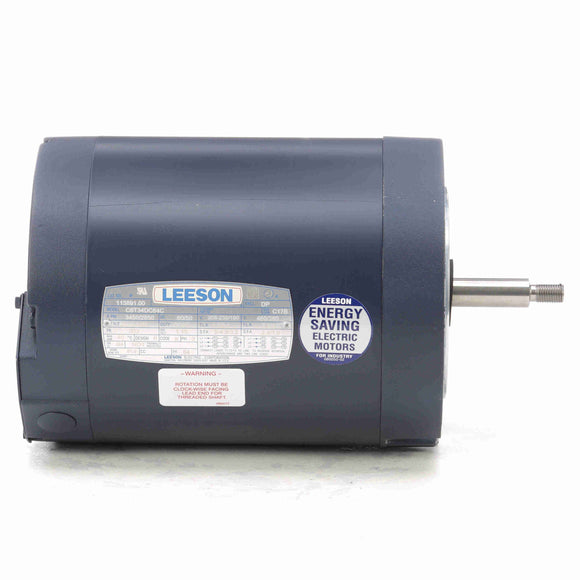

113891.00 Leeson 1.5HP Jet Pump Electric Motor, 3450RPM-2

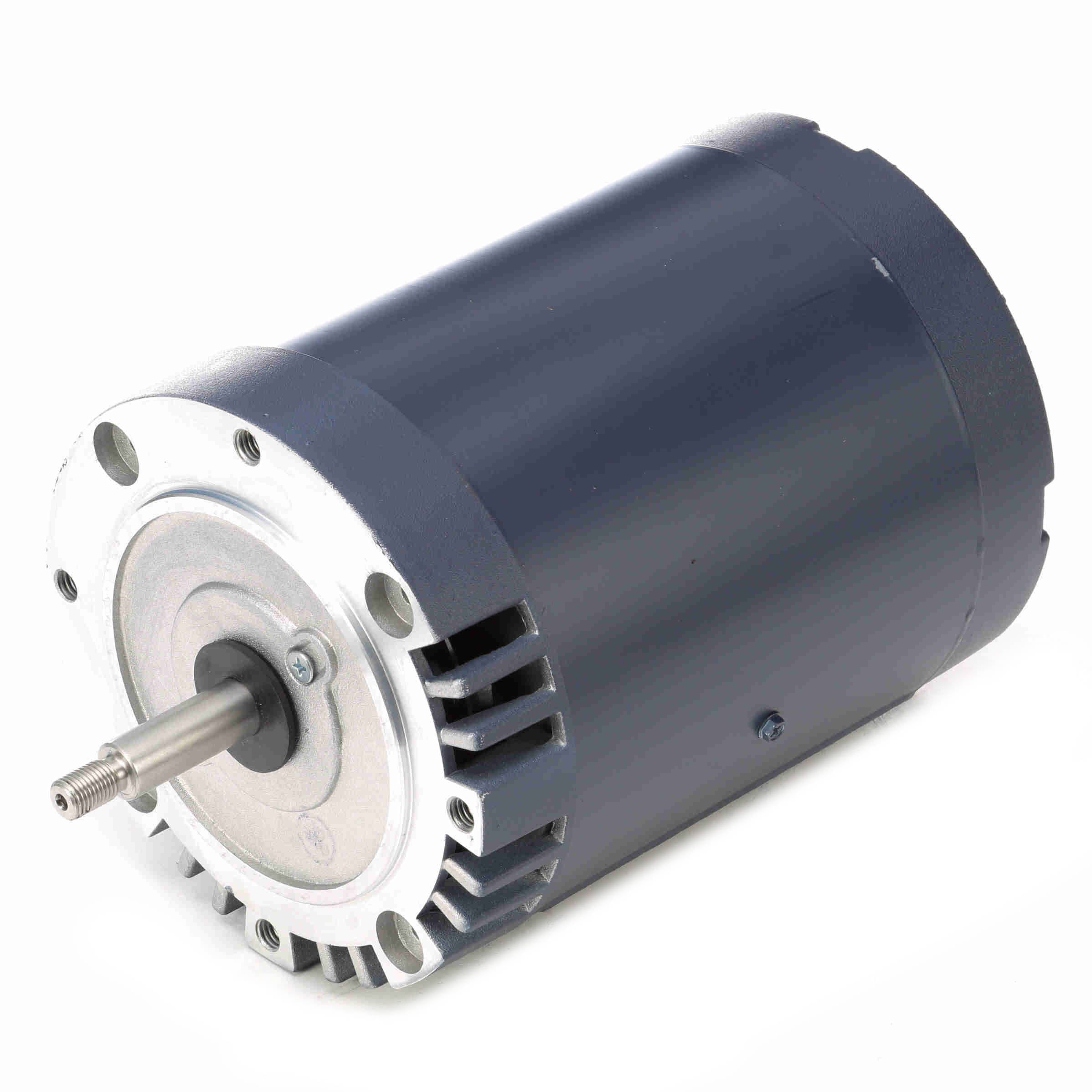

113891.00 Leeson 1.5HP Jet Pump Electric Motor, 3450RPM-3

113891.00 Leeson 1.5HP Jet Pump Electric Motor, 3450RPM

$513.97

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 113891.00 Barcode: 691720012598

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • NEMA 56 C face mounting flange
  • Threaded shafts made of 303 grade stainless steel
  • Double sealed bearings on shaft end
  • Terminal board with quick connects
  • Locked shaft end bearings

General Specifications

General Specifications
Model : C6T34DC64C Catalog No : 113891.00
Part Description : ..1 1/2HP..3450RPM.56.DP.230/460V.3PH.60HZ.CONT.40C.1.15SF.C FACE.C6T34DC64C.....JET PUMP.NOT....... Category : Jet Pump
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 1.50 HP Output KW : 1.1 kW
Frequency : 60 Hz Voltage : 208-230/460 V
Current : 4.4-4.2/2.1 A Speed : 3450 RPM
Service Factor : 1.15 Phase : 3
Efficiency : 81.5 % Duty : Continuous
Insulation Class : B Design Code : B
KVA Code : K Frame : 56J
Enclosure : Drip Proof Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N
IP Code : 22

Technical Specifications

Technical Specifications
Electrical Type : Squirrel Cage Induction Run Starting Method : Across The Line
Poles : 2 Rotation : Reversible
Mounting : Round Motor Orientation : Horizontal
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Rolled Steel Shaft Type : J
Overall Length : 11.34 in Frame Length : 6.00 in
Shaft Diameter : 0.625 in Shaft Extension : 2.44 in
Assembly/Box Mounting : F1 Only UPC : 691720012598
Weight : 31.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 15.00 6.40 284.0 0 1.50
Break-Down 0.00 8.10 360.0 2,400 1.50
Full Load 2.10 2.25 100.0 3,480 1.50
Pull-Up 0.00 6.00 267.0 400 1.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.00
  • 0.118
  • 0.0
  • 14.8
  • 3,598
  • 0.0
  • 0.00
  • 25 %
  • 1.09
  • 0.383
  • 79.5
  • 44.1
  • 3,572
  • 0.0
  • 0.60
  • 50 %
  • 1.35
  • 0.705
  • 80.6
  • 65.5
  • 3,540
  • 0.0
  • 1.13
  • 75 %
  • 1.65
  • 1.030
  • 81.9
  • 78.4
  • 3,512
  • 0.0
  • 1.69
  • 100 %
  • 2.03
  • 1.358
  • 81.9
  • 84.0
  • 3,480
  • 0.0
  • 2.25
  • 125 %
  • 2.45
  • 1.663
  • 82.8
  • 85.2
  • 3,444
  • 0.0
  • 2.81
  • 150 %
  • 2.88
  • 1.996
  • 81.8
  • 87.0
  • 3,406
  • 0.0
  • 3.37
