Features
- USDA-approved epoxy painted motors
- NEMA motors
- Rigid base and C face mount types
- BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
- 3-year warranty on encapsulated and premium efficient models
- UL recognized and CSA certified
- Washdown brakemotors and pump motors available
General Specifications

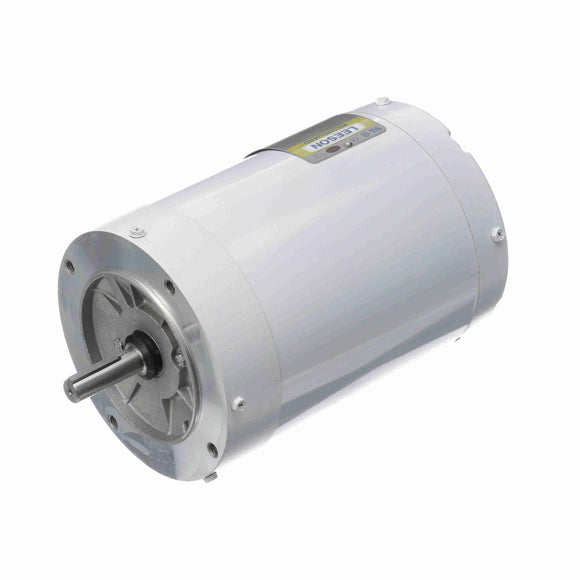

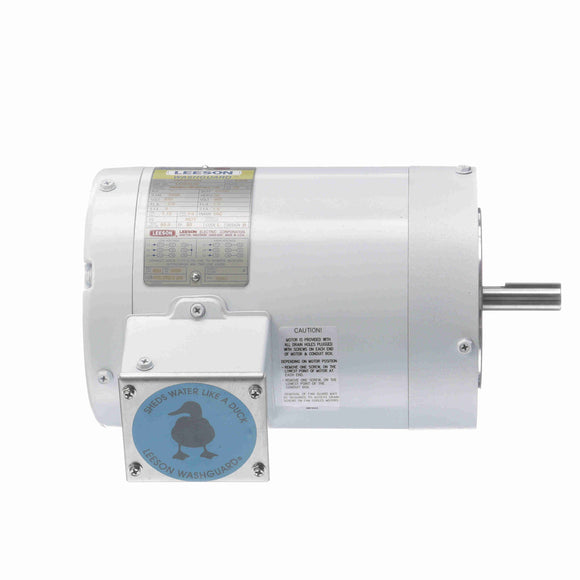

| Model : | C6T34VC2J | Catalog No : | 113023.00 |
| Part Description : | ..1HP..3450RPM.56.TENV.230/460V.3PH.60HZ.CONT.40C.1.15SF.C FACE.C6T34VC2J.....WASHGUARD.NOT....... | Category : | General Purpose |
| Stock : | No |
Nameplate Specifications
| Output HP : | 1 Hp | Output KW : | 0.75 kW |
| Frequency : | 60 Hz | Voltage : | 230/460 V |
| Current : | 2.6/1.3 A | Speed : | 3450 rpm |
| Service Factor : | 1.15 | Phase : | 3 |
| Efficiency : | 77 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | B |
| KVA Code : | L | Frame : | 56C |
| Enclosure : | Totally Enclosed Non Ventilated | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6205 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 55 |
Technical Specifications
| Electrical Type : | Squirrel Cage Induction Run | Starting Method : | Across The Line |
| Poles : | 2 | Rotation : | Reversible |
| Mounting : | Round | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Rolled Steel | Shaft Type : | NEMA 56 |
| Overall Length : | 11.56 in | Frame Length : | 6.50 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 1.88 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720011683 |
| Weight : | 38.00 LB |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Full Load | 1.30 | 100.0 | 1.50 | 100.0 | 3,495 | 0.00 | 0.0 | 1.00 |
| Break-Down | 0.00 | 0.0 | 6.00 | 400.0 | 2,700 | 0.00 | 0.0 | 1.00 |
| Pull-Up | 0.00 | 0.0 | 4.30 | 287.0 | 400 | 0.00 | 0.0 | 1.00 |
| Locked-Rotor | 12.00 | 923.0 | 4.50 | 300.0 | 0 | 0.00 | 0.0 | 1.00 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. rise @ FL
- Torque (ft-lb)
- 0 %
- 0.57
- 0.180
- 0.0
- 39.6
- 3,599
- 0.0
- 0.00
- 25 %
- 0.66
- 0.285
- 64.1
- 54.2
- 3,571
- 0.0
- 0.36
- 50 %
- 0.81
- 0.490
- 76.2
- 75.9
- 3,551
- 0.0
- 0.74
- 75 %
- 1.04
- 0.700
- 80.1
- 84.5
- 3,524
- 0.0
- 1.12
- 100 %
- 1.29
- 0.933
- 80.3
- 90.8
- 3,495
- 75.0
- 1.51
- 115 %
- 1.55
- 1.070
- 80.3
- 86.6
- 3,455
- 0.0
- 1.75
- 150 %
- 1.90
- 1.420
- 78.9
- 93.8
- 3,430
- 0.0
- 2.30
