Features
- USDA-approved epoxy painted motors
- NEMA motors
- Rigid base and C face mount types
- BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
- 3-year warranty on encapsulated and premium efficient models
- UL recognized and CSA certified
- Washdown brakemotors and pump motors available
General Specifications

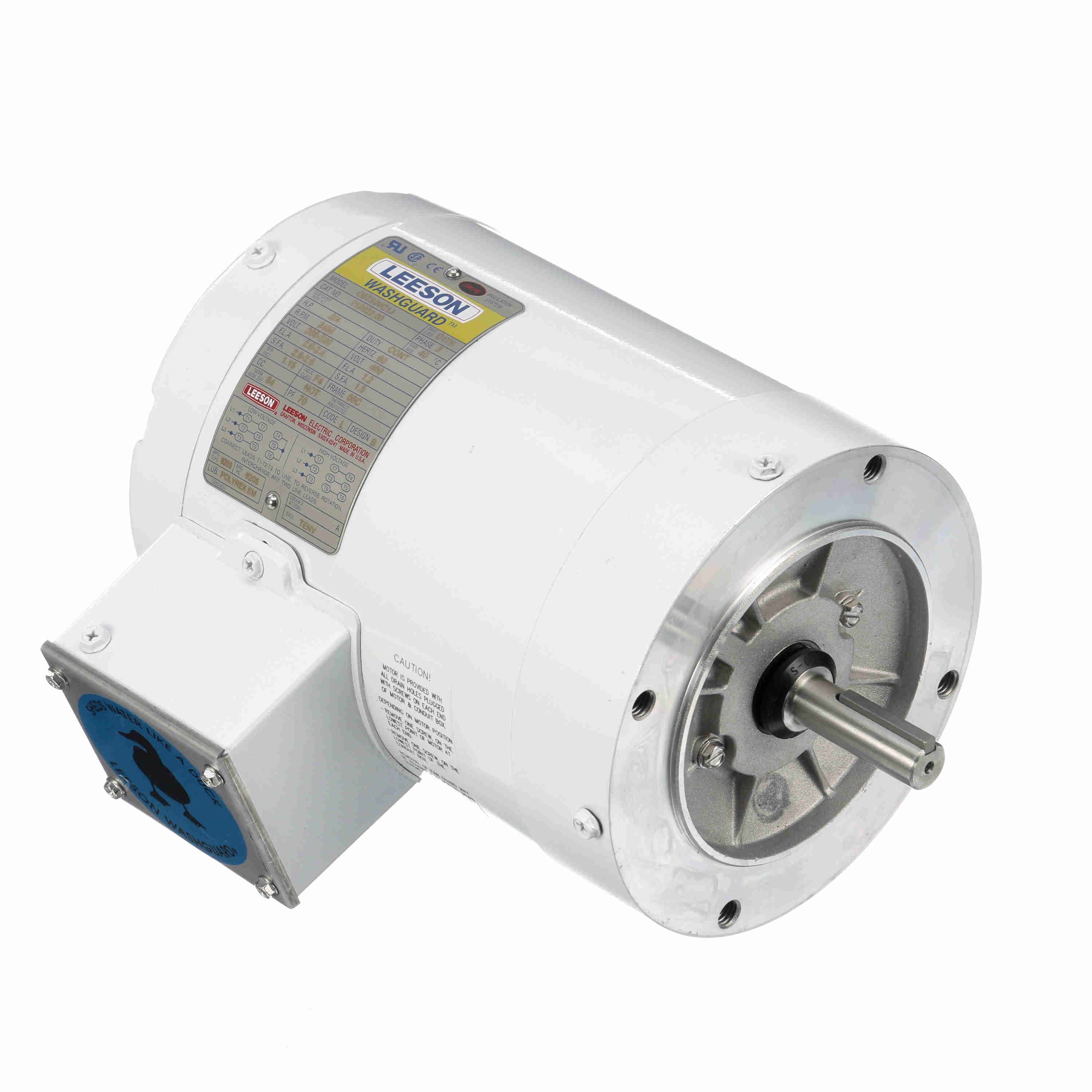

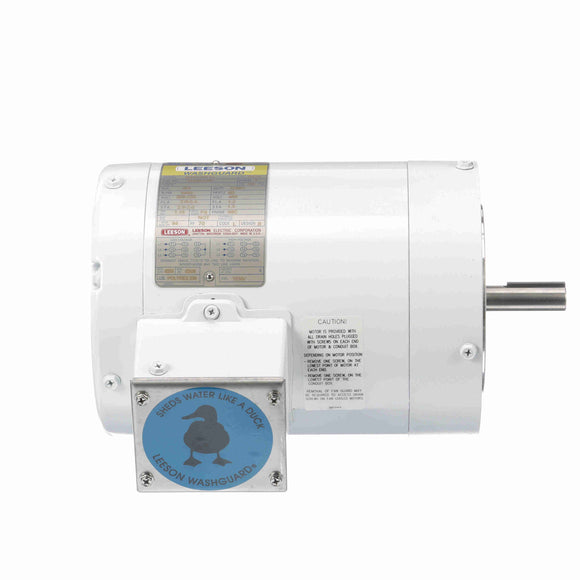

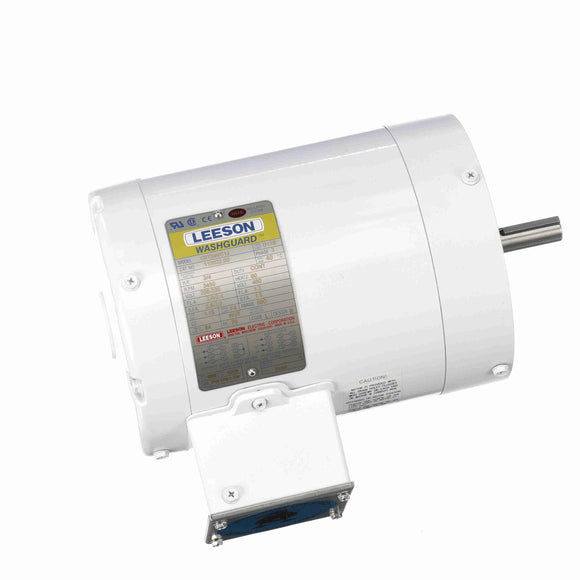

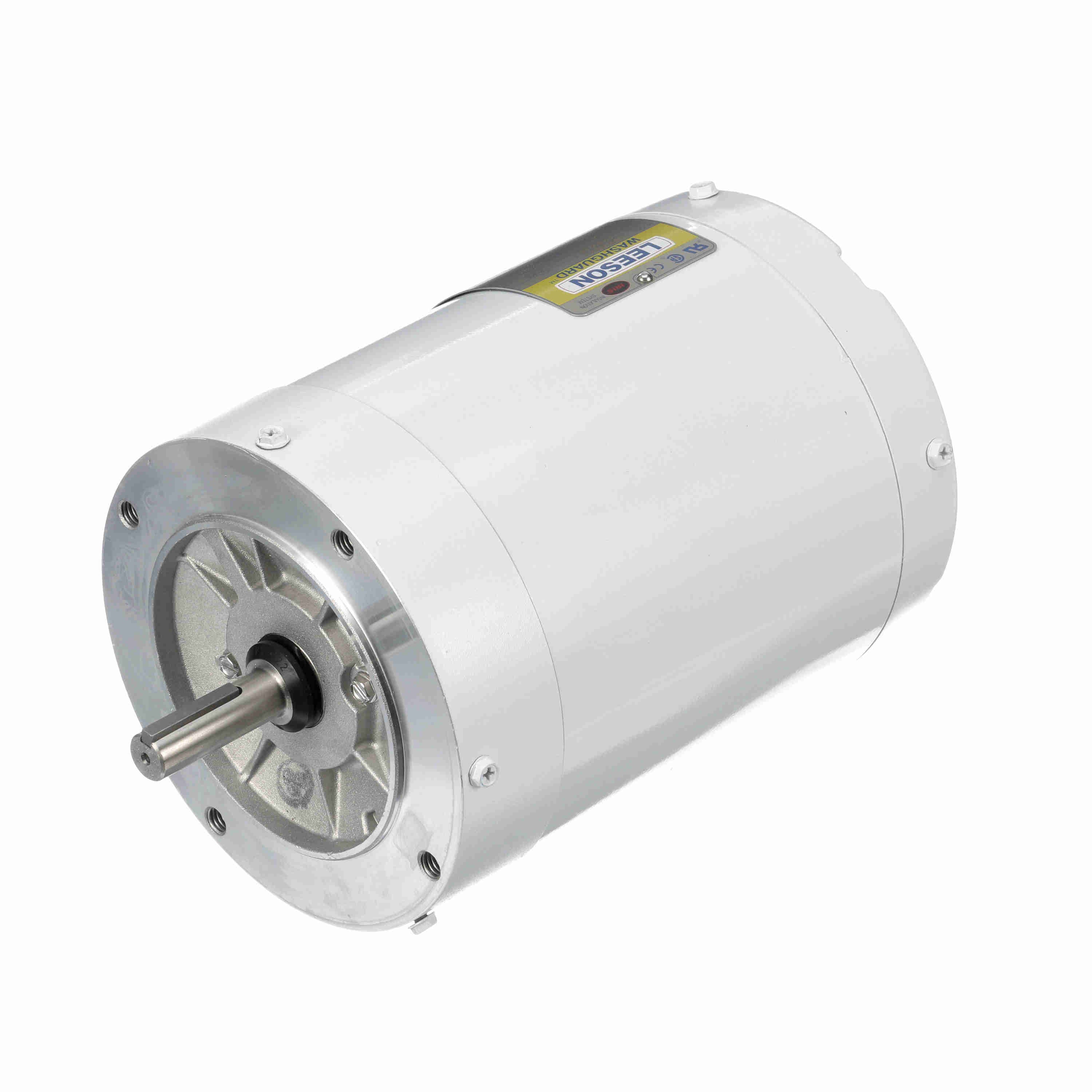

| Model : | C6T34VC1J | Catalog No : | 113022.00 |
| Part Description : | ..3/4HP..3450RPM.56.TENV.208-230/460V.3PH.60HZ.CONT.40C.1.15SF.C FACE.C6T34VC1J.....WASHGUARD.NOT....... | Category : | General Purpose |
| Stock : | No |
Nameplate Specifications
| Output HP : | 0.75 Hp | Output KW : | 0.56 kW |
| Frequency : | 60 Hz | Voltage : | 208-230/460 V |
| Current : | 2.6-2.4/1.2 A | Speed : | 3450 rpm |
| Service Factor : | 1.15 | Phase : | 3 |
| Efficiency : | 84 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | B |
| KVA Code : | L | Frame : | 56C |
| Enclosure : | Totally Enclosed Non Ventilated | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6205 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 55 |
Technical Specifications
| Electrical Type : | Squirrel Cage Induction Run | Starting Method : | Across The Line |
| Poles : | 2 | Rotation : | Reversible |
| Mounting : | Round | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Rolled Steel | Shaft Type : | NEMA 56 |
| Overall Length : | 11.06 in | Frame Length : | 6.00 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 1.88 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720011676 |
| Weight : | 31.00 LB |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Break-Down | 6.00 | 0.0 | 72.23 | 0.0 | 2,500 | 3.80 | 0.0 | 0.75 |
| Locked-Rotor | 8.80 | 0.0 | 57.04 | 0.0 | 0 | 4.50 | 0.0 | 0.75 |
| Full Load | 1.13 | 0.0 | 18.11 | 0.0 | 3,487 | 0.77 | 0.0 | 0.75 |
| Pull-Up | 8.60 | 0.0 | 54.79 | 0.0 | 243 | 4.50 | 0.0 | 0.75 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. rise @ FL
- Torque (ft-lb)
- 0 %
- 0.58
- 0.230
- 0.0
- 49.8
- 3,598
- 0.0
- 0.00
- 25 %
- 0.63
- 0.306
- 46.4
- 61.0
- 3,555
- 0.0
- 4.50
- 50 %
- 0.78
- 0.459
- 60.8
- 73.9
- 3,531
- 0.0
- 8.90
- 75 %
- 0.97
- 0.629
- 66.7
- 81.4
- 3,501
- 0.0
- 13.50
- 100 %
- 1.19
- 0.780
- 70.5
- 84.0
- 3,470
- 80.0
- 18.20
- 125 %
- 1.40
- 0.980
- 71.6
- 87.9
- 3,437
- 0.0
- 23.00
- 150 %
- 1.64
- 1.166
- 72.0
- 89.2
- 3,401
- 0.0
- 27.80
