Features
- USDA-approved epoxy painted motors
- NEMA motors
- Rigid base and C face mount types
- BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
- 3-year warranty on encapsulated and premium efficient models
- UL recognized and CSA certified
- Washdown brakemotors and pump motors available
General Specifications

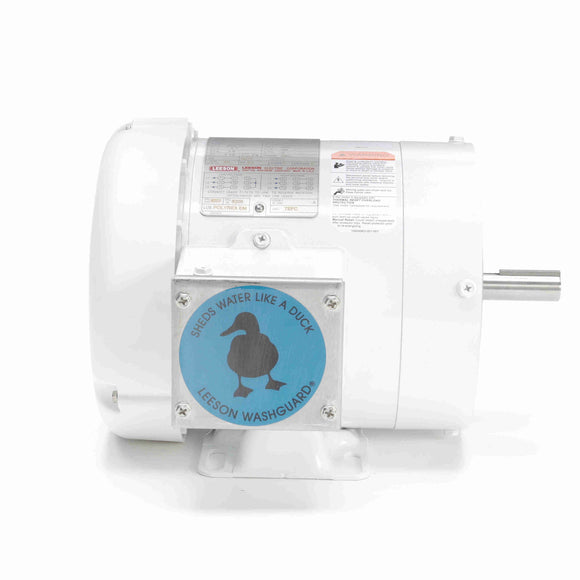

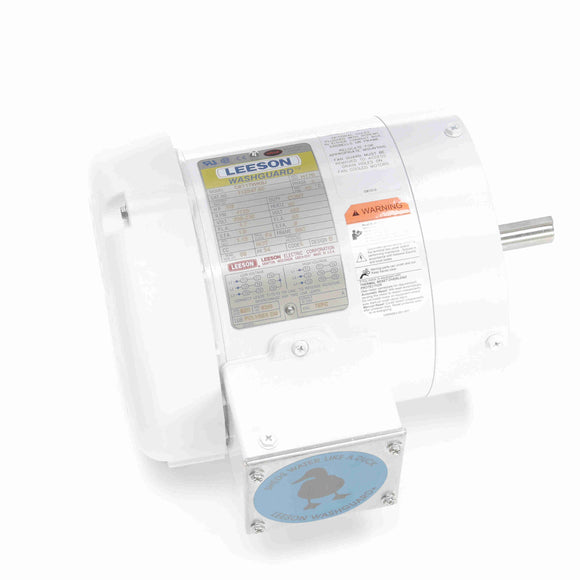

| Model : | C6T17WK9J | Catalog No : | 112547.00 |
| Part Description : | 1/3HP..1725RPM.56.TEFC.208-230/460V.3PH.60HZ.CONT.NOT.40C.1.15SF.RIGID C.WASHGUARD.C6T17WK9J | Category : | General Purpose |
| Stock : | No |
Nameplate Specifications
| Output HP : | 0.33 Hp | Output KW : | 0.25 kW |
| Frequency : | 60 Hz | Voltage : | 208-230/460 V |
| Current : | 1.5-1.7/0.85 A | Speed : | 1725 rpm |
| Service Factor : | 1.15 | Phase : | 3 |
| Efficiency : | 68 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | B |
| KVA Code : | L | Frame : | 56C |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6205 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 55 |
Technical Specifications
| Electrical Type : | Squirrel Cage Induction Run | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Reversible |
| Mounting : | Rigid base | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Rolled Steel | Shaft Type : | NEMA 56 |
| Overall Length : | 10.37 in | Frame Length : | 4.50 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 1.88 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720010990 |
| Weight : | 25.00 LB |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Pull-Up | 3.36 | 391.0 | 60.00 | 375.0 | 200 | 2.20 | 0.0 | 0.33 |
| Full Load | 0.86 | 100.0 | 16.00 | 100.0 | 1,738 | 0.39 | 57.4 | 0.33 |
| Locked-Rotor | 3.65 | 424.0 | 46.70 | 292.0 | 0 | 2.21 | 0.0 | 0.33 |
| Break-Down | 2.12 | 247.0 | 80.00 | 500.0 | 1,000 | 1.39 | 0.0 | 0.33 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. rise @ FL
- Torque (ft-lb)
- 0 %
- 0.76
- 0.144
- 0.0
- 23.9
- 1,789
- 0.0
- 0.00
- 25 %
- 0.74
- 0.177
- 35.8
- 29.8
- 1,777
- 0.0
- 4.00
- 50 %
- 0.77
- 0.243
- 51.5
- 39.6
- 1,765
- 0.0
- 8.00
- 75 %
- 0.78
- 0.312
- 59.8
- 50.3
- 1,750
- 0.0
- 12.00
- 100 %
- 0.83
- 0.382
- 64.4
- 57.8
- 1,733
- 37.0
- 16.00
- 125 %
- 0.89
- 0.458
- 66.5
- 64.6
- 1,716
- 0.0
- 20.00
- 150 %
- 0.95
- 0.533
- 67.8
- 70.1
- 1,698
- 0.0
- 24.00
- 175 %
- 1.04
- 0.617
- 67.5
- 74.5
- 1,676
- 0.0
- 28.00
- 200 %
- 1.12
- 0.695
- 67.5
- 78.1
- 1,653
- 0.0
- 32.00
