Features
- USDA-approved epoxy painted motors
- NEMA motors
- Rigid base and C face mount types
- BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
- 3-year warranty on encapsulated and premium efficient models
- UL recognized and CSA certified
- Washdown brakemotors and pump motors available
- UL recognized and CSA certified
General Specifications

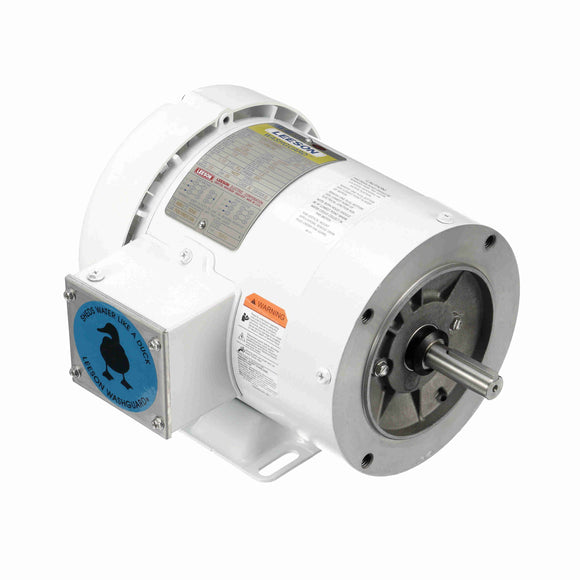

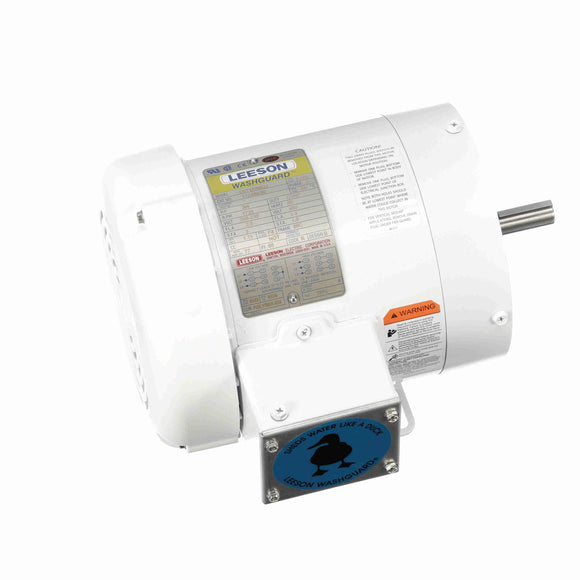

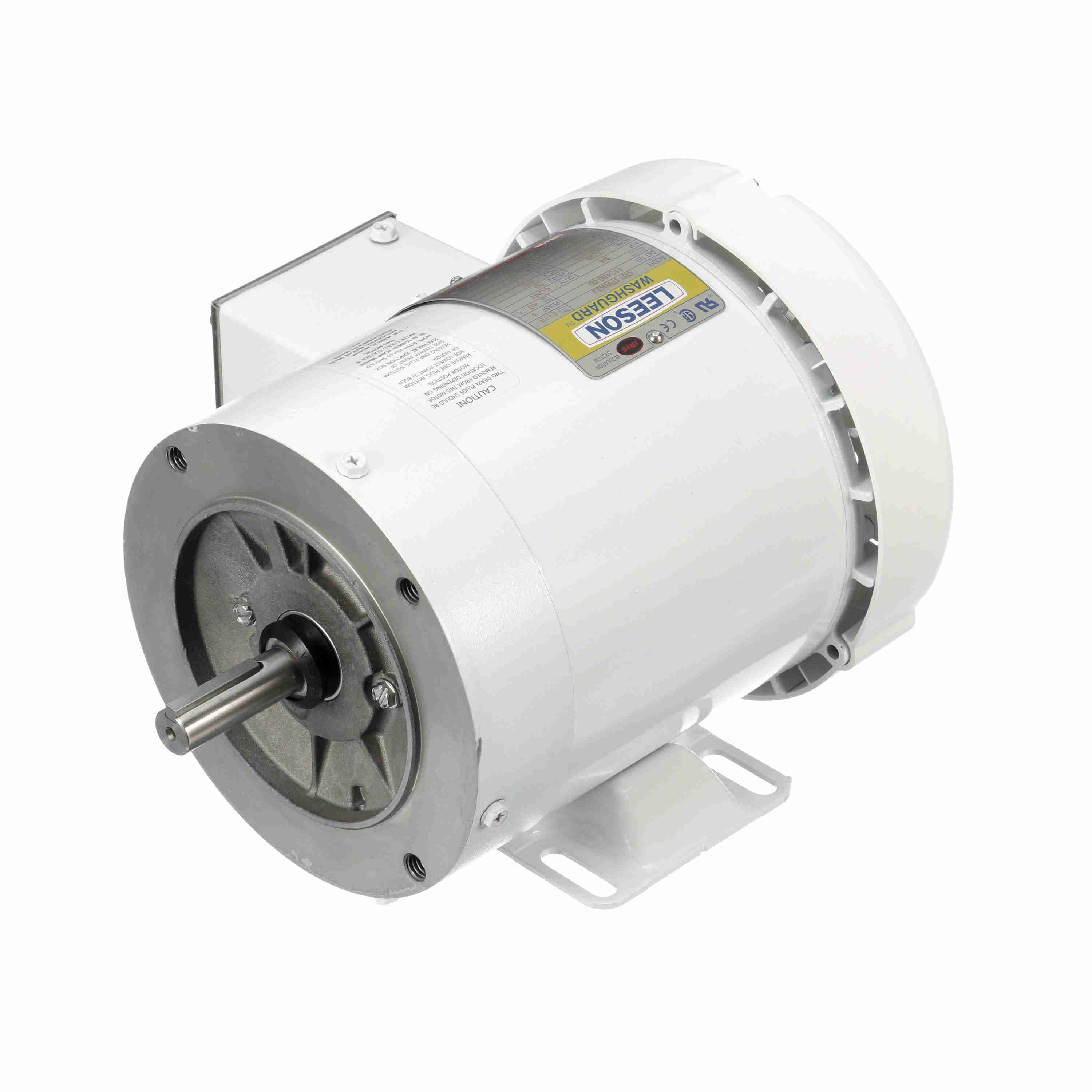

| Model : | C6T17WK2J | Catalog No : | 112430.00 |
| Part Description : | 3/4HP..1725RPM.56.TEFC.208-230/460V.3PH.60HZ.CONT.NOT.40C.1.15SF.RIGID C.WASHGUARD.C6T17WK2J | Category : | General Purpose |
| Stock : | No |
Nameplate Specifications
| Output HP : | 0.75 Hp | Output KW : | 0.56 kW |
| Frequency : | 60 Hz | Voltage : | 208-230/460 V |
| Current : | 2.7-2.8/1.4 A | Speed : | 1725 rpm |
| Service Factor : | 1.15 | Phase : | 3 |
| Efficiency : | 77 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | B |
| KVA Code : | K | Frame : | 56C |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6205 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 55 |
Technical Specifications
| Electrical Type : | Squirrel Cage Induction Run | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Reversible |
| Mounting : | Rigid base | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Rolled Steel | Shaft Type : | NEMA 56 |
| Overall Length : | 10.87 in | Frame Length : | 5.00 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 1.88 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720010815 |
| Weight : | 29.00 LB |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Break-Down | 0.00 | 134.00 | 372.0 | 0 | 0.75 | |||
| Pull-Up | 0.00 | 103.00 | 286.0 | 0 | 0.75 | |||
| Full Load | 1.40 | 36.00 | 100.0 | 1,746 | 0.75 | |||
| Locked-Rotor | 8.10 | 106.00 | 294.0 | 0 | 0.75 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. rise @ FL
- Torque (ft-lb)
- 0 %
- 1.10
- 0.114
- 0.0
- 13.0
- 1,798
- 0.0
- 0.00
- 25 %
- 1.14
- 0.260
- 54.9
- 28.6
- 1,787
- 0.0
- 9.00
- 50 %
- 1.19
- 0.403
- 70.4
- 42.5
- 1,774
- 0.0
- 18.00
- 75 %
- 1.28
- 0.558
- 75.6
- 54.7
- 1,760
- 0.0
- 27.00
- 100 %
- 1.39
- 0.721
- 77.4
- 65.1
- 1,746
- 60.0
- 36.00
- 125 %
- 1.56
- 0.871
- 79.4
- 70.1
- 1,730
- 0.0
- 45.00
- 150 %
- 1.77
- 1.076
- 76.3
- 76.3
- 1,711
- 0.0
- 54.00
