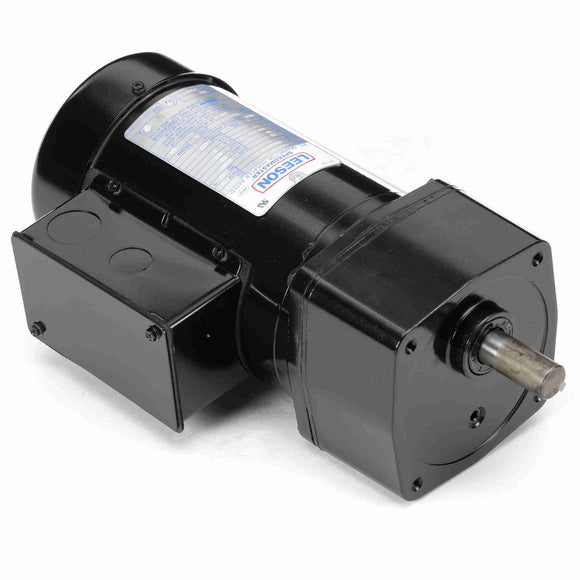

096066.00 Leeson 1/4HP AC Electric Gearmotor, 29RPM

$767.22

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 096066.00 Barcode: 691720346464

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • Designed with the exclusive Inverter Rated Insulation System (IRIS)
  • Provides superior protection against voltage spikes induced by variable frequency drives
  • Double shielded motor ball bearings
  • Needle bearings in the parallel shaft gearboxes
  • Steel conduit box provided as Standard
  • Finished in high gloss hardened black enamel paint

General Specifications

UPC: 691720346464 Weight: 27.00 LB
Packaged Length: 19.5 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 0.25 Hp Output KW: 0.19 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 1.2/0.60 A Speed: 29 rpm
Service Factor: 1 Phase: 3
Duty: Continuous Insulation Class: F
KVA Code: L Frame: 42Y
Enclosure: Totally Enclosed Fan Cooled Thermal Protection: No
Ambient Temperature: 40 °C Drive End Bearing Size: 6203
Opp Drive End Bearing Size: 6201 UL: Recognized
CSA: Y CE: N

Technical Specifications

Rotation: Reversible Mounting: Special
Shaft Type: Parallel Overall Length: 13.07 in
Frame Length: 6.00 in Shaft Diameter: 0.750 in
Shaft Extension: 1.625 in
