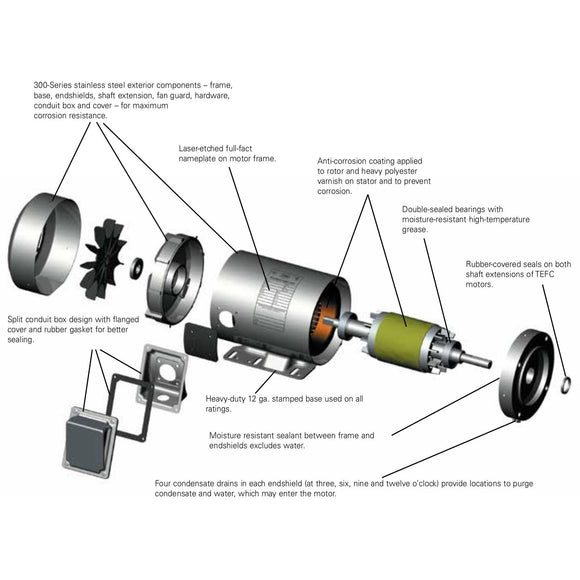

194006.00 10HP Leeson Electric SS Motor, Washdown-1

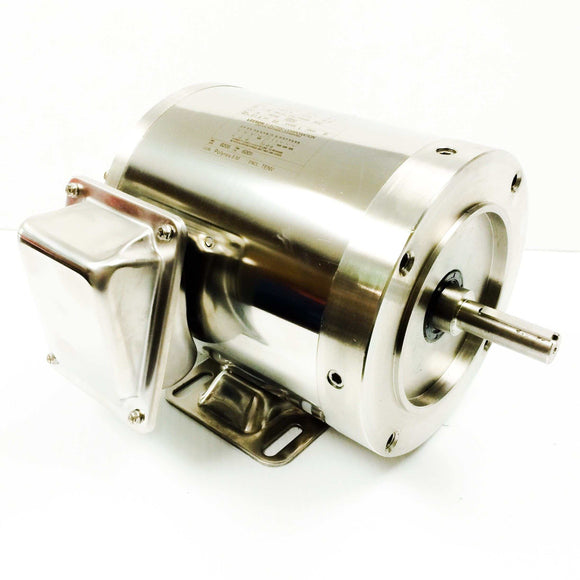

194006.00 10HP Leeson Electric SS Motor, Washdown-2

194006.00 10HP Leeson Electric SS Motor, Washdown

$3,256.00 USD $8,390.00 USD Save $5,134.00 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 194006.00 Barcode: 691720052747

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Product Features
Catalog No 194006.00 Model C215T34WK16A
Product type AC MOTOR Stock Stock
Description ..10HP..3600RPM.215TC.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15S.F..RIGID C FACE......STAINLESS WASHDOWN.NOT.......
Information shown is for current motor's design
 Engineering Data
Volts 230 Volts 460 Volts 190/380
F.L. Amps 22.8 F.L. Amps 11.4 F.L. Amps 20.8/10.4
S. F Amps 26 S. F Amps 13 S. F Amps 24/12
RPM 3600 Hertz 60
HP 10 Duty CONTINUOUS TYPE TF
KW 7.5
Frame 215TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 90.2 Eff 75% PF 89
UL Yes CSA Yes Bearing OPE 6306
CC Number CC005A CE Yes Bearing PE 6306
Load Type Inverter Type Speed Range NONE
RPM 3000 Hertz 50
HP 7 1/2 Duty CONTINUOUS TYPE TF
KW 5.6
Frame 215TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 91 Eff 75% PF 91
UL Yes CSA Yes Bearing OPE 6306
CC Number CC005A CE Yes Bearing PE 6306
Load Type Inverter Type Speed Range NONE
Motor Wt. 176 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate NP210TCSST Mounting RIGID Rotation REV
Assembly Shaft Dia. 1 3/8 IN Ext. Diag. 005010.01
Cust Part No Outline OL210TCSST Ext. Diag2
Packaging INDIVIDUAL Winding QT2103
Carton Label     GROUP: 3
Iris Paint NO PAINT Test Card
Form Factor   RMS Amps   Const Torque Speed Range
Torque   Peak
AB Code   Peak@DegC
Resistance
Connection
Rework Status   Rework TYPE
Hazardous Loc NONE  Brake Motors
Explosion Proof   Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
        Brake Coil OHMs @25 C
Performance
Torque UOM LB-FT Inertia (WK²) 0
Torque 14.8(Full Load) 42.3(Break Down) 18.8(Pull Up) 23.4(Locked Rotor)
CURRENT (amps) 11.2(Full Load) 0(Break Down) 0(Pull Up) 79(Locked Rotor)
Efficiency (%) 0(Full Load) 91.9(75% Load) 92.3(50% Load) 89.4(25% Load)
PowerFactor 0(Full Load) 87.9(75% Load) 82.3(50% Load) 64.5(25% Load)
Speed Torque Curve @ 60 Hz, 460 Volts
Curve Point Amps Amps(%) Torque Torque(%) RPM KW PF HP
FL 11.2 100.0 14.8 100.0 0.0 - - 10.0
LR 79.0 705.0 23.4 158.0 0.0 - - 10.0
BD - - 42.3 286.0 0.0 - - 10.0
PU - - 18.8 127.0 0.0 - - 10.0
SOURCE: CALCULATED GROUP: 3
Speed Torque Curve @ 50 Hz, 380 Volts
Curve Point Amps Amps(%) Torque Torque(%) RPM KW PF HP
FL 10.2 100.0 13.3 100.0 0.0 0.0 0.0 7.5
LR 74.0 725.0 24.3 183.0 0.0 0.0 0.0 7.5
BD - 0.0 43.1 324.0 0.0 0.0 0.0 7.5
PU - 0.0 22.4 168.0 0.0 0.0 0.0 7.5
SOURCE: DATABASE GROUP: 3
Load Curve Data @60/50 Hz, 460 Volts, 10 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise
0.0 3.1 0.397 3598 0.0 0.0 16.1 0.0 -
0.25 4.1 2.108 3584 3.7 89.4 64.5 0.0 -
0.5 6.2 4.064 3568 7.4 92.3 82.3 0.0 -
0.75 8.7 6.093 3550 11.1 91.9 87.9 0.0 -
1.0 11.5 8.212 3530 14.9 91.0 89.6 71.0 -
1.25 14.4 10.39 3509 18.7 89.7 90.6 0.0 -
1.5 17.7 12.69 3484 22.7 88.5 90.0 0.0 -
1.15 13.1 9.478 3518 17.2 90.7 90.8 0.0 -
SOURCE: CALCULATED GROUP: 3
