191209.00 1HP Leeson Electric SS Motor, Washdown-1
191209.00 1HP Leeson Electric SS Motor, Washdown-2
191209.00 1HP Leeson Electric SS Motor, Washdown-3
191209.00 1HP Leeson Electric SS Motor, Washdown-4
191209.00 1HP Leeson Electric SS Motor, Washdown-5

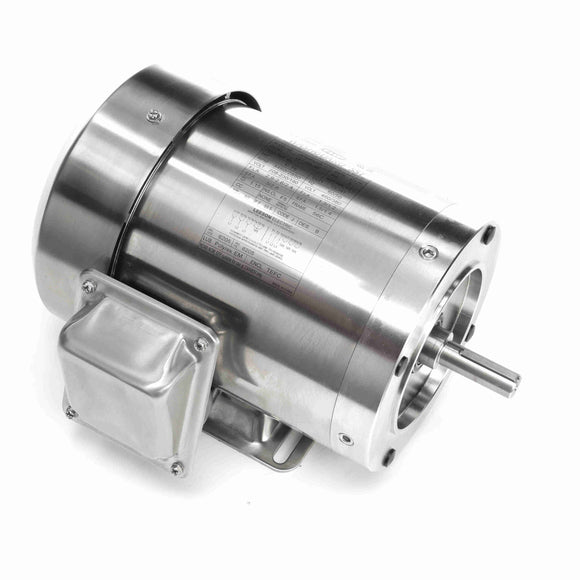

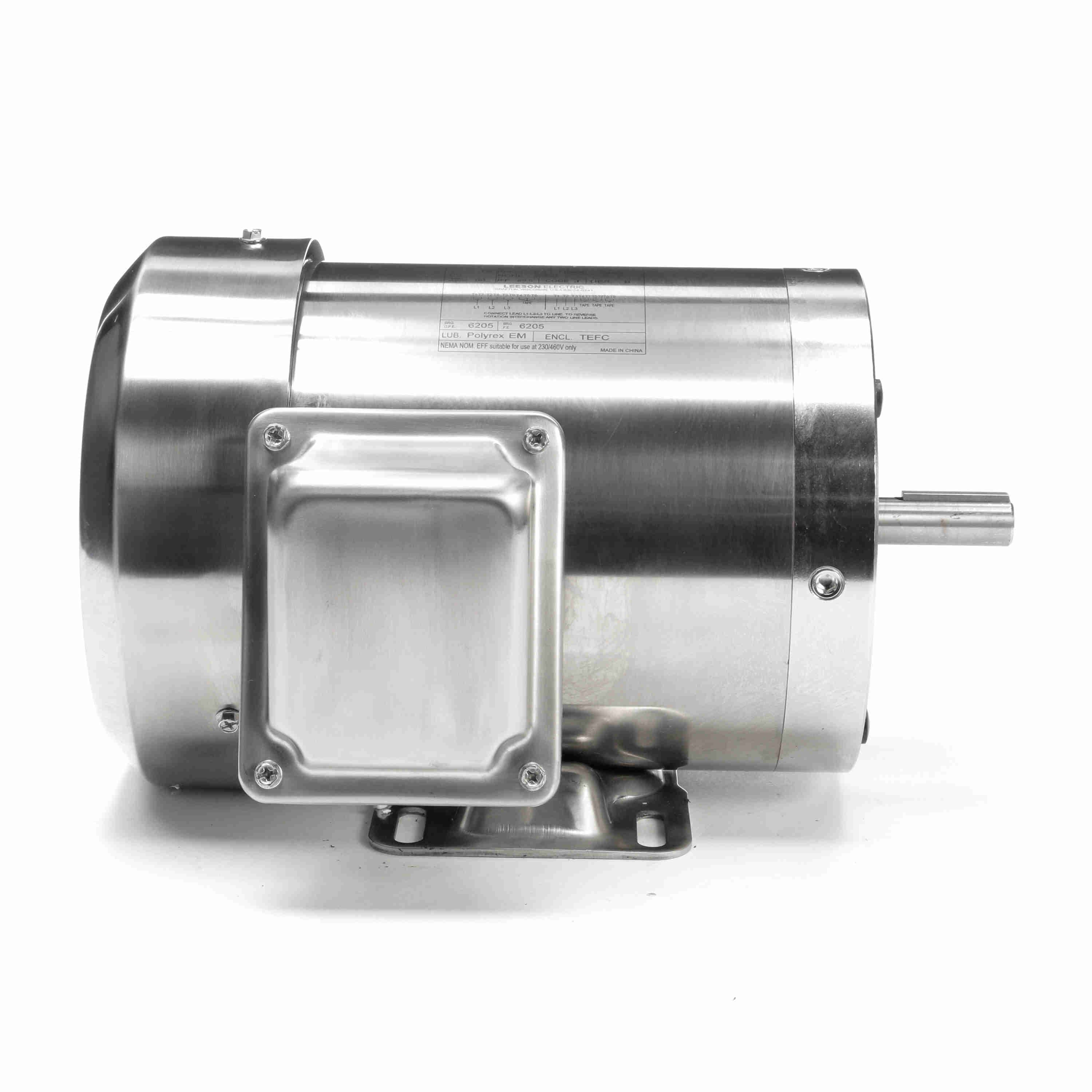

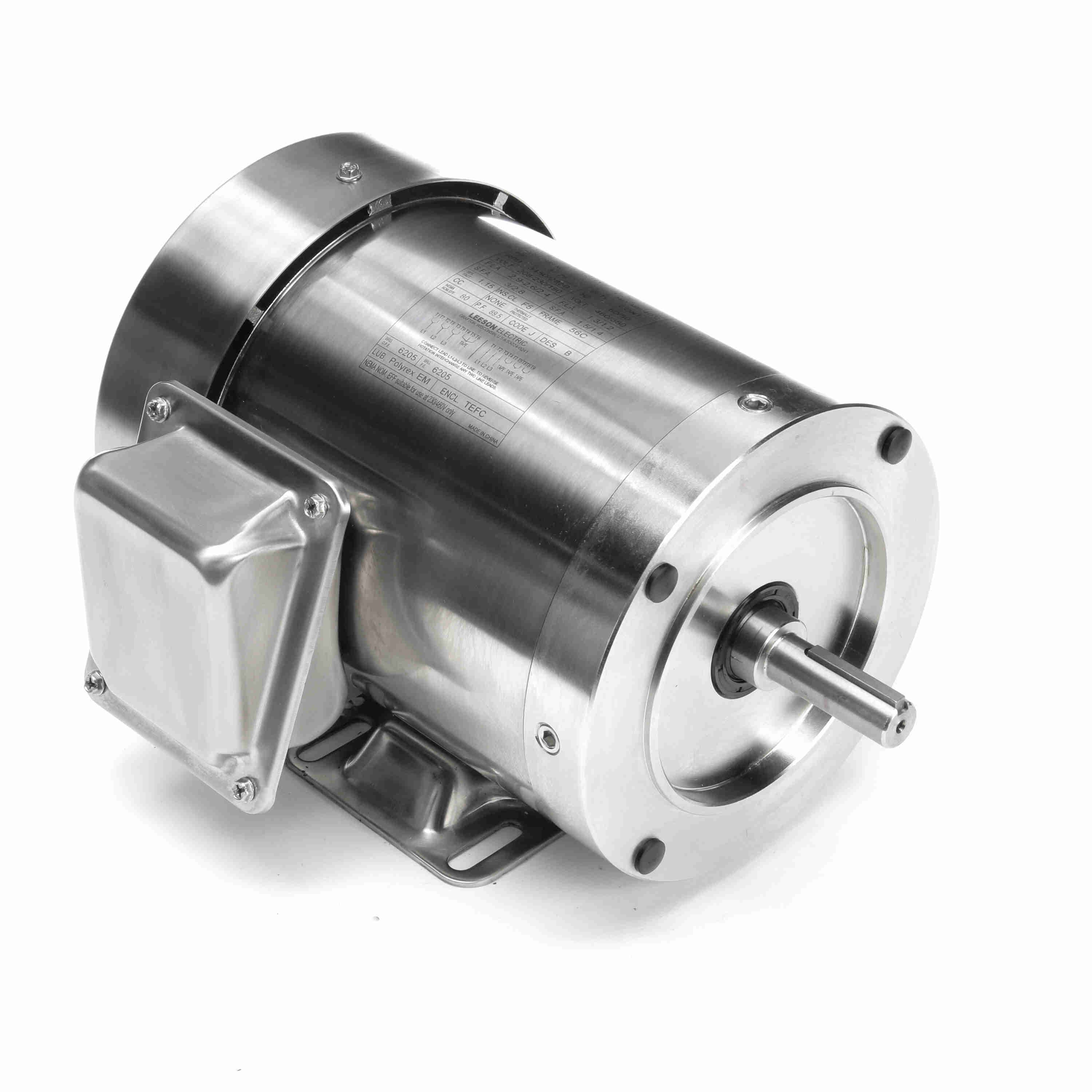

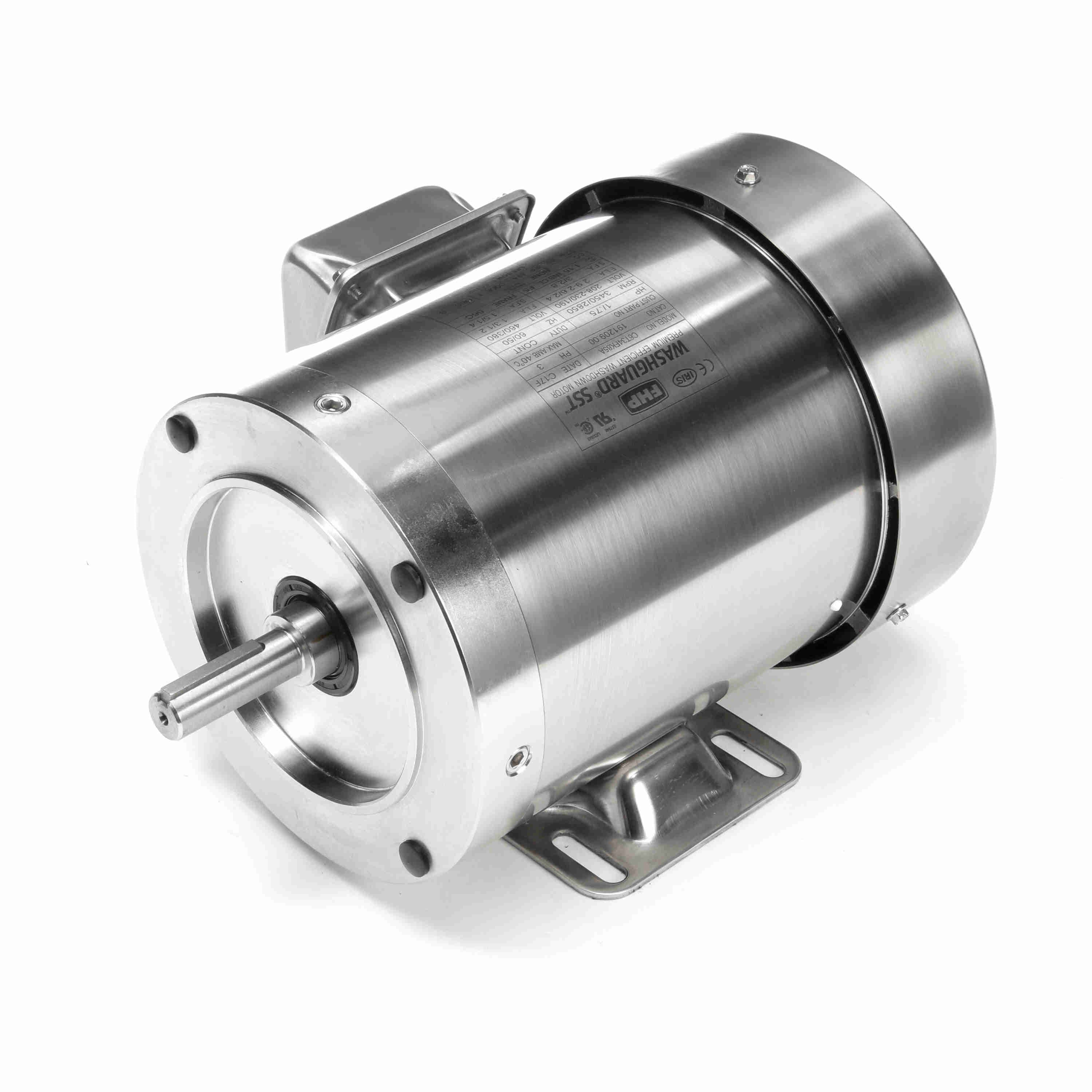

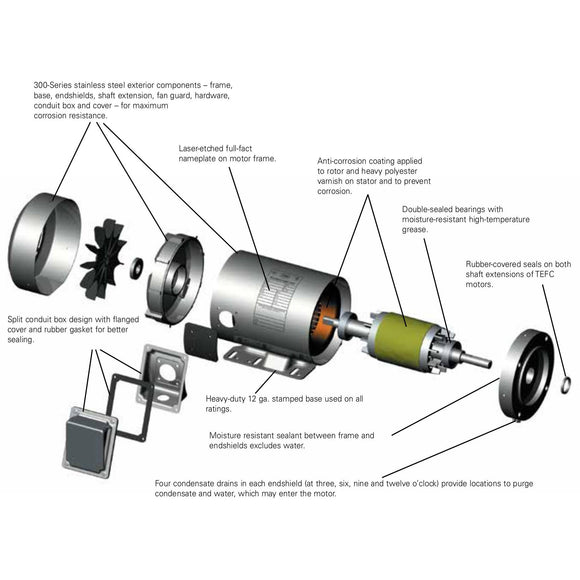

191209.00 1HP Leeson Electric SS Motor, Washdown

$900.97 $2,618.00 Save $1,717.03

Shipping calculated at checkout

Witmer Motor Service SKU: 191209.00 Barcode: 691720308226

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Product Features


Catalog No 191209.00 Model C6T34FK85A
Product type AC MOTOR Stock Stock
Description 1HP..3450RPM.56HC.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID C.C6T34FK85A.....WASHGUARD-ALL STAINLESS.NOT.......
Information shown is for current motor's design
 Engineering Data
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 2.9-2.6 F.L. Amps 1.3 F.L. Amps 2.4/1.2
S. F Amps 3 S. F Amps 1.5 S. F Amps 2.8/1.4
RPM 3600 Hertz 60
HP 1 Duty CONTINUOUS TYPE TF
KW 0.75
Frame 56HC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 80 Eff 75% PF 89.5
UL Yes CSA Yes Bearing OPE 6205
CC Number NONE CE Yes Bearing PE 6205
Load Type Inverter Type Speed Range NONE
RPM 3000 Hertz 50
HP .75 Duty CONTINUOUS TYPE TF
KW 0.56
Frame 56HC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% Eff 75% PF
UL Yes CSA Yes Bearing OPE 6205
CC Number NONE CE Yes Bearing PE 6205
Load Type Inverter Type Speed Range NONE
Motor Wt. 41.5 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081123 Mounting RIGID Rotation REV
Assembly Shaft Dia. 5/8 IN Ext. Diag. 005010.01
Cust Part No Outline 16992800 Ext. Diag2
Packaging B Winding QT6327
Carton Label     GROUP: 3
Iris Paint VERIFY Test Card
Form Factor   RMS Amps   Const Torque Speed Range
Torque   Peak
AB Code   Peak@DegC
Resistance
Connection
Rework Status   Rework TYPE
Hazardous Loc NONE  Brake Motors
Explosion Proof   Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
        Brake Coil OHMs @25 C
Performance
Torque UOM OZ-FT Inertia (WK²) .05 LB-FT^2
Torque 24.3(Full Load) 76.3(Break Down) 41(Pull Up) 62(Locked Rotor)
CURRENT (amps) 1.3(Full Load) 0(Break Down) 0(Pull Up) 9.8(Locked Rotor)
Efficiency (%) 0(Full Load) 79.4(75% Load) 68(50% Load) 63.2(25% Load)
PowerFactor 0(Full Load) 84.5(75% Load) 82.7(50% Load) 64.9(25% Load)
Speed Torque Curve @ 60 Hz, 460 Volts
Curve Point Amps Amps(%) Torque Torque(%) RPM KW PF HP
FL 1.3 100.0 24.3 100.0 3456 - - 1.0
BD - - 76.3 314.0 0.0 - - 1.0
PU - - 41.0 169.0 0.0 - - 1.0
LR 9.8 754.0 62.0 255.0 0.0 - - 1.0
SOURCE: CALCULATED GROUP: 3
Speed Torque Curve @ 50 Hz, 380 Volts
Curve Point Amps Amps(%) Torque Torque(%) RPM KW PF HP
FL 1.2 100.0 21.9 100.0 2873 0.0 0.0 0.75
BD - 0.0 70.8 323.0 0.0 0.0 0.0 0.75
PU - 0.0 40.0 183.0 0.0 0.0 0.0 0.75
LR 8.9 742.0 63.0 288.0 0.0 0.0 0.0 0.75
SOURCE: DATABASE GROUP: 3
Load Curve Data @60/50 Hz, 460 Volts, 1 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise
0.0 0.5 0.072 3595 0.0 0.0 18.1 0.0 -
0.25 0.58 0.3 3561 6.0 63.2 64.9 0.0 -
0.5 0.85 0.56 3528 12.15 68.0 82.7 0.0 -
0.75 1.05 0.707 3493 18.1 79.4 84.5 0.0 -
1.0 1.3 0.913 3456 24.3 81.7 88.1 41.0 -
1.25 1.6 1.189 3411 30.8 78.4 93.3 0.0 -
1.5 2.0 1.465 3363 37.5 76.4 91.9 0.0 -
SOURCE: CALCULATED GROUP: 3
