Features
Features

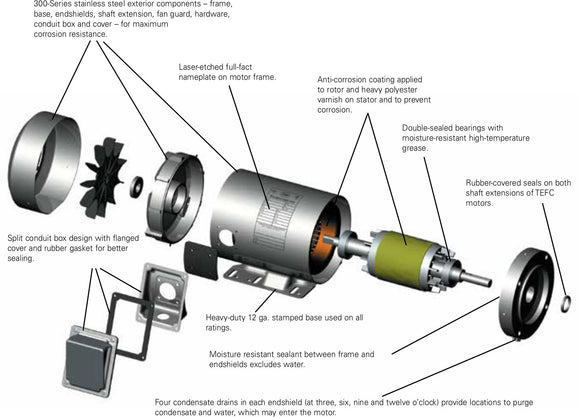

- Paint free exterior
- BISSC certified for the Baking Industry
- Stainless Steel Output shafts
- Repositional drain plugs for all angle mounting
- Double Sealed bearings
- Output shaft seal
- Inverter Duty IRIS™ insulation system
General Specifications
General Specifications
| Model : | C6T17NC329A | Catalog No : | 191205.00 |

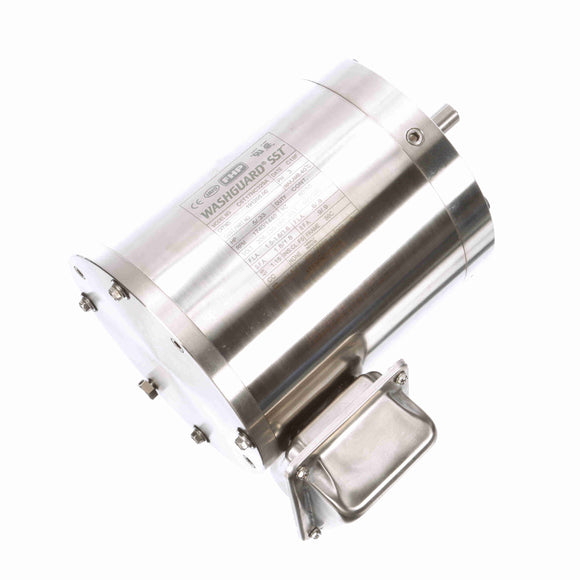

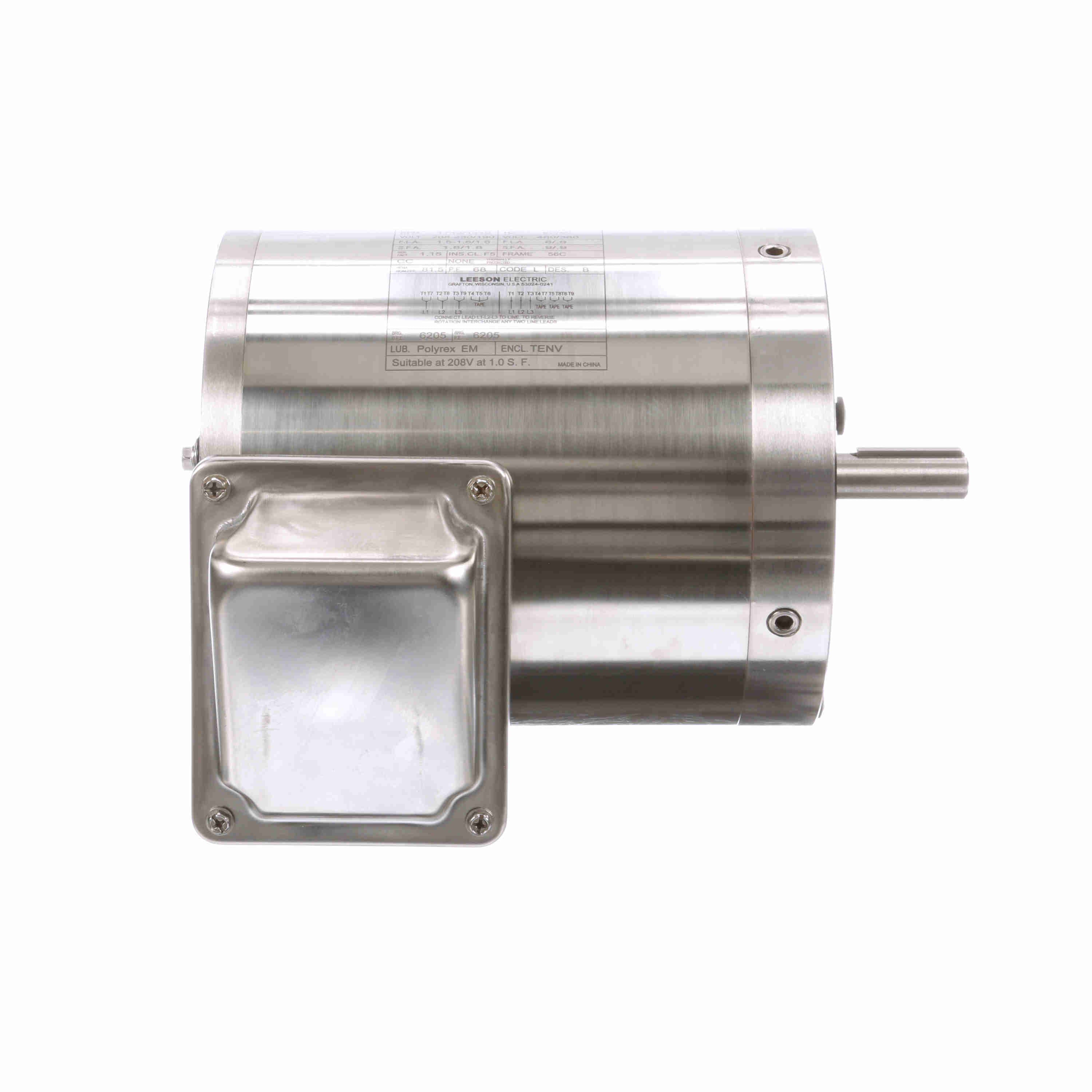

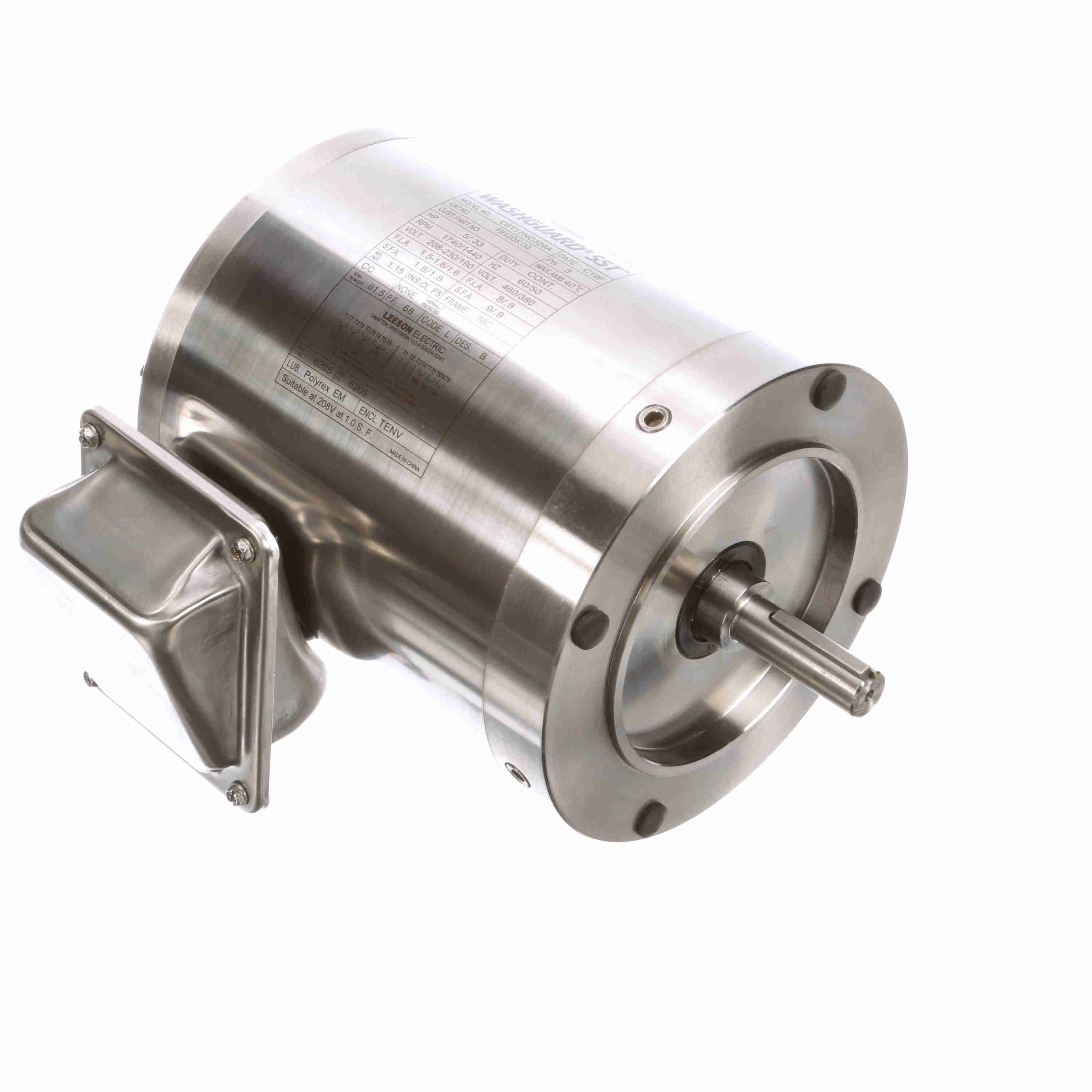

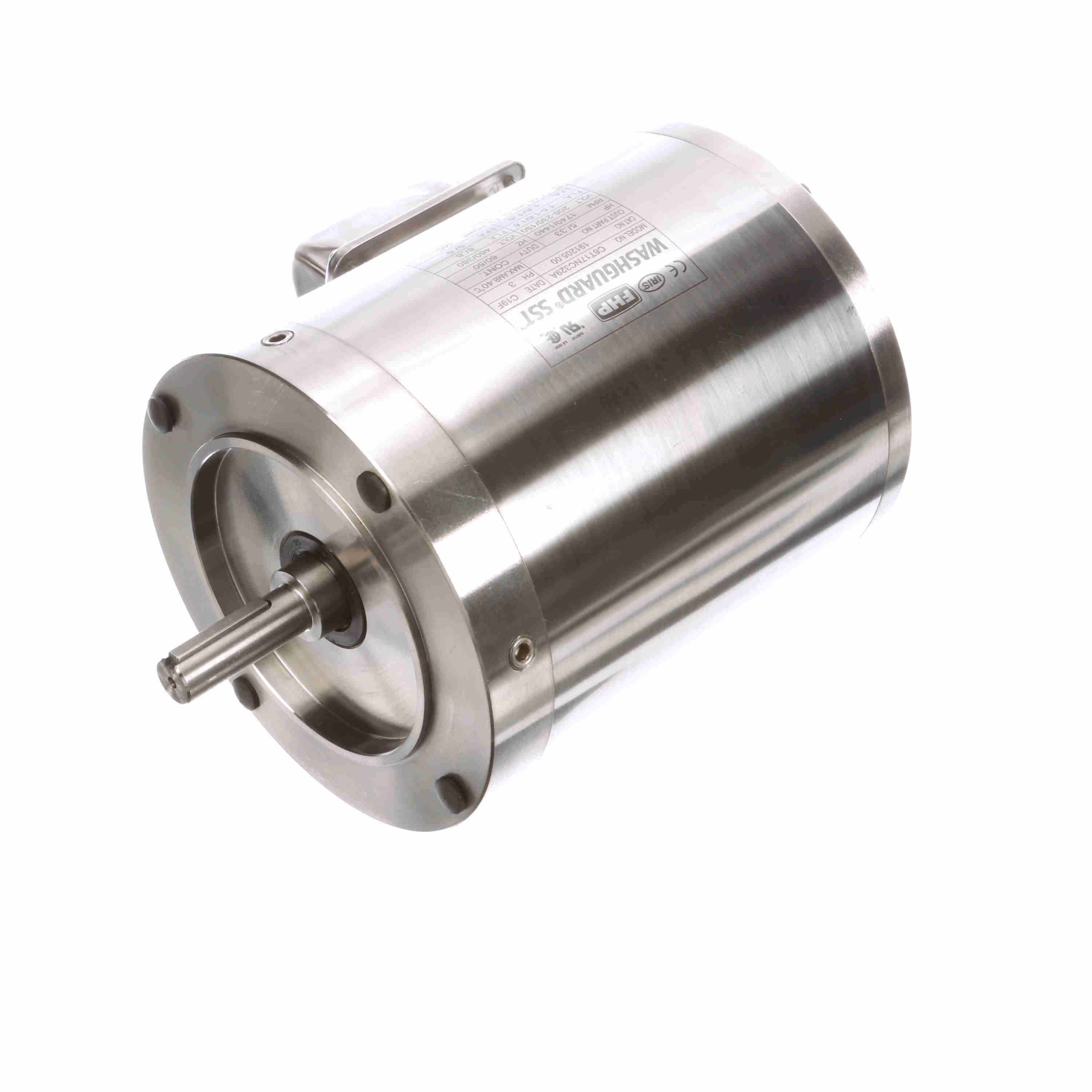

| Part Description : | 1/2HP..1740RPM.56.TENV.208-230/460V.3PH.60HZ.CONT.40C.1.15SF.C FACE.C6T17NC329A.....WASHGUARD-ALL STAINLESS.NOT....... | Category : | Paint Free |
| Stock : | No |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 0.50 Hp | Output KW : | 0.37 kW |
| Frequency : | 60 Hz | Voltage : | 208-230/460 V |
| Current : | 1.5-1.6/0.80 A | Speed : | 1740 rpm |
| Service Factor : | 1.15 | Phase : | 3 |
| Efficiency : | 81.5 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | B |
| KVA Code : | L | Frame : | 56C |
| Enclosure : | Totally Enclosed Non Ventilated | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6205 |
| Opp Drive End Bearing Size : | 6205 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 55 |
Technical Specifications
Technical Specifications
| Electrical Type : | Squirrel Cage Induction Run | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Reversible |
| Mounting : | Round | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Stainless Steel | Shaft Type : | NEMA 56 |
| Overall Length : | 9.78 in | Frame Length : | 9.72 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 1.88 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720308189 |
| Weight : | 33.00 LB |
