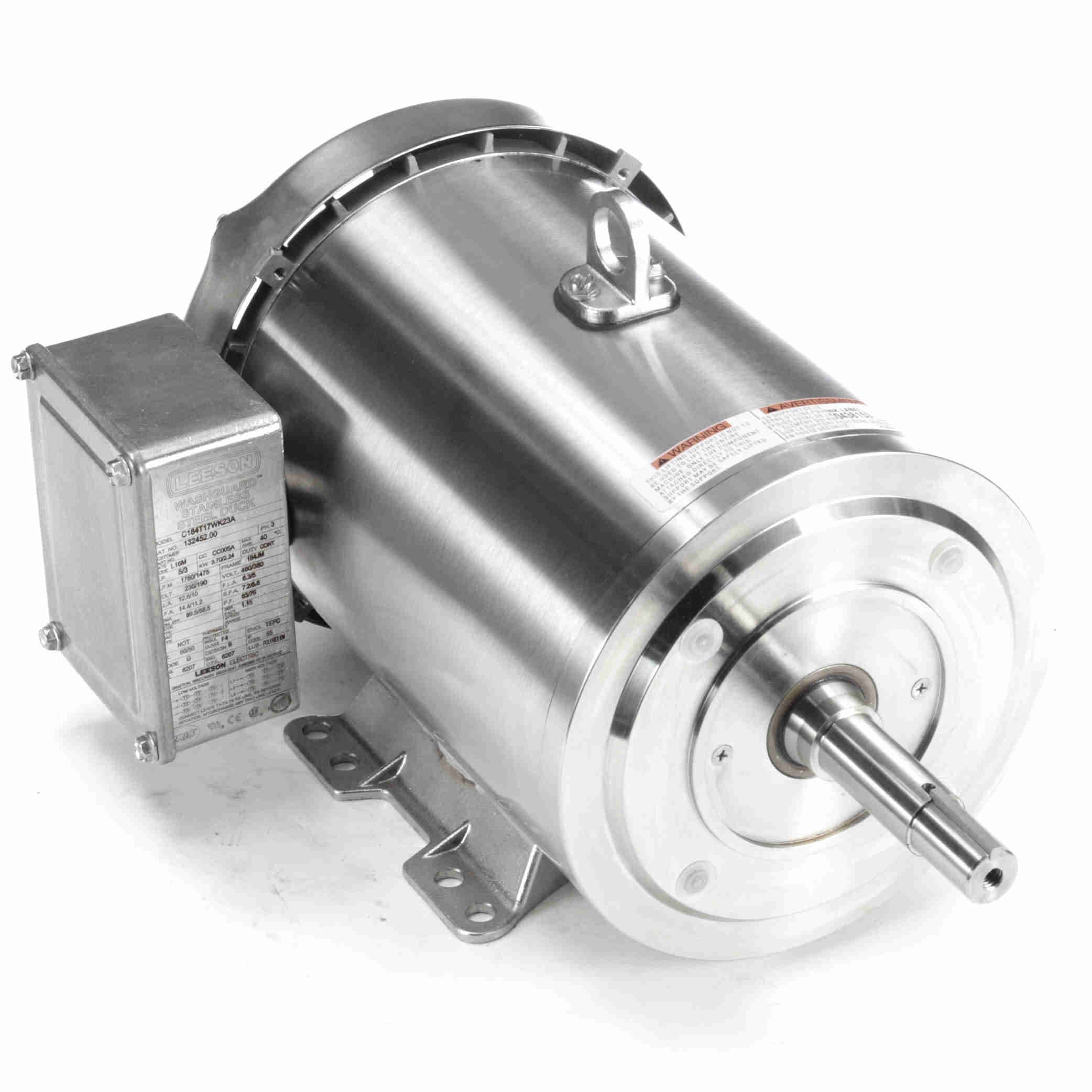

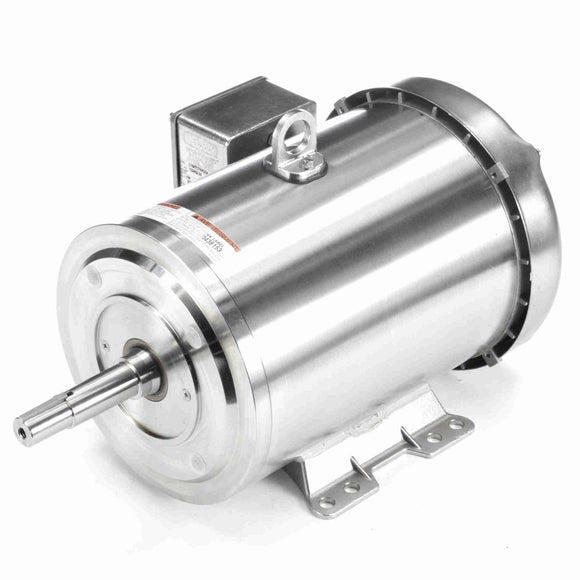

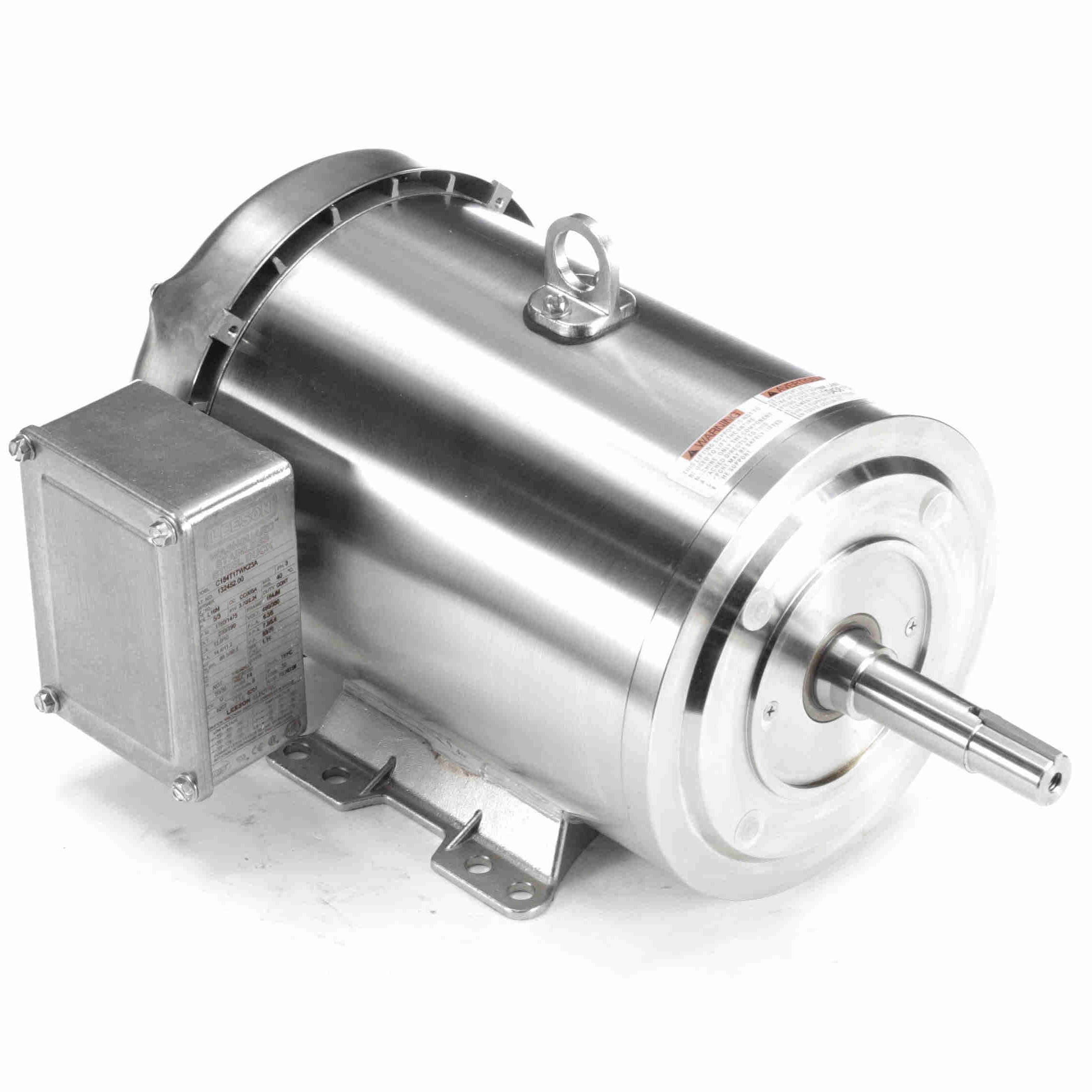

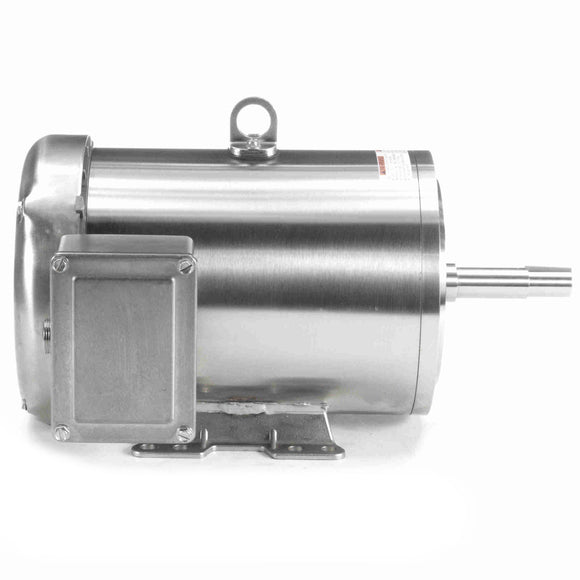

Features
- All exterior components are 300-series stainless steel
- All sealing components are Viton® for superior chemical resistance
- Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
- Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
- Double-sealed bearings are pre-lubricated with moisture-resistant high-temperature grease for long life
- Interior coatings applied to rotor and stator protect against corrosion
- Windings are immersed and cured in polyester insulating varnish for extra moisture-resistance
- Three phase motors are UL component recognized – file number E57948, guide number PRGY2
- Full fact nameplate is laser etched on the motor frame
General Specifications
| UPC: | 691720053188 | Weight: | 100.00 LB |
| Packaged Length: | 17.94 IN | Packaged Width: | 13.06 IN |
| Packaged Height: | 12.88 IN |
Nameplate Specifications
| Output HP: | 5 Hp | Output KW: | 3.7 kW |
| Frequency: | 60 Hz | Voltage: | 230/460 V |
| Current: | 12.6/6.3 A | Speed: | 1760 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Efficiency: | 89.5 % | Power Factor: | 83 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | B | KVA Code: | G |
| Frame: | 184JM | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6207 | Opp Drive End Bearing Size: | 6207 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 56 |
Technical Specifications
| Electrical Type: | Squirrel Cage Inverter Rated | Starting Method: | Line Or Inverter |
| Poles: | 4 | Rotation: | Reversible |
| Resistance Main: | 2.68 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Stainless Steel |
| Shaft Type: | JM | Overall Length: | 17.27 in |
| Frame Length: | 10.00 in | Shaft Diameter: | 0.875 in |
| Shaft Extension: | 4.21 in | Assembly/Box Mounting: | F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Pull-Up | 0.00 | 0.0 | 29.80 | 199.0 | 0 | 0.00 | 0.0 | 5.00 |
| Full Load | 6.30 | 100.0 | 14.96 | 100.0 | 0 | 4.17 | 0.0 | 5.00 |
| Break-Down | 0.00 | 0.0 | 50.20 | 336.0 | 0 | 0.00 | 0.0 | 5.00 |
| Locked-Rotor | 49.00 | 778.0 | 30.10 | 201.0 | 0 | 0.00 | 0.0 | 5.00 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % | 150 % |
| Current (Amps) | 2.40 | 2.80 | 3.72 | 4.90 | 6.30 | 7.20 | 7.80 | 9.46 |
| Rated Output (KW) | 0.13 | 1.09 | 2.10 | 3.10 | 4.17 | 4.83 | 5.30 | 6.49 |
| Efficiency (%) | 0.0 | 85.9 | 88.9 | 90.2 | 89.5 | 89.3 | 88.0 | 86.2 |
| Power Factor (%) | 6.8 | 48.8 | 70.9 | 79.4 | 83.1 | 84.2 | 85.3 | 86.1 |
| Speed (RPM) | 1,798 | 1,790 | 1,779 | 1,768 | 1,760 | 1,747 | 1,742 | 1,727 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 65.0 | 90.0 | 110.0 | 0.0 |
| Torque (ft-lbs) | 0.00 | 3.68 | 7.39 | 11.13 | 14.96 | 17.38 | 18.84 | 22.80 |
