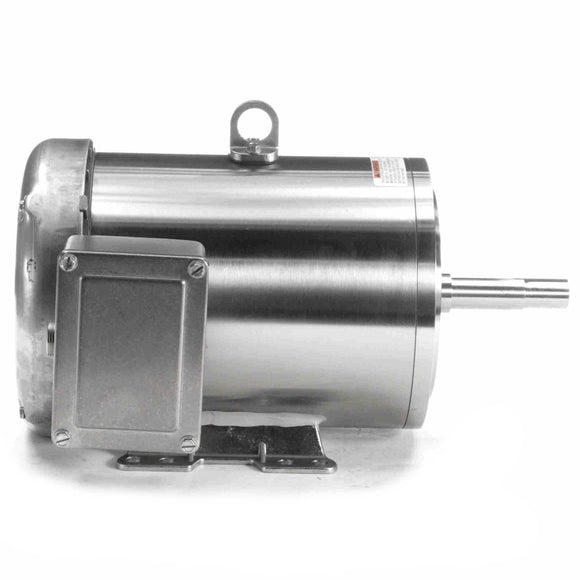

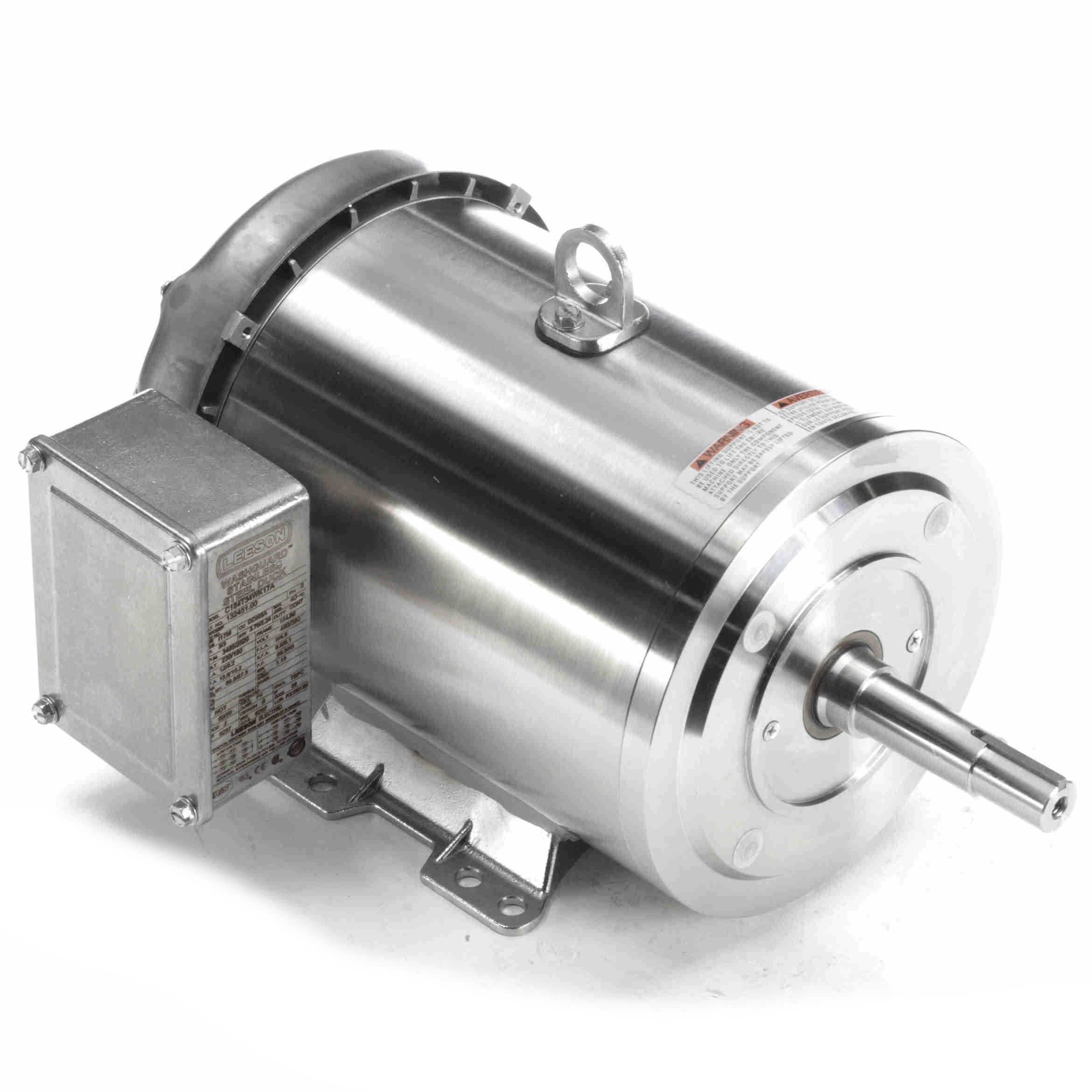

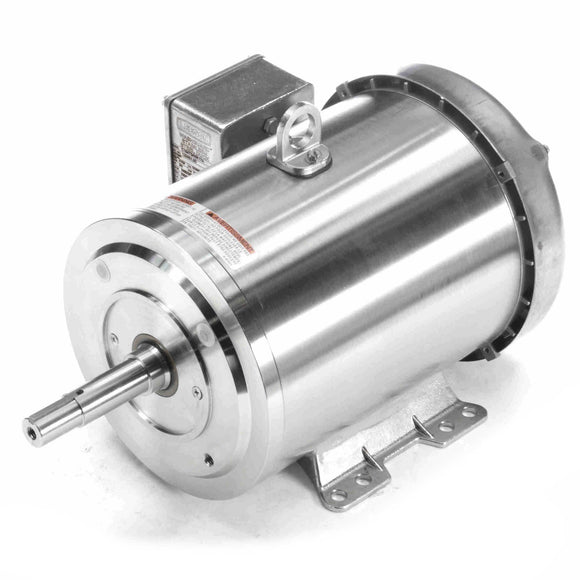

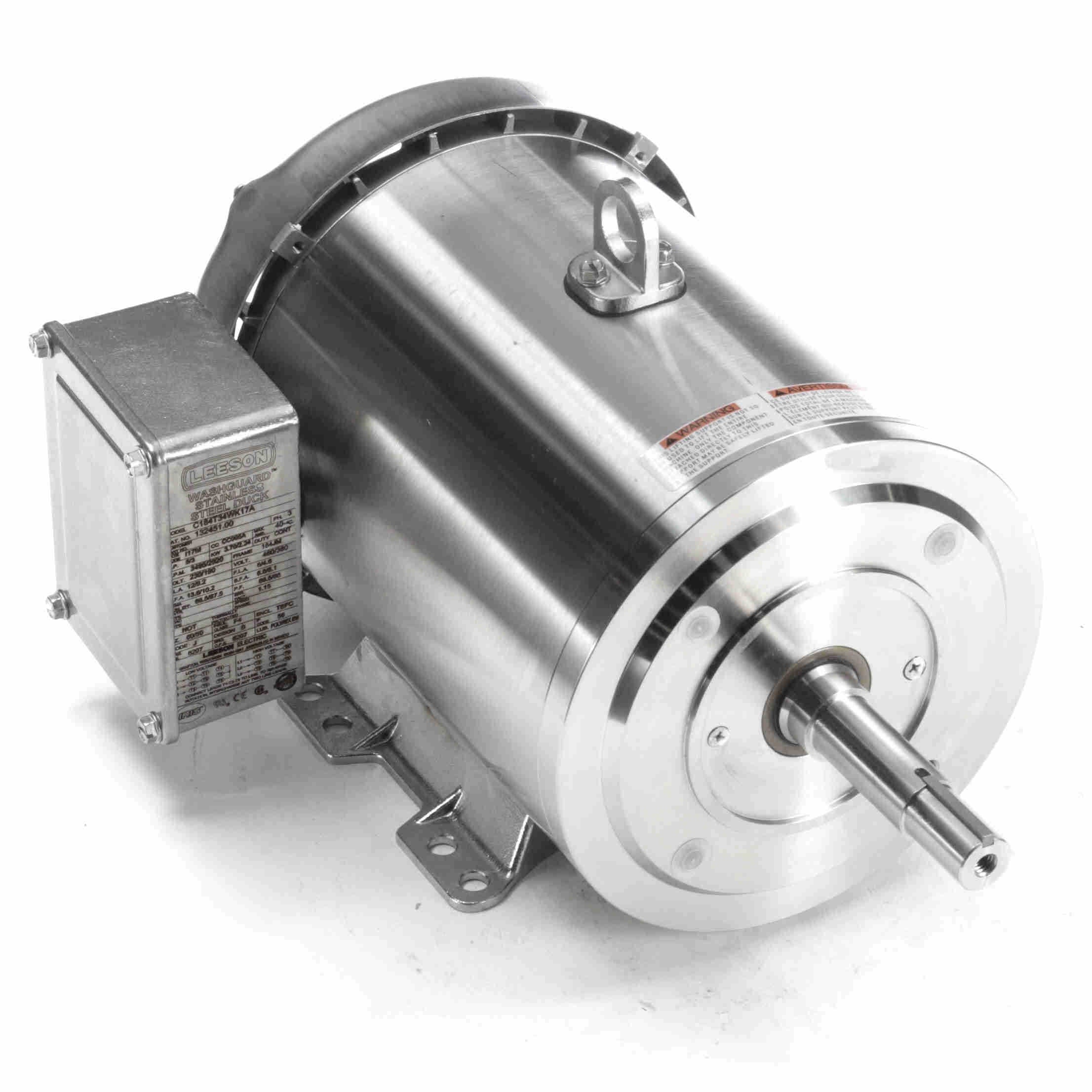

Features
- All exterior components are 300-series stainless steel
- All sealing components are Viton® for superior chemical resistance
- Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
- Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
- Double-sealed bearings are pre-lubricated with moisture-resistant high-temperature grease for long life
- Interior coatings applied to rotor and stator protect against corrosion
- Windings are immersed and cured in polyester insulating varnish for extra moisture-resistance
- Three phase motors are UL component recognized – file number E57948, guide number PRGY2
- Full fact nameplate is laser etched on the motor frame
General Specifications
| UPC: | 691720053171 | Weight: | 99.70 LB |
| Packaged Length: | 17.94 IN | Packaged Width: | 13.06 IN |
| Packaged Height: | 12.88 IN | Country of Origin: | Mexico |
Nameplate Specifications
| Output HP: | 5 Hp | Output KW: | 3.7 kW |
| Frequency: | 60 Hz | Voltage: | 230/460 V |
| Current: | 12.0/6.0 A | Speed: | 3495 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Efficiency: | 88.5 % | Power Factor: | 89.5 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | B | KVA Code: | J |
| Frame: | 184JM | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | No Protection | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6207 | Opp Drive End Bearing Size: | 6207 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 56 |
| Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Squirrel Cage Inverter Rated | Starting Method: | Line Or Inverter |
| Poles: | 2 | Rotation: | Reversible |
| Resistance Main: | 2.32 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Stainless Steel |
| Shaft Type: | JM | Overall Length: | 16.77 in |
| Frame Length: | 9.50 in | Shaft Diameter: | 0.875 in |
| Shaft Extension: | 4.21 in | Assembly/Box Mounting: | F1/F2 CAPABLE |
| Inverter Load: | CONSTANT 3:1 |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (LB-FT) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Break-Down | 30.00 | 500.0 | 26.00 | 347.0 | 2,850 | 0.00 | 74.5 | 5.00 |
| Full Load | 6.00 | 100.0 | 7.50 | 100.0 | 3,495 | 0.00 | 0.0 | 5.00 |
| No Load | 1.70 | 28.0 | 0.00 | 0.0 | 3,600 | 0.00 | 0.0 | 5.00 |
| 1/3 | 44.50 | 742.0 | 13.50 | 180.0 | 1,200 | 0.00 | 0.0 | 5.00 |
| 2/3 | 37.50 | 625.0 | 17.00 | 227.0 | 2,400 | 0.00 | 0.0 | 5.00 |
| Pull-Up | 47.00 | 783.0 | 15.50 | 207.0 | 170 | 0.00 | 0.0 | 5.00 |
| Locked-Rotor | 46.00 | 783.0 | 16.00 | 213.0 | 0 | 0.00 | 45.5 | 5.00 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % |
| Current (Amps) | 1.70 | 2.30 | 3.30 | 4.50 | 6.00 | 6.80 | 7.40 |
| Rated Output (KW) | 0.20 | 1.10 | 2.10 | 3.10 | 4.20 | 4.90 | 5.30 |
| Efficiency (%) | 0.0 | 81.9 | 87.9 | 89.1 | 88.5 | 88.3 | 87.6 |
| Power Factor (%) | 12.5 | 62.9 | 81.1 | 87.5 | 89.5 | 90.5 | 90.8 |
| Speed (RPM) | 3,600 | 3,576 | 3,551 | 3,526 | 3,495 | 3,477 | 3,463 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 55.0 | 0.0 | 85.0 |
| Torque (LB-FT) | 0.00 | 1.80 | 3.70 | 5.60 | 7.50 | 8.70 | 9.50 |
