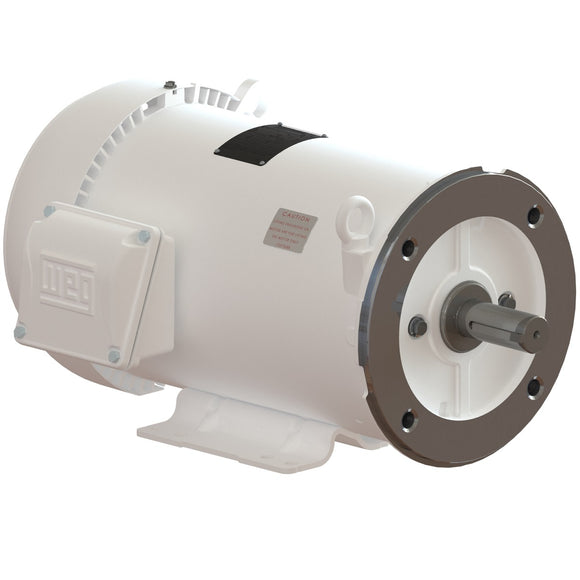

00312ET3EHW213TC-S WEG 3HP Hydrowash Electric Motor, 1200RPM

$1,498.50 $1,850.00 Save $351.50

Shipping calculated at checkout

Witmer Motor Service SKU: 00312ET3EHW213TC-S

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 213/5TC
Output 3 HP (2.2 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 230/460 V
Rated current 8.34/4.17 A
L. R. Amperes 53.4/26.7 A
LRC 6.4x(Code H)
No load current 4.71/2.36 A
Rated torque 13.4 ft.lb
Locked rotor torque 229 %
Breakdown torque 290 %
Locked rotor time 82s (cold) 46s (hot)
Moment of inertia (J) 1.08 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
Approx. weight³ 135 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.5  88.5  89.5

Power factor

50% 75% 100%
0.55  0.67  0.74
Frame 213/5TC
Output 3 HP (2.2 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 970 rpm
Slip 3.00 %
Rated voltage 190/380 V
Rated current 9.76/4.88 A
L. R. Amperes 49.8/24.9 A
LRC 5.1x(Code F)
No load current 4.66/2.33 A
Rated torque 16.2 ft.lb
Locked rotor torque 170 %
Breakdown torque 220 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 1.08 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 135 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.9  87.6  86.7

Power factor

50% 75% 100%
0.62  0.73  0.79
Frame 213/5TC
Output 3 HP (2.2 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 975 rpm
Slip 2.50 %
Rated voltage 220/415 V
Rated current 8.90/4.72 A
L. R. Amperes 49.9/26.4 A
LRC 5.6x(Code G)
No load current 4.69/2.48 A
Rated torque 16.2 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 1.08 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 135 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.6  87.8  87.3

Power factor

50% 75% 100%
0.58  0.70  0.77

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Shaft Material AISI 304 Stainless Steel
Painting 04501 205E
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Stainless Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
