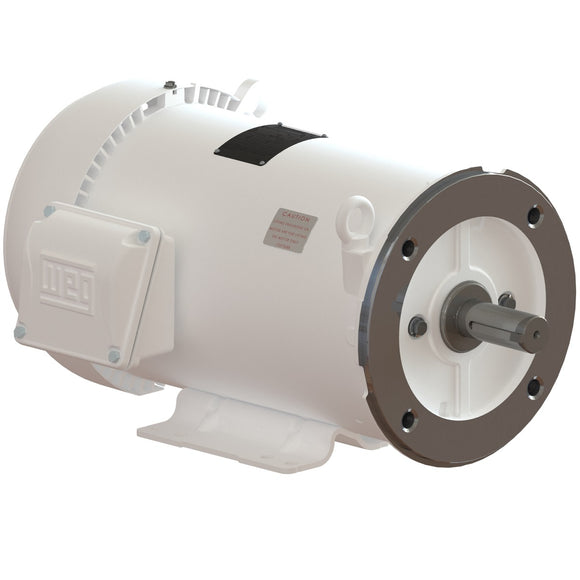

00212ET3EHW184TC-S WEG 2HP Hydrowash Electric Motor, 1200RPM

$1,142.10 $1,410.00 Save $267.90

Shipping calculated at checkout

Witmer Motor Service SKU: 00212ET3EHW184TC-S Barcode: 7909712007013

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 182/4TC
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1170 rpm
Slip 2.50 %
Rated voltage 230/460 V
Rated current 6.00/3.00 A
L. R. Amperes 45.0/22.5 A
LRC 7.5x(Code K)
No load current 3.74/1.87 A
Rated torque 8.98 ft.lb
Locked rotor torque 260 %
Breakdown torque 370 %
Locked rotor time 79s (cold) 44s (hot)
Moment of inertia (J) 0.3424 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 84.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.0  86.5  88.5

Power factor

50% 75% 100%
0.50  0.62  0.71
Frame 182/4TC
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 955 rpm
Slip 4.50 %
Rated voltage 190/380 V
Rated current 7.00/3.50 A
L. R. Amperes 42.7/21.3 A
LRC 6.1x(Code H)
No load current 3.69/1.85 A
Rated torque 11.0 ft.lb
Locked rotor torque 210 %
Breakdown torque 280 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.3424 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 84.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.3  86.4  85.7

Power factor

50% 75% 100%
0.57  0.69  0.76
Frame 182/4TC
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 960 rpm
Slip 4.00 %
Rated voltage 220/415 V
Rated current 6.49/3.44 A
L. R. Amperes 43.5/23.0 A
LRC 6.7x(Code J)
No load current 3.77/2.00 A
Rated torque 10.9 ft.lb
Locked rotor torque 250 %
Breakdown torque 320 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.3424 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 84.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.5  86.3  86.1

Power factor

50% 75% 100%
0.53  0.66  0.73

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 3/4"
Terminal Block Without
Shaft Material AISI 304 Stainless Steel
Painting 04501 205E
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Stainless Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
