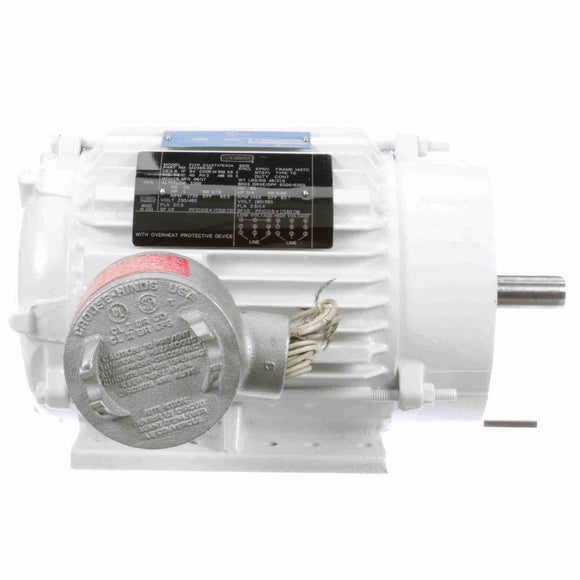

122395.00 Leeson 1HP Washguard Explosion Proof Electric Motor, 1800RPM-1

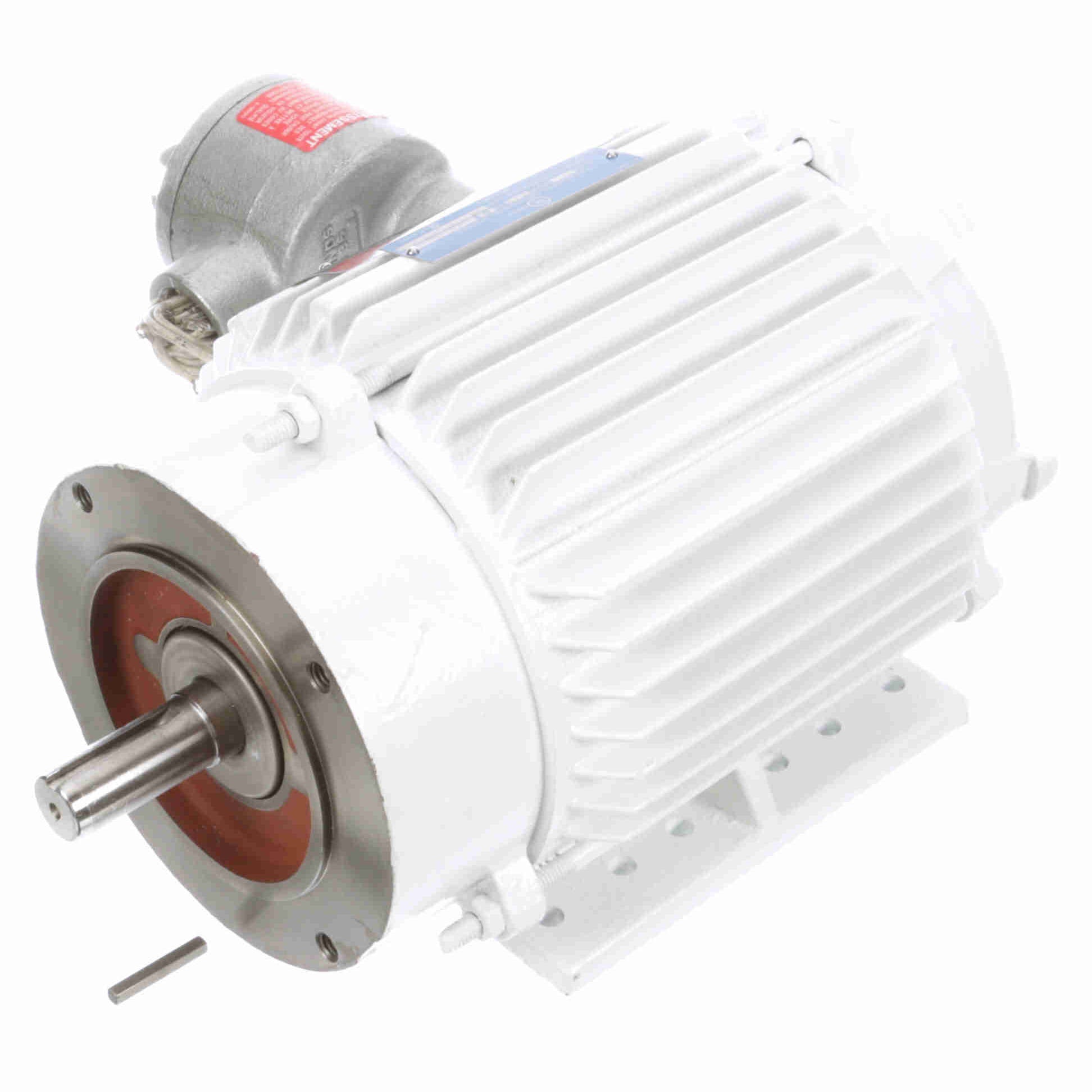

122395.00 Leeson 1HP Washguard Explosion Proof Electric Motor, 1800RPM-2

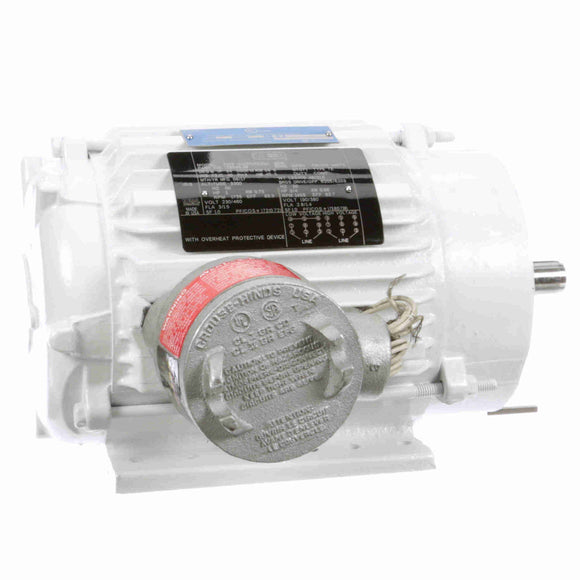

122395.00 Leeson 1HP Washguard Explosion Proof Electric Motor, 1800RPM-3

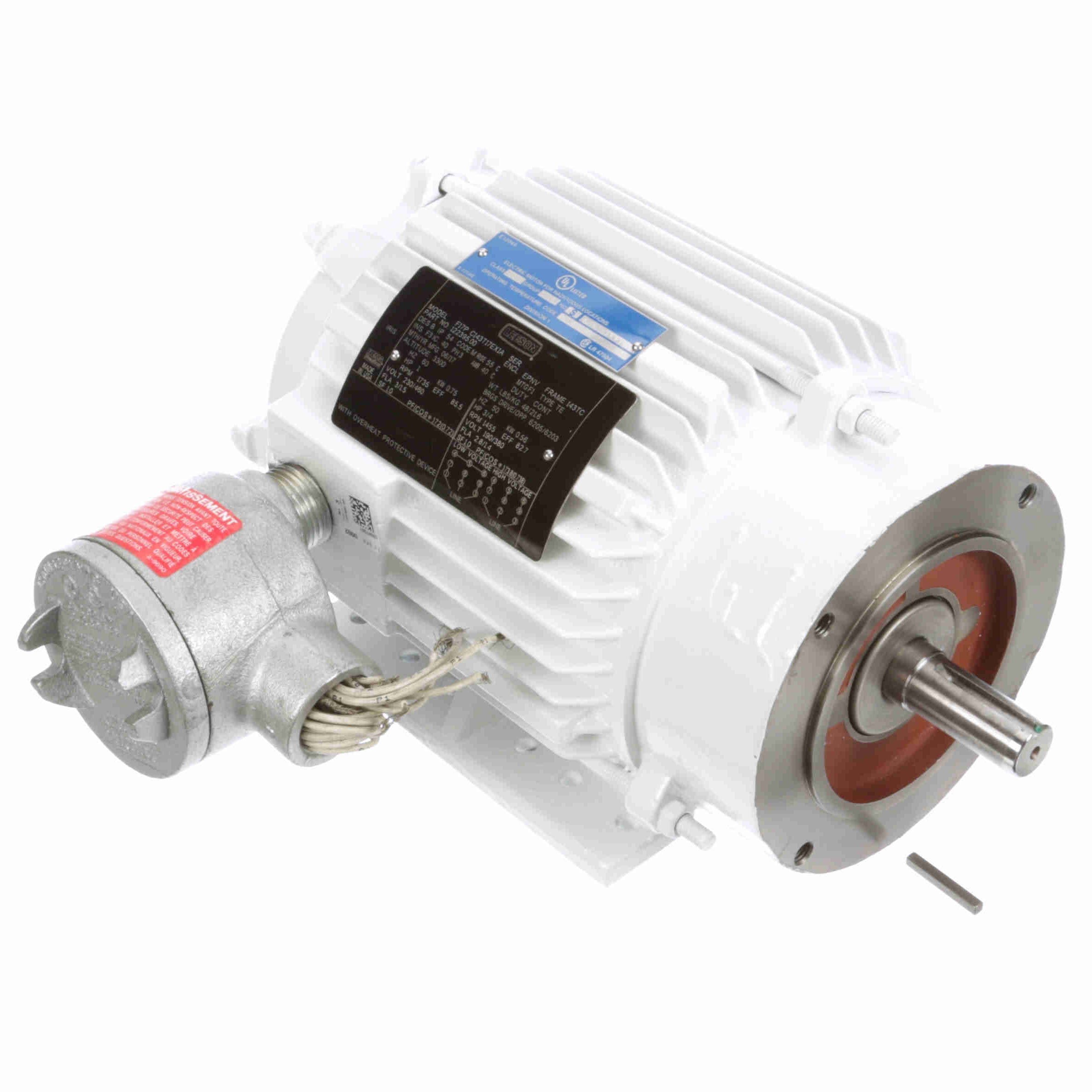

122395.00 Leeson 1HP Washguard Explosion Proof Electric Motor, 1800RPM-4

122395.00 Leeson 1HP Washguard Explosion Proof Electric Motor, 1800RPM

$1,299.97 $2,277.00 Save $977.03

Shipping calculated at checkout

Witmer Motor Service SKU: 122395.00 Barcode: 691720993873

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • USDA-approved finish
  • Sealed Bearings; Interior Corrosion Protected
  • Shaft Seals on Both Ends
  • Cast iron Conduit Box
  • Rigid Base with C Face
  • Stainless Steel Nameplate
  • Potted Leads; T-Stats
  • Premium Efficiency

General Specifications

UPC: 691720993873 Weight: 48.00 LB
Packaged Length: 15.5 IN Packaged Width: 14 IN
Packaged Height: 9.38 IN

Nameplate Specifications

Output HP: 1 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 3.0/1.5 A Speed: 1735 rpm
Service Factor: 1 Phase: 3
Efficiency: 85.5 % Power Factor: 72
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: M
Frame: 143TC Enclosure: Explosion Proof Non Ventilated
Thermal Protection: Thermostats (N/C) Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: UL Listed And CSA Certified CSA: Y
CE: N IP Code: 56
Hazardous Location: EXP PROOF CL I GR C&D CL II GR F&G T3B

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Resistance Main: 13.8 Ohms Mounting: Rigid base
Motor Orientation: HORIZONTAL Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Cast Iron
Shaft Type: T Overall Length: 13.42 in
Frame Length: 7.50 in Shaft Diameter: 0.875 in
Shaft Extension: 2.12 in Assembly/Box Mounting: F1 Only

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
1/3 12.80 853.0 9.50 317.0 600 1.00
Break-Down 9.00 600.0 14.00 467.0 1,600 81.5 1.00
Locked-Rotor 13.50 900.0 11.00 367.0 0 67.0 1.00
No Load 0.85 57.0 0.00 0.0 1,800 1.00
2/3 11.50 767.0 11.50 383.0 1,200 1.00
Full Load 1.50 100.0 3.00 100.0 1,735 1.00
Pull-Up 12.10 807.0 9.90 330.0 900 1.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 0.85 0.90 1.00 1.20 1.50 1.60 1.70
Rated Output (KW) 0.07 0.25 0.45 0.65 0.87 1.00 1.10
Efficiency (%) 0.0 75.5 84.0 85.5 85.5 85.5 84.0
Power Factor (%) 10.0 33.5 53.5 67.0 72.0 79.0 80.5
Speed (RPM) 1,800 1,785 1,770 1,755 1,735 1,730 1,725
Temp. Rise @ FL 0.0 40.0 40.0 0.0 60.0 70.0 85.0
Torque (ft-lbs) 0.00 0.74 1.50 2.20 3.00 3.50 3.80
