Features
- Meets UL and CSA safety requirements
- Automatic overload protected
- Internal mounted capacitors
- Double shielded ball bearings
- Meets temperature code T3B

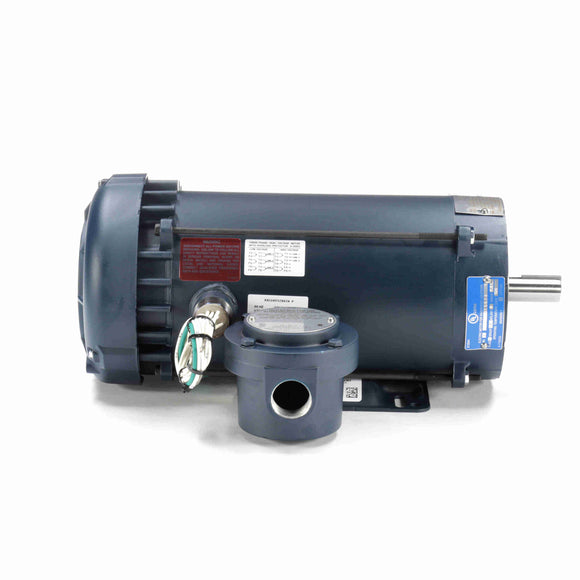

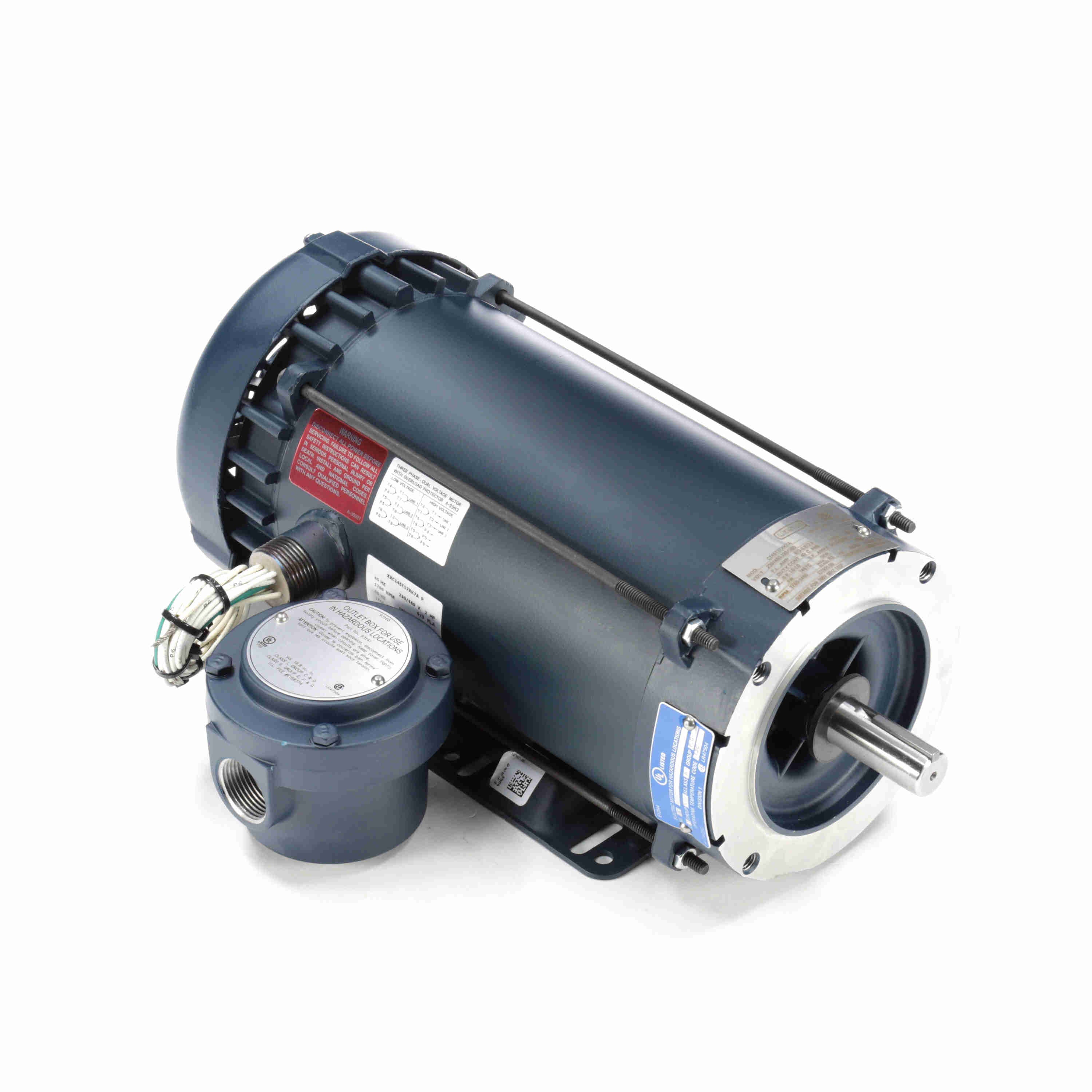

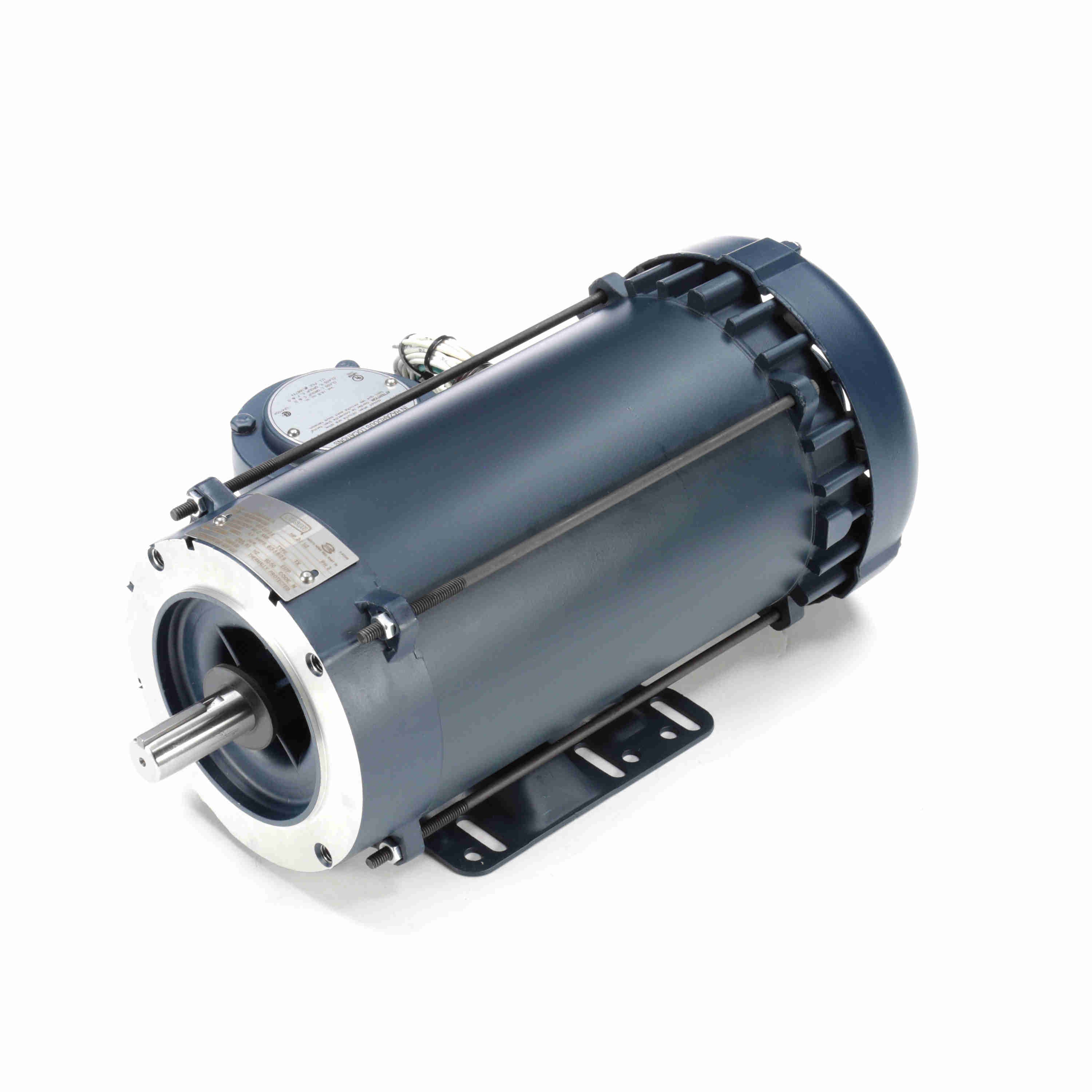

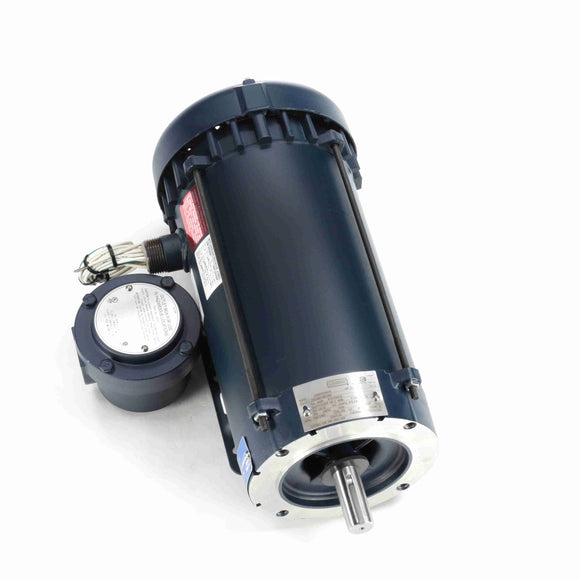

General Specifications
| Model : | C145T17XK7A | Catalog No : | 121921.00 |
| Part Description : | ..2HP..1800RPM.145TC.EPFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID-C.............. | Category : | Explosion Proof |
| Stock : | No |
Nameplate Specifications
| Output HP : | 2 Hp | Output KW : | 1.5 kW |
| Frequency : | 60 Hz | Voltage : | 230/460 V |
| Current : | 6.0/3.0 A | Speed : | 1760 rpm |
| Service Factor : | 1 | Phase : | 3 |
| Efficiency : | 86.5 % | Duty : | Continuous |
| Insulation Class : | B | Design Code : | B |
| KVA Code : | N | Frame : | 145TC |
| Enclosure : | Explosion Proof Fan cooled | Overload Protector : | Automatic |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 205 |
| Opp Drive End Bearing Size : | 203 | UL : | Listed |
| CSA : | N | CE : | N |
| IP Code : | 54 |
Technical Specifications
| Electrical Type : | Squirrel Cage Induction Run | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Reversible |
| Mounting : | Rigid Base | Motor Orientation : | Horizontal |
| Drive End Bearing : | Ball | Opp Drive End Bearing : | Ball |
| Frame Material : | Rolled Steel | Shaft Type : | T |
| Overall Length : | 16.50 in | Frame Length : | 9.31 in |
| Shaft Diameter : | 0.875 in | Shaft Extension : | 2.25 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720211878 |
| Weight : | 55.00 LB |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Full Load | 3.00 | 100.0 | 6.00 | 100.0 | 1,760 | 0.00 | 0.0 | 2.00 |
| No Load | 1.90 | 63.0 | 0.00 | 0.0 | 1,800 | 0.00 | 0.0 | 2.00 |
| Pull-Up | 29.50 | 983.0 | 23.70 | 395.0 | 115 | 0.00 | 0.0 | 2.00 |
| 1/3 | 29.00 | 967.0 | 20.80 | 347.0 | 600 | 0.00 | 0.0 | 2.00 |
| 2/3 | 24.40 | 813.0 | 25.70 | 428.0 | 1,200 | 0.00 | 0.0 | 2.00 |
| Locked-Rotor | 30.50 | 1,017.0 | 24.50 | 408.0 | 0 | 0.00 | 71.0 | 2.00 |
| Break-Down | 19.50 | 650.0 | 33.20 | 553.0 | 1,200 | 0.00 | 87.5 | 2.00 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. Rise @ FL
- Torque (ft-lb)
- 0 %
- 1.90
- 0.110
- 0.0
- 7.0
- 1,800
- 0.0
- 0.00
- 25 %
- 2.00
- 0.500
- 77.0
- 30.0
- 1,790
- 0.0
- 1.50
- 50 %
- 2.30
- 0.880
- 85.5
- 49.0
- 1,780
- 0.0
- 3.00
- 75 %
- 2.60
- 1.280
- 86.5
- 62.0
- 1,770
- 0.0
- 4.45
- 100 %
- 3.00
- 1.700
- 86.5
- 71.0
- 1,760
- 45.0
- 6.00
- 115 %
- 3.30
- 1.950
- 87.5
- 75.0
- 1,755
- 50.0
- 6.90
- 125 %
- 3.50
- 2.150
- 87.5
- 77.0
- 1,750
- 60.0
- 7.50
