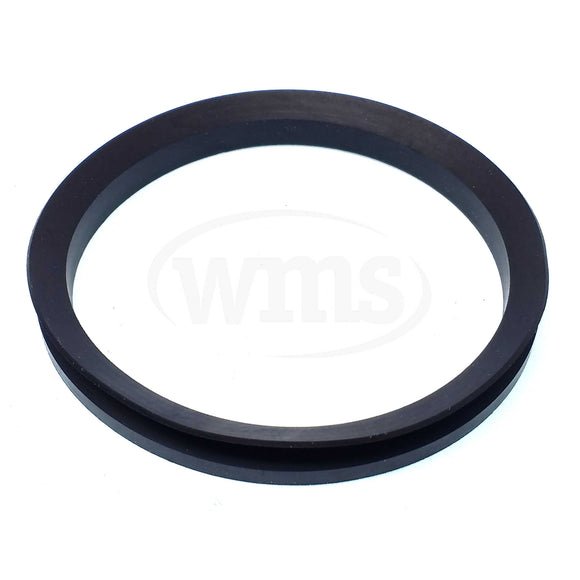

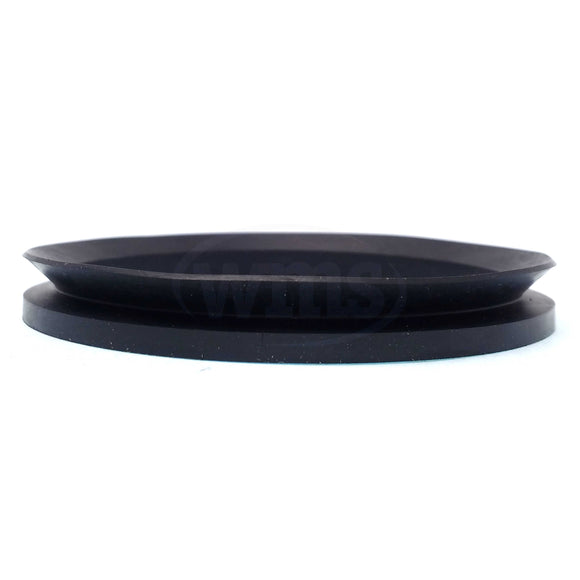

VA-090 Dichtomatik 90MM V-Ring Shaft Seal
VA-090 Dichtomatik 90MM V-Ring Shaft Seal
VA-090 Dichtomatik 90MM V-Ring Shaft Seal
VA-090 Dichtomatik 90MM V-Ring Shaft Seal
VA-090 Dichtomatik 90MM V-Ring Shaft Seal
VA-090 Dichtomatik 90MM V-Ring Shaft Seal
VA-090 Dichtomatik 90MM V-Ring Shaft Seal

VA-090 Dichtomatik 90MM V-Ring Shaft Seal

$20.22 USD

Shipping calculated at checkout

TCM/Dichtomatik SKU: VA-090 Barcode: 750886191490

3 In Stock!

Description Product Specs Manufacturer

Specifications

Brand TCM Dichtomatik, Americas
Part Number VA-090
VA-090-BX

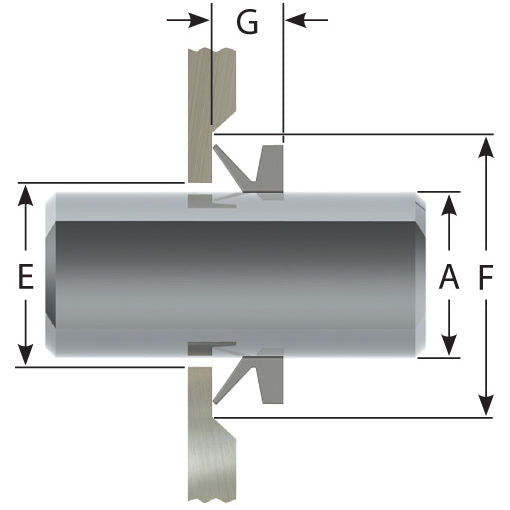

Shaft Diameter 88.00 - 93.00 mm
Seal Inside Diameter B 81.00 mm
Seal Outside Diameter C 93.00 mm
Seal Height D 11.00 mm
Housing Inside Diameter E A + 4.00 mm
Housing Outside Diameter F A + 18.00 mm
Housing Width G 9.00 mm 1.20 mm
UPC 750886191490
Weight 0.06 lbs
Country of Origin Taiwan
UPC
  • 750886191490
Weight
  • 0.06 lb

TCM/Dichtomatik
