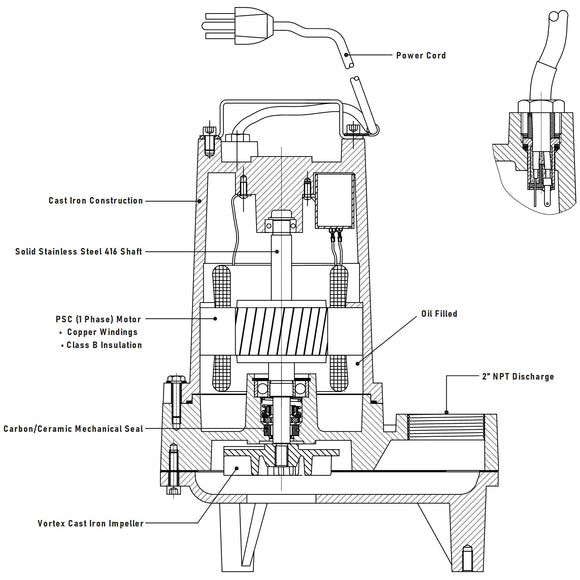

Features
- Heavy duty cast iron construction
- Oil-filled continuous duty rated PSC motor
- Recessed vortex cast iron impeller
- Upper and lower ball bearing design
- 3/4” solids handling
- 2” NPT discharge
Specifications

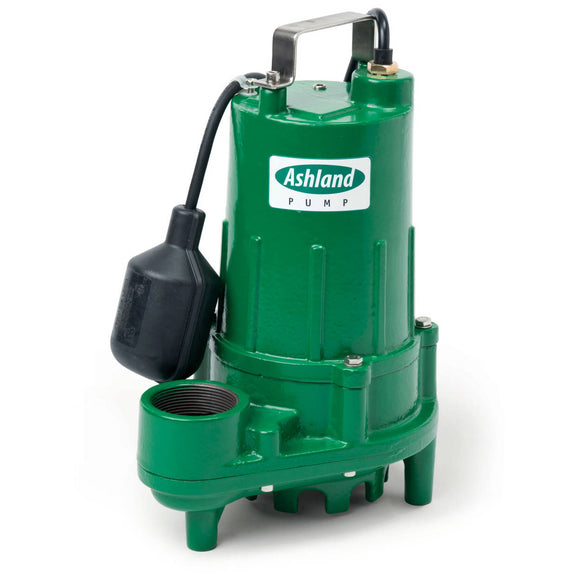

| Brand | Ashland Pump |
|---|---|
| Model | EP40W1-20 |
| HP | 4/10HP |
| Voltage | 115VAC 60Hz Single Phase |
| RPM | 3450RPM |
| Full Load Amps | 9.0 Amps |
| NEMA Start Code | P |
| Cord Type | SJTW 18/3C |
| Cord Power Size | 16AWG/3C |
| Cord O.D. | 0.34" |
| Discharge Size | 2" NPT |
| Impeller Type | Recessed Cast Iron Vortex |
| Cable Length | 20' |
| Maximum Liquid Temperature | 104°F Intermittent |
| Acceptable pH Range | 6 - 8 |
| Maximum Stator Temperature | 130°C |
| Sensor Cord Type | 16/3C |
| Motor Housing | Cast Iron |
| Casing | Cast Iron |
| Impeller | Cast Iron |
| Motor Shaft | Stainless Steel 430 |
| Hardware | SST |
| O-Rings | NBR |
| Mechanical Seal | Single Mechanical Carbon Ceramic |
| Upper Bearing | 6000 |
| Lower Bearing | 6203 |
Links
Ashland EP40 Electrical Data (PDF, 1 page, 43KB)
Ashland EP40 Features Data (PDF, 1 page, 94KB)
Ashland EP40 Performance Data (PDF, 1 page, 49KB)
Ashland EP40 Technical Data (PDF, 1 page, 49KB)
Ashland EP40 & EP45 Operation, Performance, Specifications and Parts Manual (PDF, 36 pages, 1.51MB)
Ashland EP40 Catalog Sheet (PDF, 2 pages, 229KB)
Ashland EP40 Dimensional Data (PDF, 1 page, 67KB)
