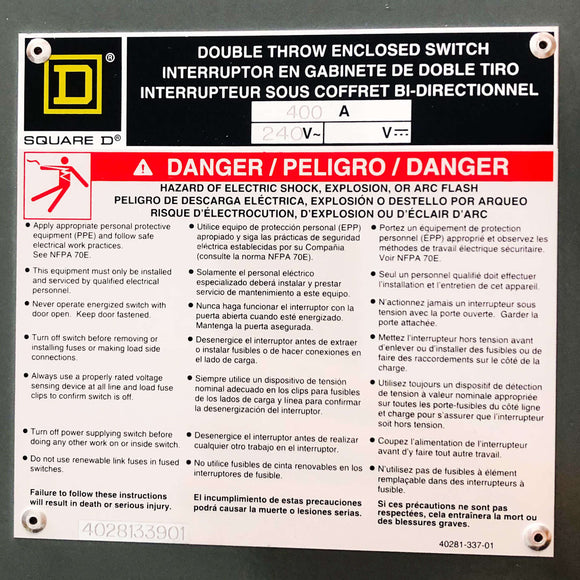

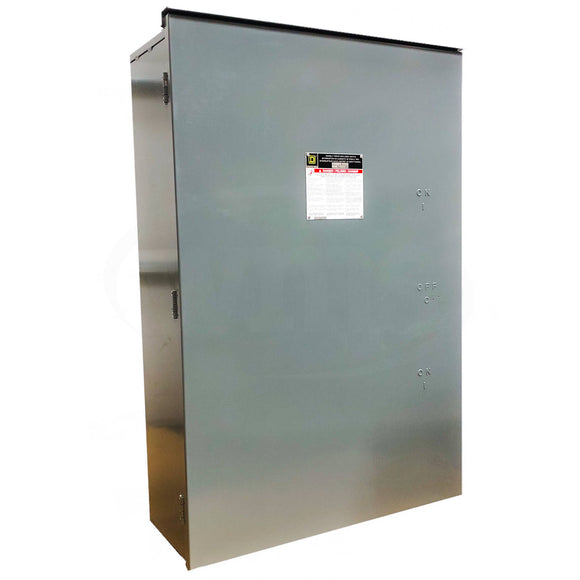

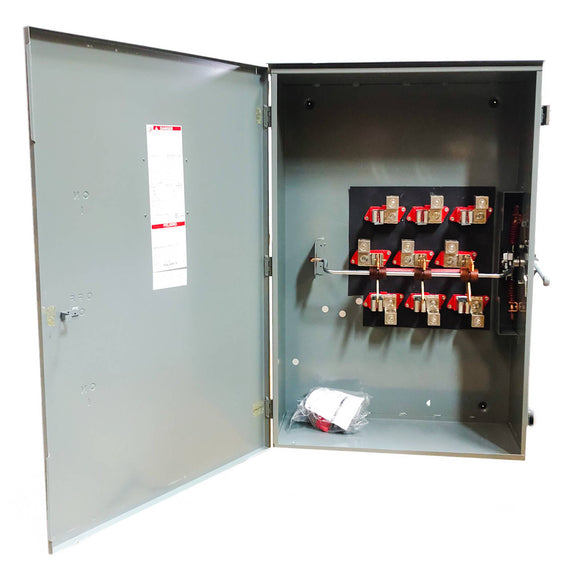

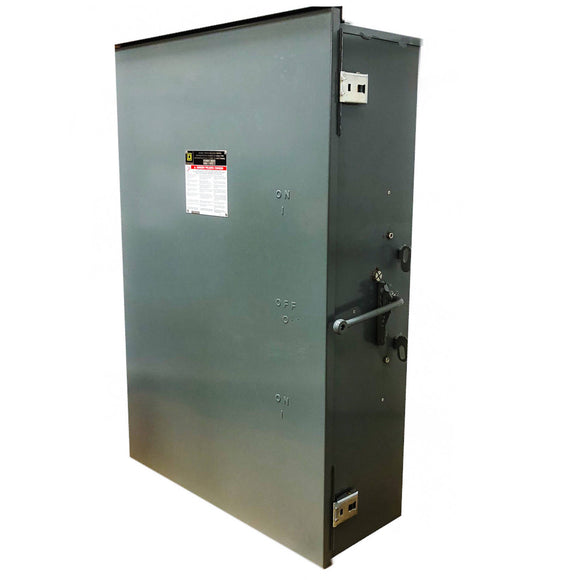

82355R Square D Double Throw Safety Switch, 400 Amps, 240VAC, 3 Poles

$7,999.97 USD

Shipping calculated at checkout

Schneider Electric (Square D) SKU: 82355R Barcode: 785901930464

30 Day
Return Policy

Ships Fast
in 24 hours

New, Surplus Stock. NEMA 3R, Non-Fusible

2 In Stock!

Description Product Specs Manufacturer


Main
Product Double Throw Safety Switch
Duty Rating General duty
Disconnect Type Non-fusible disconnect
Factory Installed Neutral None
Number of Poles 3
Current Rating 400 A
Voltage Rating 240 V AC
Enclosure Rating NEMA 3R
Complementary
short-circuit current 10 kA H or J
fuse type H or J
Mounting Type Surface
Wire Size AWG 1/0...600 kcmil copper or aluminium
Depth 10.63 in (270.00 mm)
Width 30.02 in (762.51 mm)
Height 39 in (990.60 mm)
Net Weight 98.99 lb(US) (44.9 kg)
Environment
Certifications UL Listed
Ordering and shipping details
Category 00133-DT SWITCH,NEMA3R
Discount Schedule DE1
GTIN 785901930464
Nbr. of units in pkg. 1
Package weight(Lbs) 105.00 lb(US) (47.627 kg)
Returnability Yes
Country of origin US
