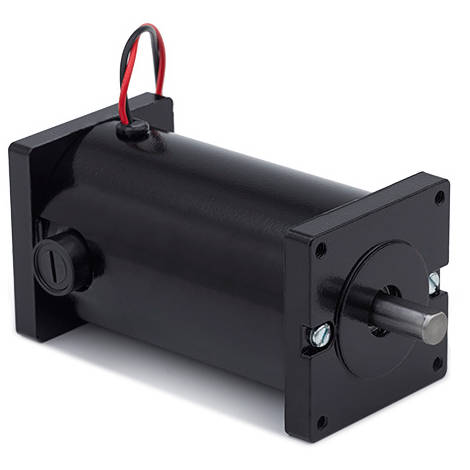

ML4401 WEG 1/6HP Permanent Magnet DC Electric Motor, 1800RPM

$264.12 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: ML4401 Barcode: 7909492478621

30 Day
Return Policy

Ships Fast
in 24 hours

TENV, IP55, 12VDC, 15.20 FLA, 14475886, 1/2" Shaft

Description Product Specs Manufacturer





Description



The M4000 Series Permanent Magnet Motor offers the design engineer a great deal of flexibility in a 3.12" diameter motor. Continuous duty torque rating.



Features




  • High Energy Ceramic Magnets

  • Double Shielded Ball Bearings

  • Dynamically Balanced Armature

  • Reversible Design

  • 36" Cord

  • TENV Design

  • Square End Bells

  • Externally Replaceable Brushes

  • Auto-Hook Tang Type Commutator

  • 2.015" Standard Pilot Diameter

  • Class "F" Insulation



Specifications





Documents



  • 12VDC
  • Electric Motor
  • TENV
  • DC
  • 1/6HP
  • 1800RPM

WEG Electric Corporation
