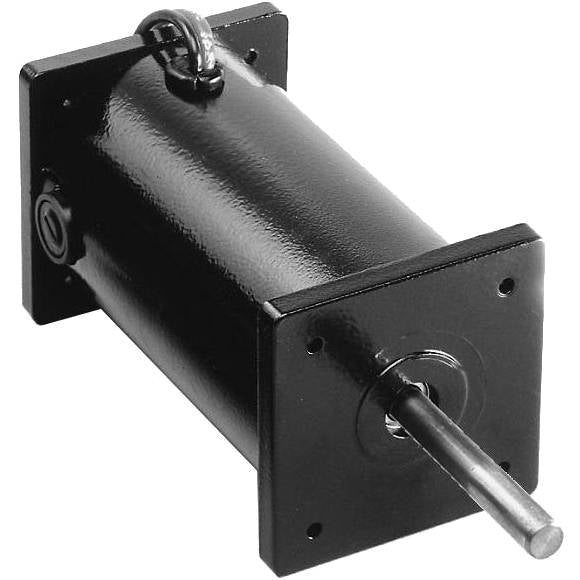

MH1601 WEG 1/20HP Permanent Magnet DC Electric Motor, 1800RPM

$183.18 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: MH1601 Barcode: 7909492478539

30 Day
Return Policy

Ships Fast
in 24 hours

TENV, IP55, 90VDC 0.61 FLA, 14475840, 5/16" Shaft

Description Product Specs Manufacturer





Description

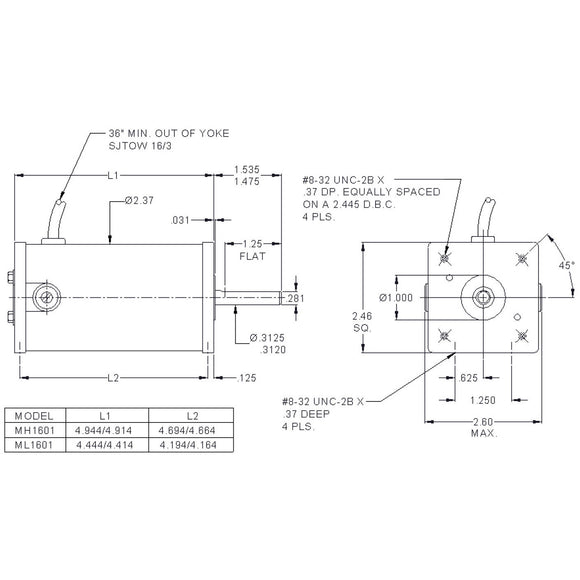

The M1600 Series Permanent Magnet Motor features a compact 2.375” diameter design that provides continuous duty torque ratings.



Features




  • High Energy Ceramic Magnets

  • Double Shielded Ball Bearings

  • Dynamically Balanced Armature

  • Reversible Design

  • 36" Cord

  • TENV Design

  • Square End Bells

  • Externally Replaceable Brushes

  • Auto-Hook Tang Type Commutator

  • 1.00” Standard Pilot Diameter

  • Class “F” Insulation



Specifications





Documents



  • 90VDC
  • Electric Motor
  • TENV
  • DC
  • 1/20HP
  • 1800RPM

WEG Electric Corporation
