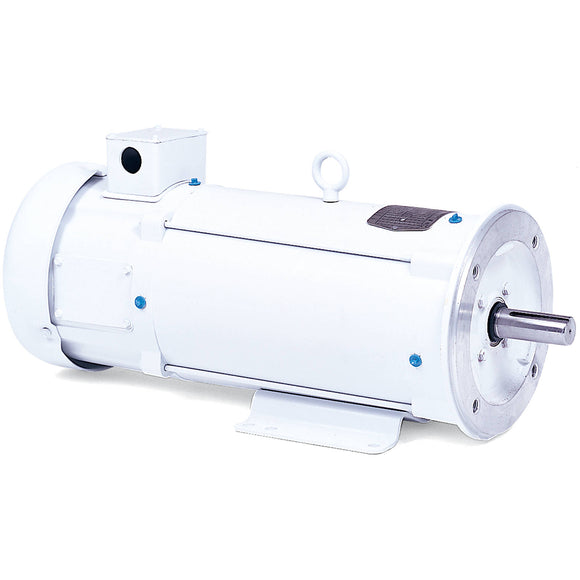

CDPWD3575 Baldor 1.5HP Washdown Permanent Magnet DC Electric Motor, 1750RPM

$3,499.97 USD

Shipping calculated at checkout

Baldor Electric Company SKU: CDPWD3575 Barcode: 781568133880

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 145TC Frame, 180VDC, 3536P, Rolled Steel, Rigid Base, C-Face, 7/8" Keyed Shaft

Description Product Specs Manufacturer

Specifications

Specs

Armature Voltage180 V
Base Speed1750 rpm
EnclosureTEFC
Frame145TC
Frame MaterialSteel
Output Power1.500 HP
XP Class and GroupNone
Agency ApprovalsCE
CSA
UR
WEEE
Ambient Temperature40 °C
Armature Current7.7 a
Armature Inertia30.342 lb-ft2
Base IndicatorRigid
Bearing Grease TypePolyrex EM (-20F +300F)
Drip CoverNo Drip Cover
Duty RatingCONT
Feedback DeviceNO FEEDBACK
Heater IndicatorNo Heater
Insulation ClassF
Lifting LugsNo Lifting Lugs
Motor Lead ExitKo Box
Motor Lead TerminationFlying Leads
Motor Lead Quantity/Wire Size2 @ 14 AWG, A
Mounting ArrangementF1
Overall Length17.17 IN
Product FamilyWash Down
Pulley End Bearing TypeSealed Bearing
RoHS StatusROHS COMPLIANT
Service Factor1.00
Shaft Diameter0.875 IN
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible: Connected Standard
Shaft Slinger IndicatorShaft Slinger
Motor StandardsNEMA
XP DivisionNot Applicable

Applications

  • Food processing conveyors
  • Feeders

Features

  • Moisture sealant on bolt heads between frame and endplates
  • Neoprene gasketed conduit box
  • Double sealed bearings
  • Forsheda® running contact V-Ring slinger
  • Stainless steel shaft
  • Class F Insulation
  • Tachometer adaptable
  • Suitable for high pressure washdown

Nameplate

Nameplate

CAT.NO. CDPWD3575
SPEC. 35P523Z164
HP 1.5 ENCL TEFC
RPM 1750
FRAME 145TC TYPE 3536P
ARM V 180 ARM A 7.7
FLD V FLD A
INSUL F AMB. 40
DUTY CONT SUPPLY K
BRG/DE 6205 BRG/ODE 6205
BRUSHES 2/BP5000T15
IC411 BLANK 1/MIN
SER.
BLANK IP55 KW 1.12 KG 29
APRV-CSA APRV-UL APRV-CE
NP1509
  • 180VDC
  • Electric Motor
  • 145TC
  • TEFC
  • DC
  • 1.5HP
  • 1750RPM

Baldor Electric Company
