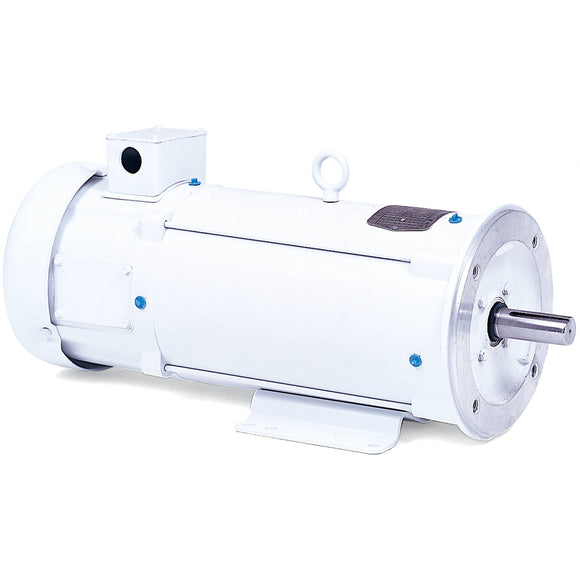

CDPWD3440 Baldor 3/4HP Washdown Permanent Magnet DC Electric Motor, 1750RPM

$1,499.97 USD

Shipping calculated at checkout

Baldor Electric Company SKU: CDPWD3440 Barcode: 781568133859

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 56C Frame, 90VDC, SCR Drive, 3428P, C-Face, Foot Mount

Description Product Specs Manufacturer

Specifications

Specs

Armature Voltage90 V
Base Speed1,750 rpm
Frame56C
Frame MaterialSteel
Output Power0.75 hp
XP Class and GroupNONE
BrandBaldor-Reliance
Agency ApprovalsCE
CSA
UR
WEEE
Ambient Temperature40 °C
Armature Current7.6 A
Armature Inertia10.926lb-ft2
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
Drip CoverNo Drip Cover
Duty RatingCONT
Feedback DeviceNo feedback
Heater IndicatorNo heater
Insulation ClassF
Lifting LugsNo Lifting Lugs
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size2 @ 14 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Overall Length14.59 in
Product FamilyWash Down
Pulley End Bearing TypeSealed Bearing
RoHS StatusRoHS Compliant
Service Factor1.00
Shaft Diameter0.625 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorShaft Slinger
XP DivisionNot Applicable

Applications

  • Food processing conveyors
  • Feeders

Features

  • Moisture sealant on bolt heads between frame and endplates
  • Neoprene gasketed conduit box
  • Double sealed bearings
  • Forsheda® running contact V-Ring slinger
  • Stainless steel shaft
  • Class F Insulation
  • Tachometer adaptable
  • Suitable for high pressure washdown

Nameplate

Nameplate

CAT.NO. CDPWD3440
SPEC. 34-6418-3662
HP .75 ENCL TEFC
RPM 1750
FRAME 56C TYPE 3428P
ARM V 90 ARM A 7.6
FLD V FLD A
INSUL F AMB. 40
DUTY CONT SUPPLY 1.5
BRG/DE 6203 BRG/ODE 6203
BRUSHES 2/BP5000BK08
BLANK
SER.
BLANK
APRV-CSA APRV-UL APRV-CE
NP1509

Performance

Performance

Performance at 90 Arm V, 0.75 HP

Typical performance; not guaranteed values.

General Characteristics

Armature Resistance0.7344 ohms
Series Winding Resistance
Armature Inductance6.683 mH
Maximum Rated RPM With Field Weakening
Commutating Winding Resistance
Shunt Winding Resistance
Armature Inertia10.9256 LI²
Maximum Allowable Inrush Amps

Load Characteristics

Load Point 1 2 3 4 5 6 7
Armature Amps 0.9 2.15 4.52 5.83 7.69 9.6 11.13
RPM 1933 1889 1851 1825 1798 1759 1720
Torque 0 0.56 1.12 1.68 2.25 2.81 3.38

Performance Curves

  • 90VDC
  • Electric Motor
  • 56C
  • TEFC
  • DC
  • 3/4HP
  • 1750RPM

Baldor Electric Company
