CD6203 Baldor 3HP Shund Wound DC Electric Motor, 1750RPM

$3,599.97 USD

Shipping calculated at checkout

Baldor Electric Company SKU: CD6203 Barcode: 781568124840

30 Day
Return Policy

Ships Fast
in 24 hours

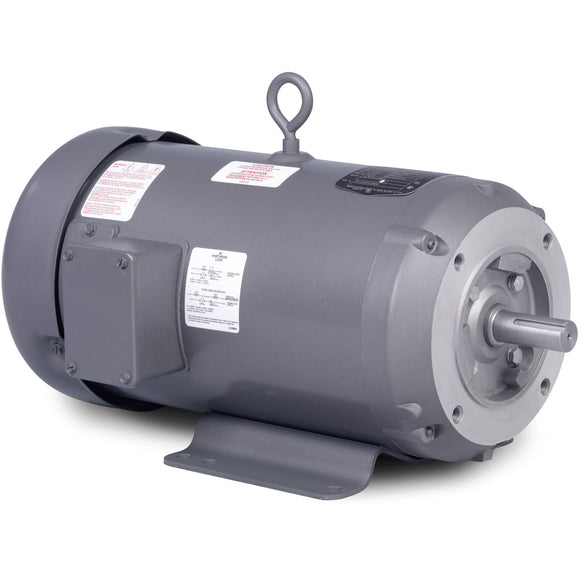

TEFC, 184TC Frame, 100/200VDC Field, 180VDC Armature, 3668D, Rolled Steel, Rigid Base, C-Face, 1-1/8" Keyed Shaft

Description Product Specs Manufacturer

Specifications

Specs

Armature Voltage180 V
Base Speed1750 rpm
EnclosureTEFC
Field Voltage100 V
200 V
Frame184TC
Frame MaterialSteel
Output Power3.000 HP
XP Class and GroupNone
Agency ApprovalsCSA
UR
Ambient Temperature40 °C
Armature Current14.7 a
Armature Inertia57.312 lb-ft2
Base IndicatorRigid
Bearing Grease TypePolyrex EM (-20F +300F)
Drip CoverNo Drip Cover
Duty RatingCONT
Feedback DeviceNO FEEDBACK
Field Winding TypeSHUNT
Heater IndicatorNo Heater
Insulation ClassH
Lifting LugsStandard Lifting Lugs
Motor Lead ExitKo Box
Motor Lead TerminationFlying Leads
Motor Lead Quantity/Wire Size4 @ 18 AWG
2 @ 12 AWG
Mounting ArrangementF1
Overall Length21.62 IN
Product FamilyGeneral Purpose
Pulley End Bearing TypeSealed Bearing
RoHS StatusROHS COMPLIANT
Service Factor1.00
Shaft Diameter1.125 IN
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Motor StandardsNEMA
XP DivisionNot Applicable

Applications

  • Conveyors
  • Printing and textile equipment
  • Machine tools

Features

  • Designed for use with NEMA type K SCR control
  • 20:1 constant torque speed range
  • NEMA C-face and removable base
  • NEMA 182 frame and larger – normally closed thermostat on field winding
  • Class F insulation
  • 1.0 Service Factor

Nameplate

Nameplate

CAT.NO. CD6203
SPEC. 36-5347Z136
HP 3 ENCL TEFC
RPM 1750
FRAME 184TC TYPE 3668D
ARM V 180 ARM A 14.7
FLD V 200/100 FLD A .6/1.2
INSUL H AMB. 40
DUTY CONT SUPPLY K
BRG/DE 6206 BRG/ODE 6205
BRUSHES 2/BP5125A01
BLANK
SER.
BLANK
APRV-CSA APRV-UL
NP0111L
  • 100VDC
  • 200VDC
  • Electric Motor
  • 184TC
  • TEFC
  • DC
  • 3HP
  • 1750RPM

Baldor Electric Company
