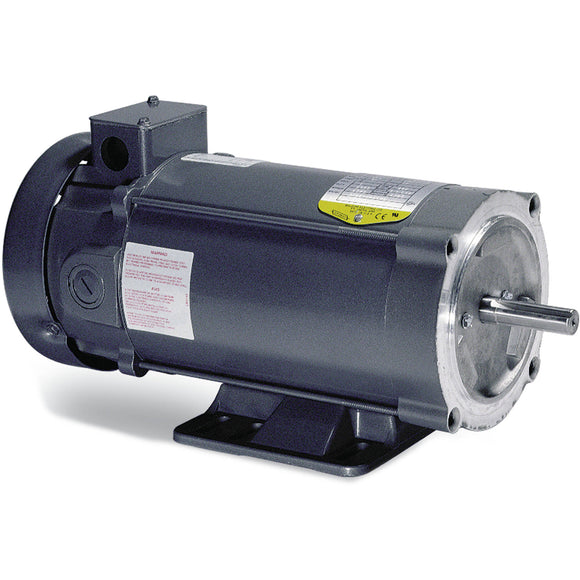

CD5319 Baldor 1HP Shunt Wound DC Electric Motor, 1750RPM

$1,899.97 USD

Shipping calculated at checkout

Baldor Electric Company SKU: CD5319 Barcode: 781568124772

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 56C Frame, 50/100VDC Field, 90VDC Armature, 3535D, Rolled Steel, Rigid Base, C-Face, 5/8" Keyed Shaft

Description Product Specs Manufacturer

Specifications

Specs

Armature Voltage90 V
Base Speed1750 rpm
EnclosureTEFC
Field Voltage100 V
50 V
Frame56C
Frame MaterialSteel
Output Power1.000 HP
XP Class and GroupNone
Agency ApprovalsCSA
UR
Ambient Temperature40 °C
Armature Current10.0 a
Armature Inertia13.657 lb-ft2
Base IndicatorRigid
Bearing Grease TypePolyrex EM (-20F +300F)
Drip CoverNo Drip Cover
Duty RatingCONT
Feedback DeviceNO FEEDBACK
Field Winding TypeSHUNT
Heater IndicatorNo Heater
Insulation ClassF
Lifting LugsNo Lifting Lugs
Motor Lead ExitLead Hole
Motor Lead TerminationFlying Leads
Motor Lead Quantity/Wire Size4 @ 18 AWG
2 @ 14 AWG
Mounting ArrangementF1
Overall Length16.29 IN
Product FamilyGeneral Purpose
Pulley End Bearing TypeSealed Bearing
RoHS StatusROHS COMPLIANT
Service Factor1.00
Shaft Diameter0.625 IN
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Motor StandardsNEMA
XP DivisionNot Applicable

Applications

  • Conveyors
  • Printing and textile equipment
  • Machine tools

Features

  • Designed for use with NEMA type K SCR control
  • 20:1 constant torque speed range
  • NEMA C-face and removable base
  • NEMA 182 frame and larger – normally closed thermostat on field winding
  • Class F insulation
  • 1.0 Service Factor

Nameplate

Nameplate

CAT.NO. CD5319
SPEC. 35P442Z390
HP 1 ENCL TEFC
RPM 1750
FRAME 56C TYPE 3535D
ARM V 90 ARM A 10
FLD V 100/50 FLD A .6/1.2
INSUL F AMB. 40
DUTY CONT SUPPLY 1.3
BRG/DE 6205 BRG/ODE 6203
BRUSHES 2/BP5000T07
BLANK
SER.
BLANK
APRV-CSA APRV-UL
NP0111L
  • Electric Motor
  • 56C
  • TEFC
  • DC
  • 1HP
  • 1750RPM

Baldor Electric Company
