Features
Features
- End shields are O-ring sealed to the frame
- Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
- Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
- Interior coatings applied to rotor and stator protect against corrosion
- New conduit box mounting system provides optimum sealing
- Windings are immersed and cured in polyester insulating varnish for extra moisture-resistance
- All Washdown Duty motors have Class F Insulation
- LEESON’s exclusive IRIS™ Inverter-Rated Insulation System provides extra protection and long life, especially in inverter-driven applications
- All sealing components are Viton® for superior chemical resistance
- Full fact nameplate is laser etched on the motor frame
General Specifications
General Specifications
|
|
C4D17WK9A |
|
109069.00 |
|
|

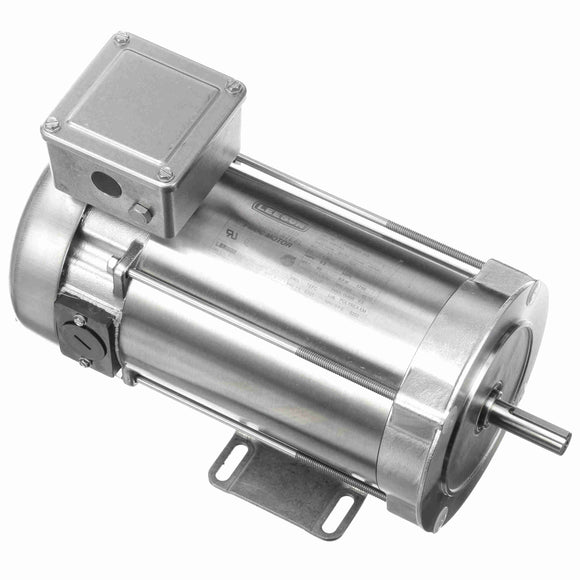

1/2HP.1750RPM.US56C.TEFC.90V.CONT.40C.1.0SF.RIGID C.DC WASHGUARD ALL-STAINLESS.C4D17WK9A |
|
NEMA |
|
|
No |
Nameplate Specifications
Nameplate Specifications
|
|
0.50 HP |
|
0.37 kW |
|
|
90 V |
|
5.2 A |
|
|
1750 RPM |
|
1 |
|
|
79 % |
|
Continuous |
|
|
F |
|
US56C |
|
|
Totally Enclosed Fan Cooled |
|
No |
|
|
40 °C |
|
6205 |
|
|
6203 |
|
Recognized |
|
|
Y |
|
N |
Technical Specifications
Technical Specifications
|
|
Reversible |
|
Rigid C base |
|
|
15.37 in |
|
7.25 in |
|
|
0.625 in |
|
2.05 in |
|
|
691720342947 |
|
46.00 LB |
Speed & Load Characteristics
