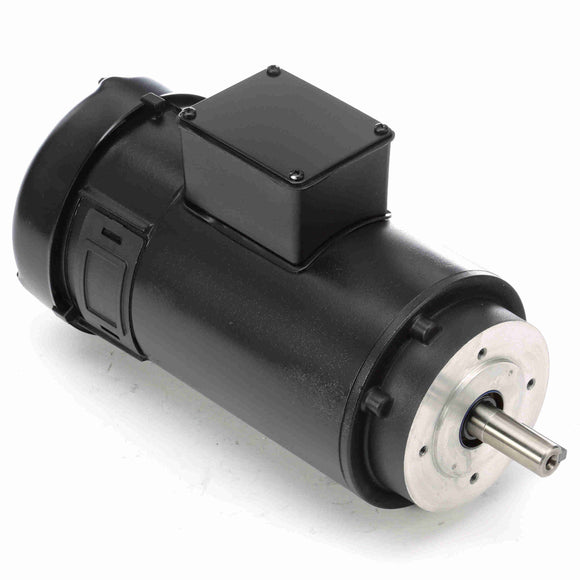

Features
- Cast aluminum conduit box
- Terminal board provided for connections
- All metric fasteners
- Easy brush access for field service
- Oversize brushes for extended life
- High strength rolled steel frame
- Die cast aluminum endshields with steel bearing inserts
- Permanently lubricated sealed ball bearings
- Reversible rotation; Simple 2 lead connection; Convenient wiring access
- Tachometer mounting kits available for 71 and 80 frames only
General Specifications
| UPC: | 691720006917 | Weight: | 34 LB |
| Packaged Length: | 19.5 IN | Packaged Width: | 10.44 IN |
| Packaged Height: | 10.88 IN |
Nameplate Specifications
| Output KW: | 0.75 kW | Voltage: | 180 V |
| Current: | 4.9 A | Speed: | 1800 rpm |
| Service Factor: | 1 | Efficiency: | 82 % |
| Duty: | S1 | Insulation Class: | F |
| Frame: | 80 | Enclosure: | IP54 |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6204 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | Y |
Technical Specifications
| Rotation: | Reversible | Mounting: | Special |
| Overall Length: | 14.15 in | Frame Length: | 6.47 in |
| Shaft Diameter: | 0.750 in | Shaft Extension: | 2.05 in |
