Description

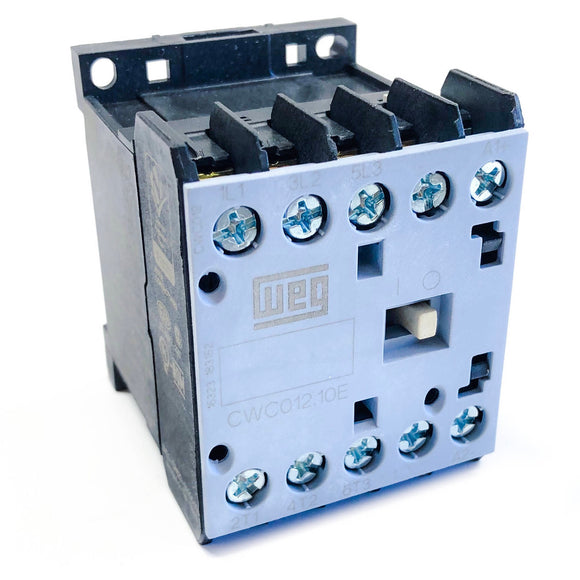

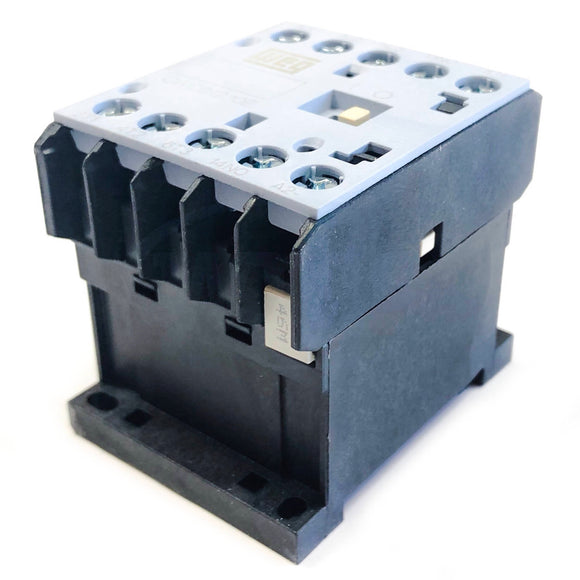

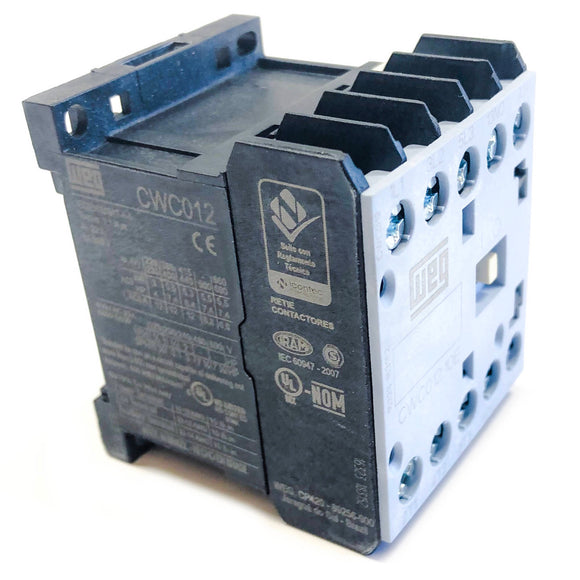

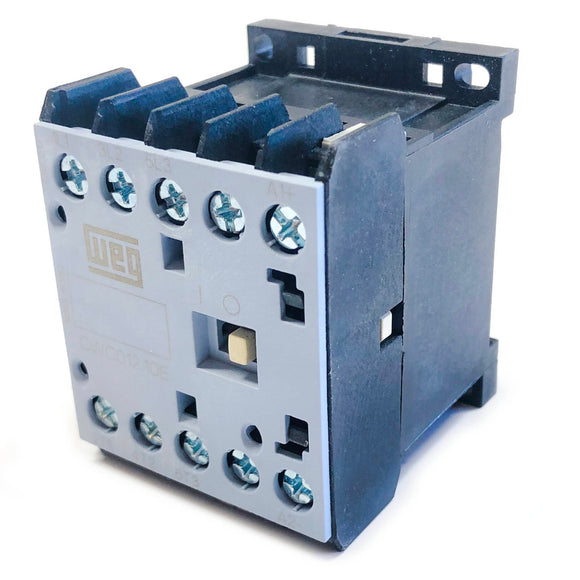

The CWC Series Mini Contactor Line is a Compact Solution for the Control and Operation of Circuits. Its extensive lineup of modular and tool-free accessories makes this series the most flexible mini-contactor available today. The CWC Series miniature contactor features more horsepower for its size than any other miniature contactor on the market.
Standard Features
- Direct Mounting to RW17D Series Thermal Overload Relays
- Direct Mounting to MPW18 and MPW40 Series Manual Motor Protectors
- Low Consumption DC Coils
- Tool Free DIN Rail Mountable
- Frame size remains the same for AC and DC coil contactors up to 16A
- Complete line of snap-on accessories
Specifications
| Manufacturer | WEG |
|---|---|
| Catalog Number | CWC012-01-30V24 |
| Frame Current Rating | 12 Amps |
| Auxiliary Contacts | 1 Normally Closed |
| Power Poles | 3 |
| Coil Voltage | 208-240VAC 60Hz |
| Maximum UL Horsepower | 1/2 HP@115V Single Phase
2 HP@230V Single Phase 3 HP@200/230V 3-Phase 7.5 HP@460/575V 3-Phase |
