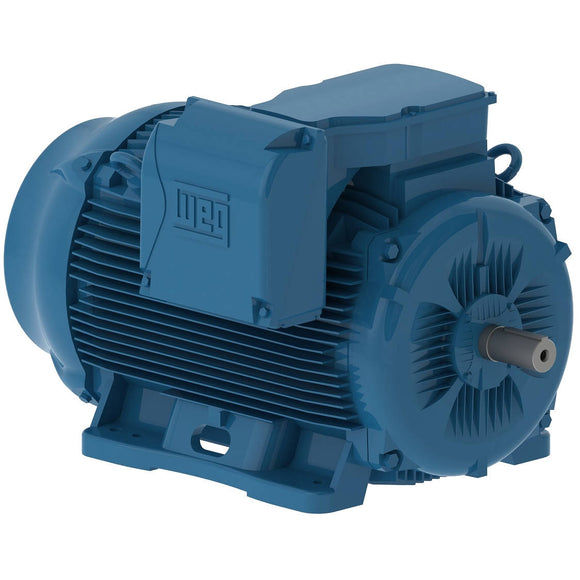

25012ET3GRB449T-W22 WEG 250HP Crusher Duty Electric Motor, 1200RPM

$31,643.95 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 25012ET3GRB449T-W22 Barcode: 7894171931620

30 Day
Return Policy

Ships Fast
in 24 hours

IC411 - TEFC, IP55, 447T/449T Frame, 460VAC 60Hz 3 Phase, 11356715, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft

Description Product Specs Manufacturer






Electric Motors







































Frame 447/9T
Output 250 HP (185 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1185 rpm
Slip 1.25 %
Rated voltage 460 V
Rated current 292 A
L. R. Amperes 1781 A
LRC 6.1x(Code G)
No load current 120 A
Rated torque 1110 ft.lb
Locked rotor torque 240 %
Breakdown torque 240 %
Locked rotor time 21s (cold) 12s (hot)




































Moment of inertia (J) 145 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 70.0 dB(A)
Approx. weight³ 3038 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

95.0
95.4
95.8



Power factor















50% 75% 100%

0.68
0.79
0.83









































Frame 447/9T
Output 200 HP (150 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 284 A
L. R. Amperes 1732 A
LRC 6.1x(Code G)
No load current 119 A
Rated torque 1070 ft.lb
Locked rotor torque 220 %
Breakdown torque 240 %
Locked rotor time 18s (cold) 10s (hot)




































Moment of inertia (J) 145 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 70.0 dB(A)
Approx. weight³ 3038 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

94.8
95.5
95.5



Power factor















50% 75% 100%

0.68
0.79
0.84









































Frame 447/9T
Output 200 HP (150 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 400 V
Rated current 280 A
L. R. Amperes 1904 A
LRC 6.8x(Code H)
No load current 127 A
Rated torque 1070 ft.lb
Locked rotor torque 260 %
Breakdown torque 260 %
Locked rotor time 18s (cold) 10s (hot)




































Moment of inertia (J) 145 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 70.0 dB(A)
Approx. weight³ 3038 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

94.7
95.5
95.5



Power factor















50% 75% 100%

0.65
0.77
0.81









































Frame 447/9T
Output 200 HP (150 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 415 V
Rated current 273 A
L. R. Amperes 2020 A
LRC 7.4x(Code J)
No load current 134 A
Rated torque 1070 ft.lb
Locked rotor torque 280 %
Breakdown torque 280 %
Locked rotor time 18s (cold) 10s (hot)




































Moment of inertia (J) 145 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 70.0 dB(A)
Approx. weight³ 3038 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

94.6
95.5
95.5



Power factor















50% 75% 100%

0.61
0.74
0.80









































Frame 447/9T
Output 250 HP (185 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 350 A
L. R. Amperes 1680 A
LRC 4.8x(Code D)
No load current 119 A
Rated torque 1340 ft.lb
Locked rotor torque 180 %
Breakdown torque 190 %
Locked rotor time 18s (cold) 10s (hot)




































Moment of inertia (J) 145 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 70.0 dB(A)
Approx. weight³ 3038 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

95.0
94.5
94.5



Power factor















50% 75% 100%

0.74
0.83
0.85









































Frame 447/9T
Output 250 HP (185 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 400 V
Rated current 336 A
L. R. Amperes 1848 A
LRC 5.5x(Code F)
No load current 127 A
Rated torque 1340 ft.lb
Locked rotor torque 210 %
Breakdown torque 210 %
Locked rotor time 18s (cold) 10s (hot)




































Moment of inertia (J) 145 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 70.0 dB(A)
Approx. weight³ 3038 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

94.5
94.5
94.5



Power factor















50% 75% 100%

0.71
0.81
0.84









































Frame 447/9T
Output 250 HP (185 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 415 V
Rated current 326 A
L. R. Amperes 1956 A
LRC 6.0x(Code G)
No load current 134 A
Rated torque 1330 ft.lb
Locked rotor torque 229 %
Breakdown torque 229 %
Locked rotor time 18s (cold) 10s (hot)




































Moment of inertia (J) 145 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 70.0 dB(A)
Approx. weight³ 3038 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

94.5
95.0
95.0



Power factor















50% 75% 100%

0.68
0.79
0.83






Features












































Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device With
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Aluminum
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
