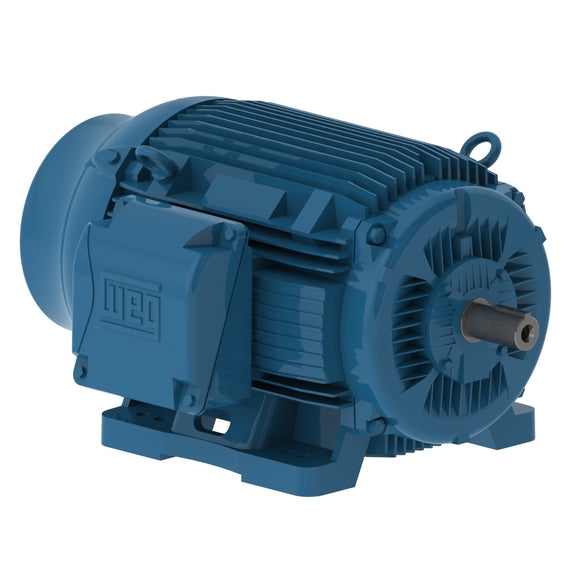

Electric Motors
| Frame | 404/5T |
|---|---|
| Output | 75 HP (55 kW) |
| Number of Poles | 6 |
| Frequency | 60 Hz |
| Rated speed | 1184 rpm |
| Slip | 1.33 % |
| Rated voltage | 460 V |
| Rated current | 84.9 A |
| L. R. Amperes | 543 A |
| LRC | 6.4x(Code G) |
| No load current | 30.0 A |
| Rated torque | 333 ft.lb |
| Locked rotor torque | 229 % |
| Breakdown torque | 229 % |
| Locked rotor time | 30s (cold) 17s (hot) |
| Moment of inertia (J) | 40.2 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 68.0 dB(A) |
| Approx. weight³ | 1197 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
94.1 |
94.5 |
94.5 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.74 |
0.83 |
0.86 |
| Frame | 404/5T |
|---|---|
| Output | 50 HP (37 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 988 rpm |
| Slip | 1.20 % |
| Rated voltage | 380 V |
| Rated current | 70.9 A |
| L. R. Amperes | 546 A |
| LRC | 7.7x(Code J) |
| No load current | 29.7 A |
| Rated torque | 266 ft.lb |
| Locked rotor torque | 250 % |
| Breakdown torque | 300 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 40.2 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 64.0 dB(A) |
| Approx. weight³ | 1197 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
90.6 |
91.7 |
93.3 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.66 |
0.79 |
0.85 |
| Frame | 404/5T |
|---|---|
| Output | 50 HP (37 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 990 rpm |
| Slip | 1.00 % |
| Rated voltage | 400 V |
| Rated current | 69.0 A |
| L. R. Amperes | 573 A |
| LRC | 8.3x(Code J) |
| No load current | 31.8 A |
| Rated torque | 265 ft.lb |
| Locked rotor torque | 280 % |
| Breakdown torque | 330 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 40.2 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 64.0 dB(A) |
| Approx. weight³ | 1197 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
91.1 |
92.3 |
93.3 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.62 |
0.75 |
0.83 |
| Frame | 404/5T |
|---|---|
| Output | 50 HP (37 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 991 rpm |
| Slip | 0.90 % |
| Rated voltage | 415 V |
| Rated current | 68.1 A |
| L. R. Amperes | 606 A |
| LRC | 8.9x(Code K) |
| No load current | 33.5 A |
| Rated torque | 265 ft.lb |
| Locked rotor torque | 310 % |
| Breakdown torque | 360 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 40.2 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 64.0 dB(A) |
| Approx. weight³ | 1197 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
91.0 |
92.3 |
93.3 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.60 |
0.74 |
0.81 |
| Frame | 404/5T |
|---|---|
| Output | 75 HP (55 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 978 rpm |
| Slip | 2.20 % |
| Rated voltage | 380 V |
| Rated current | 104 A |
| L. R. Amperes | 541 A |
| LRC | 5.2x(Code E) |
| No load current | 29.7 A |
| Rated torque | 403 ft.lb |
| Locked rotor torque | 170 % |
| Breakdown torque | 180 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 40.2 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 64.0 dB(A) |
| Approx. weight³ | 1197 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
91.8 |
92.2 |
92.4 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.79 |
0.86 |
0.87 |
| Frame | 404/5T |
|---|---|
| Output | 75 HP (55 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 981 rpm |
| Slip | 1.90 % |
| Rated voltage | 400 V |
| Rated current | 99.3 A |
| L. R. Amperes | 566 A |
| LRC | 5.7x(Code F) |
| No load current | 31.8 A |
| Rated torque | 401 ft.lb |
| Locked rotor torque | 190 % |
| Breakdown torque | 200 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 40.2 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 64.0 dB(A) |
| Approx. weight³ | 1197 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
92.4 |
92.8 |
93.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.76 |
0.84 |
0.86 |
| Frame | 404/5T |
|---|---|
| Output | 75 HP (55 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 983 rpm |
| Slip | 1.70 % |
| Rated voltage | 415 V |
| Rated current | 95.7 A |
| L. R. Amperes | 593 A |
| LRC | 6.2x(Code G) |
| No load current | 33.5 A |
| Rated torque | 401 ft.lb |
| Locked rotor torque | 210 % |
| Breakdown torque | 220 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 40.2 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 64.0 dB(A) |
| Approx. weight³ | 1197 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
92.4 |
92.8 |
93.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.74 |
0.83 |
0.86 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Constant Resin Flow |
| Regreasing System | At Drive end and Non-drive end |
| Main terminal box hole | NPT 3" |
| Terminal Block | Without |
| Shaft Locking Device | With |
| Drain | Rubber, automatic |
| Shaft Material | SAE 4140 Carbon Steel |
| Painting | RAL 5009 203A (ISO 12944 - C2) |
| Grounding Lugs | Double |
| Fan Cover material | Cast Iron |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
