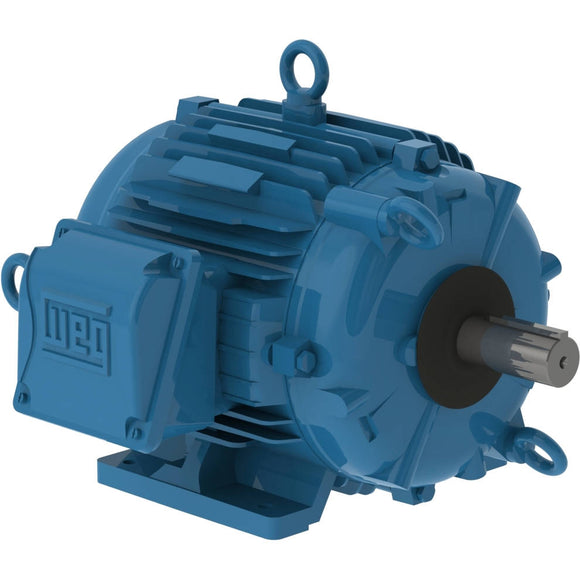

01018AT3ECT215TF1-W22 WEG 10HP Cooling Tower Electric Motor, 1800RPM

$1,351.91 USD $1,519.00 USD Save $167.09 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 01018AT3ECT215TF1-W2 Barcode: 7909018576510

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 213/5T
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 208-230/460 V
Rated current 27.4-24.8/12.4 A
L. R. Amperes 176-159/79.4 A
LRC 6.4x(Code H)
No load current 9.74-11.3/5.65 A
Rated torque 29.8 ft.lb
Locked rotor torque 200 %
Breakdown torque 295 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 1.51 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 58.0 dB(A)
Approx. weight³ 181 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.0  91.7  91.7

Power factor

50% 75% 100%
0.66  0.77  0.83
Frame 213/5T
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 380 V
Rated current 11.2 A
L. R. Amperes 75.0 A
LRC 6.7x(Code H)
No load current 5.60 A
Rated torque 26.9 ft.lb
Locked rotor torque 200 %
Breakdown torque 300 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 1.51 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 181 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.0  90.0  89.8

Power factor

50% 75% 100%
0.62  0.76  0.83
Frame 213/5T
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 400 V
Rated current 11.0 A
L. R. Amperes 78.1 A
LRC 7.1x(Code J)
No load current 6.00 A
Rated torque 26.8 ft.lb
Locked rotor torque 240 %
Breakdown torque 340 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 1.51 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 181 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.2  89.9  90.1

Power factor

50% 75% 100%
0.58  0.73  0.80
Frame 213/5T
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 415 V
Rated current 10.9 A
L. R. Amperes 81.7 A
LRC 7.5x(Code J)
No load current 6.35 A
Rated torque 26.8 ft.lb
Locked rotor torque 260 %
Breakdown torque 360 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 1.51 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 181 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.7  89.8  90.3

Power factor

50% 75% 100%
0.55  0.70  0.78
Frame 213/5T
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1450 rpm
Slip 3.33 %
Rated voltage 380 V
Rated current 15.0 A
L. R. Amperes 76.5 A
LRC 5.1x(Code F)
No load current 5.60 A
Rated torque 36.2 ft.lb
Locked rotor torque 150 %
Breakdown torque 220 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 1.51 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 181 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.3  90.2  88.5

Power factor

50% 75% 100%
0.73  0.82  0.86
Frame 213/5T
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 400 V
Rated current 14.2 A
L. R. Amperes 79.5 A
LRC 5.6x(Code F)
No load current 6.00 A
Rated torque 36.1 ft.lb
Locked rotor torque 180 %
Breakdown torque 250 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 1.51 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 181 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.3  90.2  89.5

Power factor

50% 75% 100%
0.69  0.80  0.85
Frame 213/5T
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 415 V
Rated current 13.8 A
L. R. Amperes 82.8 A
LRC 6.0x(Code G)
No load current 6.35 A
Rated torque 36.0 ft.lb
Locked rotor torque 190 %
Breakdown torque 270 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 1.51 sq.ft.lb
Design B
