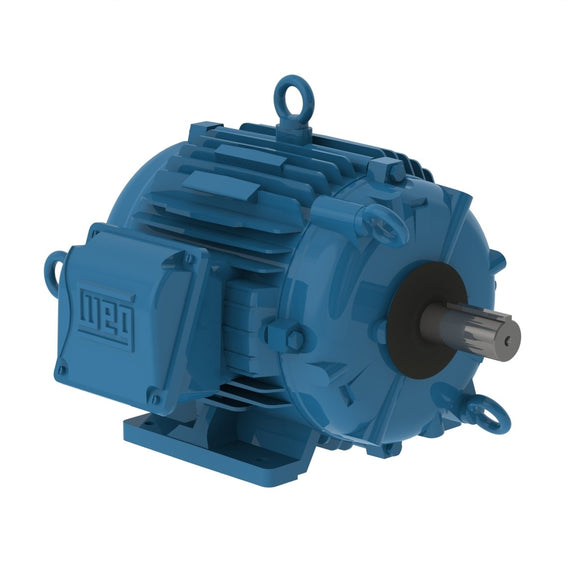

00512AT3ECT215TF1-W2 WEG 5HP Cooling Tower Electric Motor, 1200RPM

$1,391.07 USD $1,563.00 USD Save $171.93 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00512AT3ECT215TF1-W2 Barcode: 7909158306695

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!
Frame 213/5T
Output 5 HP (3.7 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1170 rpm
Slip 2.50 %
Rated voltage 208-230/460 V
Rated current 15.1-13.7/6.83 A
L. R. Amperes 103-92.9/46.4 A
LRC 6.8x(Code J)
No load current 5.95-6.90/3.45 A
Rated torque 22.4 ft.lb
Locked rotor torque 170 %
Breakdown torque 260 %
Locked rotor time 102s (cold) 57s (hot)
Moment of inertia (J) 1.47 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC418 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
Approx. weight³ 178 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.5  89.5  89.5

Power factor

50% 75% 100%
0.58  0.70  0.76
