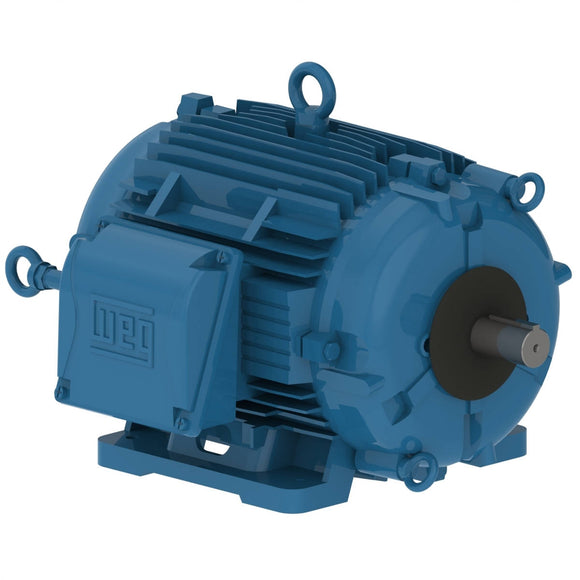

00318AT3ECT182TF1-W22 WEG 3HP Cooling Tower Electric Motor, 1800RPM

$715.56 USD $804.00 USD Save $88.44 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00318AT3ECT182TF1-W2 Barcode: 7909018579979

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 182T
Output 3 HP (2.2 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 208-230/460 V
Rated current 8.65-7.82/3.91 A
L. R. Amperes 70.1-63.3/31.7 A
LRC 8.1x(Code K)
No load current 3.45-4.00/2.00 A
Rated torque 8.95 ft.lb
Locked rotor torque 229 %
Breakdown torque 340 %
Locked rotor time 41s (cold) 23s (hot)
Moment of inertia (J) 0.3401 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 91.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.5  88.5  89.5

Power factor

50% 75% 100%
0.61  0.73  0.79
Frame 182T
Output 3 HP (2.2 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1445 rpm
Slip 3.67 %
Rated voltage 380 V
Rated current 4.60 A
L. R. Amperes 29.0 A
LRC 6.3x(Code H)
No load current 2.00 A
Rated torque 10.9 ft.lb
Locked rotor torque 180 %
Breakdown torque 260 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.3401 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 91.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.5  87.5  87.5

Power factor

50% 75% 100%
0.68  0.79  0.83
Frame 182T
Output 3 HP (2.2 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1450 rpm
Slip 3.33 %
Rated voltage 400 V
Rated current 4.48 A
L. R. Amperes 31.4 A
LRC 7.0x(Code J)
No load current 2.15 A
Rated torque 10.9 ft.lb
Locked rotor torque 210 %
Breakdown torque 290 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.3401 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 91.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.5  87.5  87.5

Power factor

50% 75% 100%
0.64  0.76  0.81
Frame 182T
Output 3 HP (2.2 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 415 V
Rated current 4.43 A
L. R. Amperes 33.2 A
LRC 7.5x(Code J)
No load current 2.25 A
Rated torque 10.8 ft.lb
Locked rotor torque 240 %
Breakdown torque 320 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.3401 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 91.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.5  87.5  87.5

Power factor

50% 75% 100%
0.61  0.73  0.79

Features

Frame Material Cast Iron
Impregnation Method Double impregnation polyester
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 1"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Without fan
Bearing cap No-Without Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector

Bearing details

  Drive End Non Drive End
Bearing type 6207 2RS   6206 2RS
Sealing V'Ring  V'Ring
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
176 lb  267 lb
