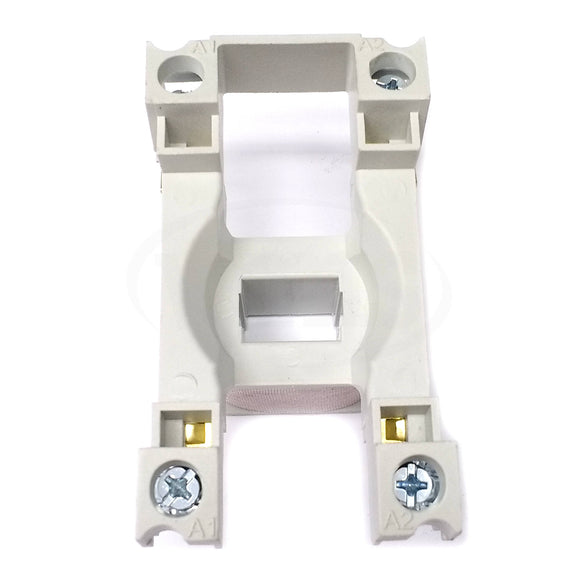

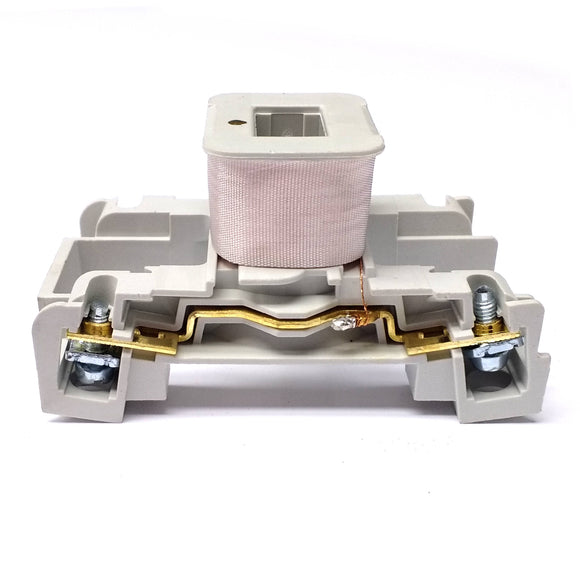

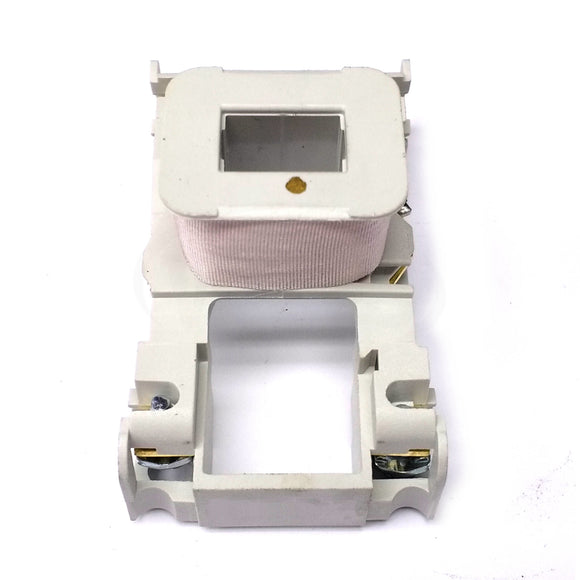

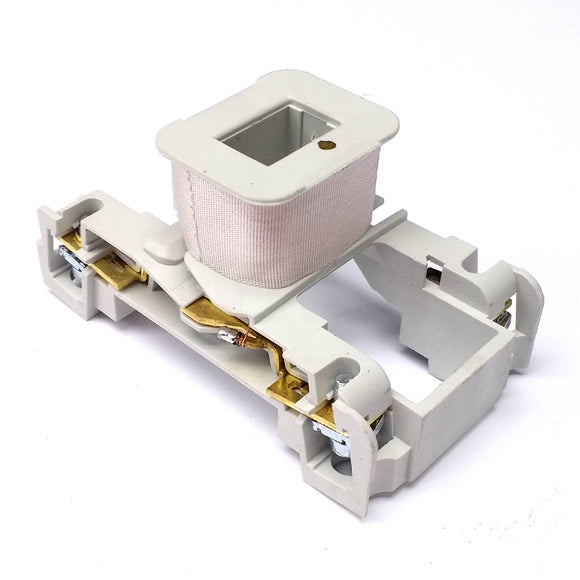

Overview :
| Brand | WEG |
|---|---|
| Catalog Number | BCA4-25V47 |
| For use on | CWM9 CWM9N CWM12 CWM18 CWM18N CWM25 |
| Number of Terminals | 4 |
| Type | AC Coil |
| Voltage | 480VAC 60Hz 400-415VAC 50Hz |
| UPC | 7890355031001 |
| Weight | 0.14 lbs |
Control Circuit Ratings – AC Coil :
| Rated Insulation Voltage (Ui) | IEC; VDE 0660: 1000 Volts UL; CSA: 600 Volts |
|---|---|
| Rated Operating Voltage (Ue) | IEC; VDE 0660: 690 Volts UL; CSA: 600 Volts |
| Coil Operating Limits | Pick-up xUc: 0.4-0.76 Drop-out xUc: 0.25-0.65 |
| Operating Time | Coil Energization – N.O.: 8-20 ms Coil de-energization – N.O.: 6-13 ms |
| Coil Consumption | Sealed: 4-7.2 VA Inrush: 70 VA |
| Thermal Power Dissipation | 60Hz: 2.6 W |
| Power Factor | Closed: 0.28 Cos phi Opened: 0.85 Cos phi |
| Stranded / Solid (UL / CSA) | 2x12-10 AWG |
