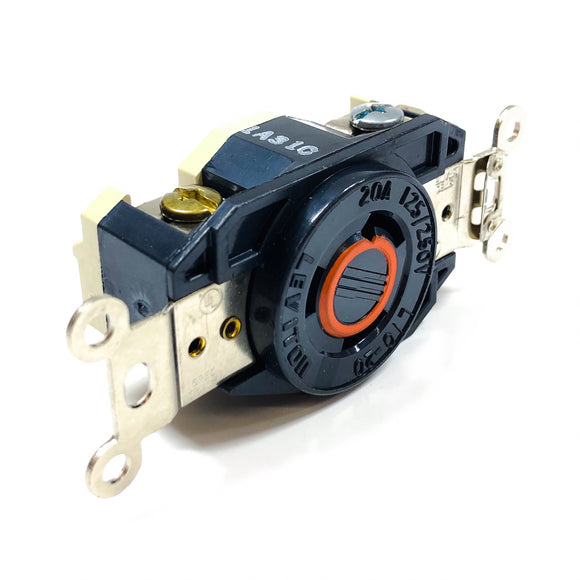

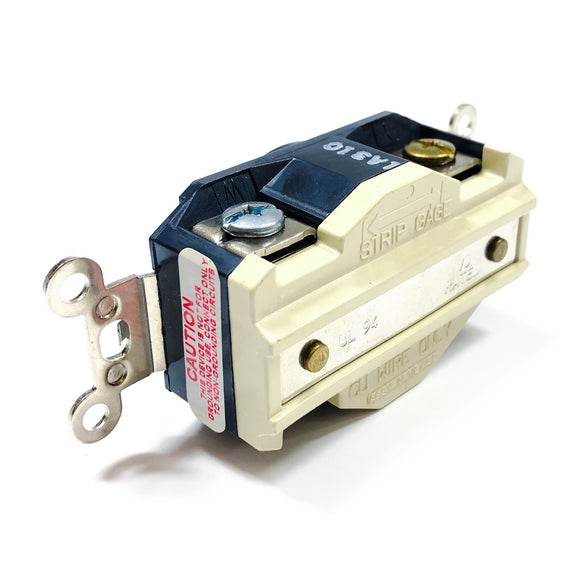

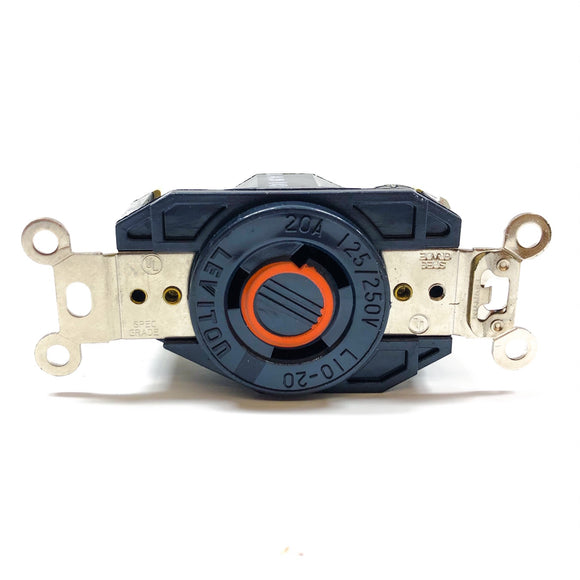

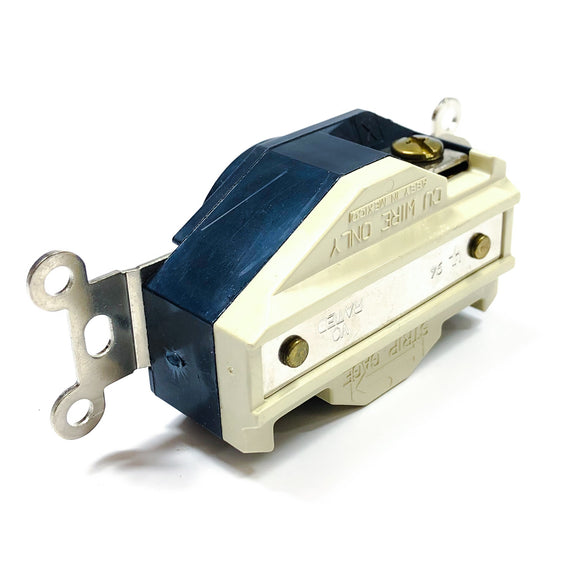

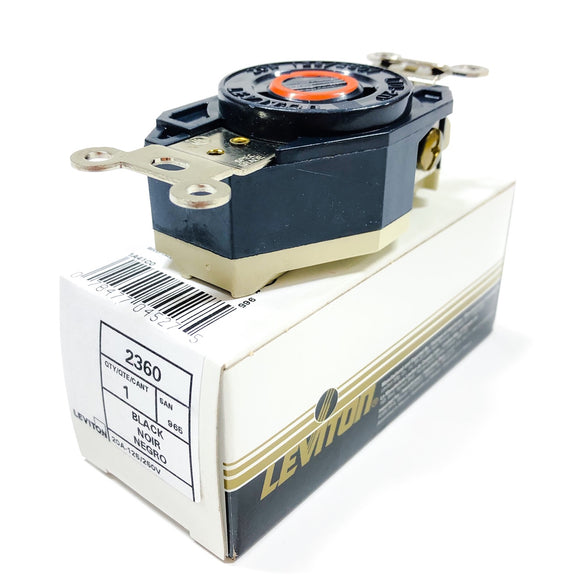

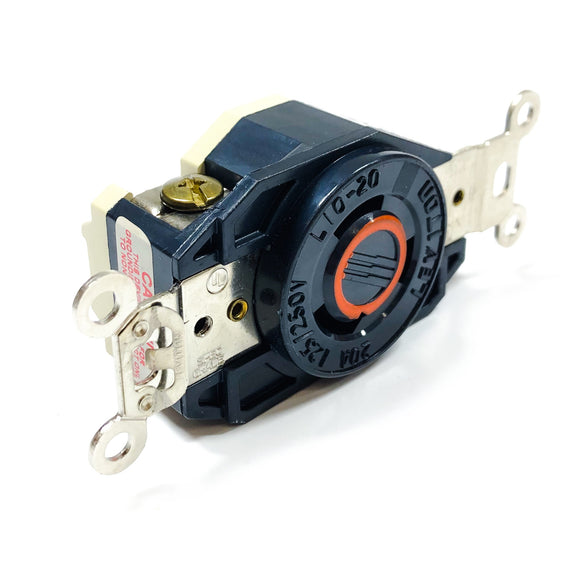

2360 Leviton 20-Amp, 125/250-Volt, Flush Mounting Locking Receptacle, Black

20 Amp, 125/250 Volt, NEMA L10-20R, 3P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Non-Grounding, V-0-MAX - BLACK


Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.

AC Horsepower Ratings
At Rated Voltage: 2 HP L-L / 1 HP L-N

Electrical Specifications
Amperage: 20 A
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Non-Grounding
Pole: 3
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 125/250 VAC
Wire: 3

Environmental Specifications
Flammability: Rated V-0 per UL 94
Operating Temperature: -40°C to 60°C

Material Specifications
Base Material: Valox
Body Material: Nylon
Color: Black
Cover Material: Valox 357
Face Material: Ultramid
Ground Contacts: Brass
Grounding Screw: Chromated Brass
Line Contacts: Brass
Strap Material: Nickel-Plated Brass
Terminal Clamps: Nickel-Plated Brass
Terminal Screws: Chromated Brass

Mechanical Specifications
Product ID: Ratings and NEMA I.D. permanently marked on device
Terminal Accom.: 14-8 AWG
Terminal ID: Marked on Device
Termination: Back & Side

Product Features
Base Material: Valox
Color: Black
Face Material: Ultramid
NEMA: L10-20R

Standards and Certifications
ANSI: C-73
CSA: C22.2 No. 42
NEMA: WD-1 & WD-6
NOM: 057
UL: 498
UL Fed Spec: W-C-596
