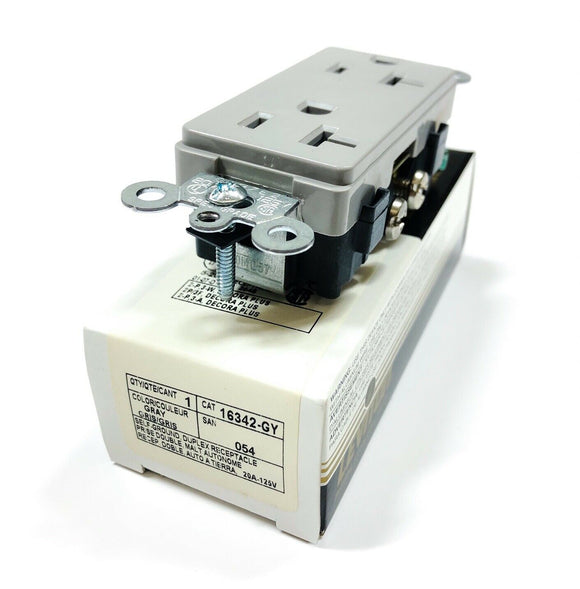

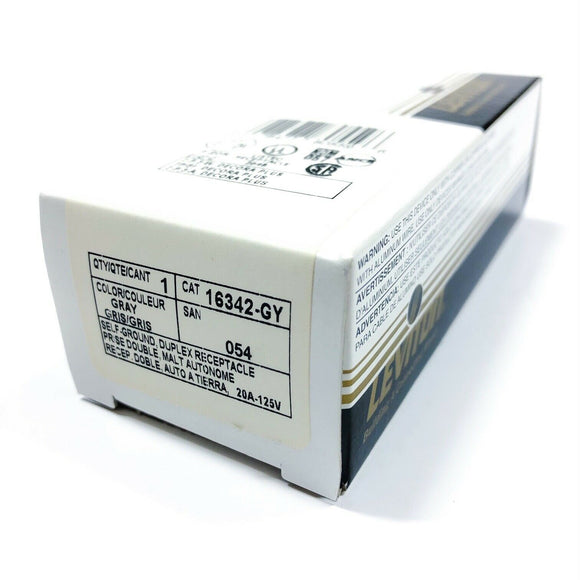

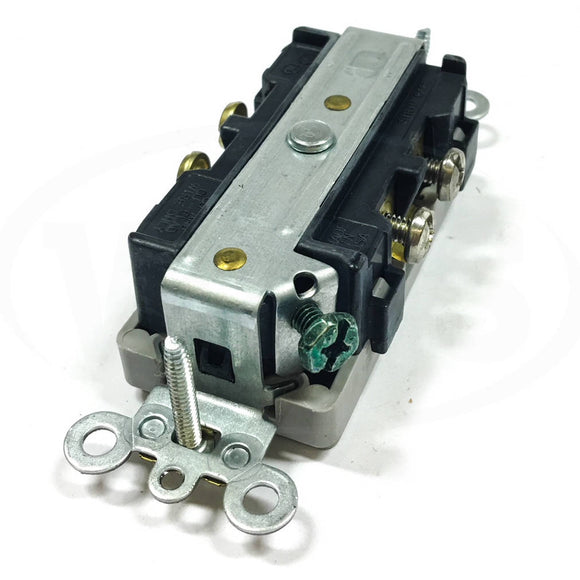

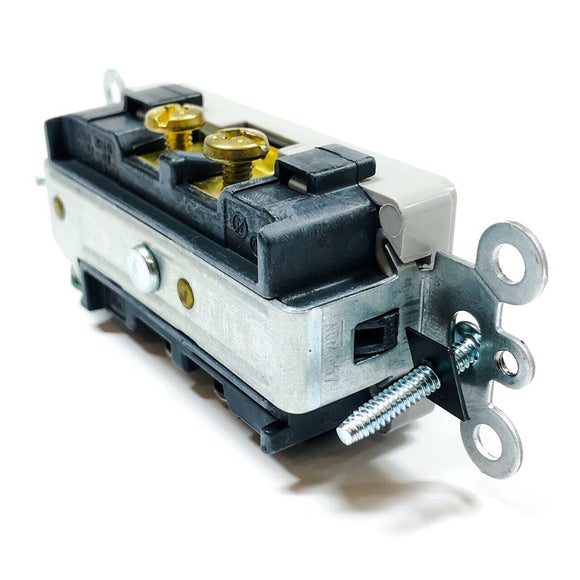

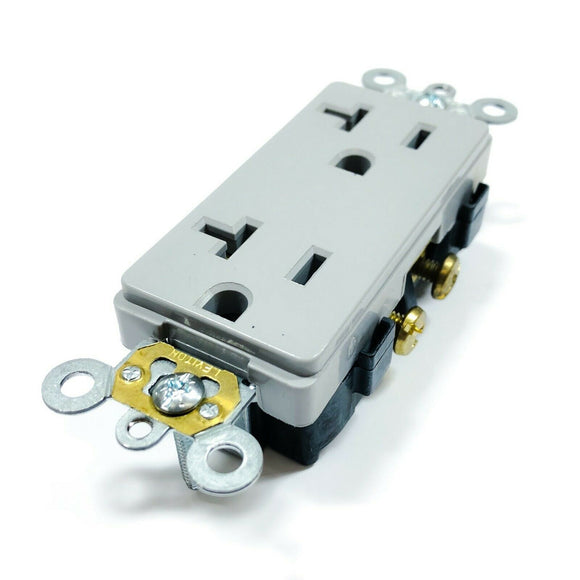

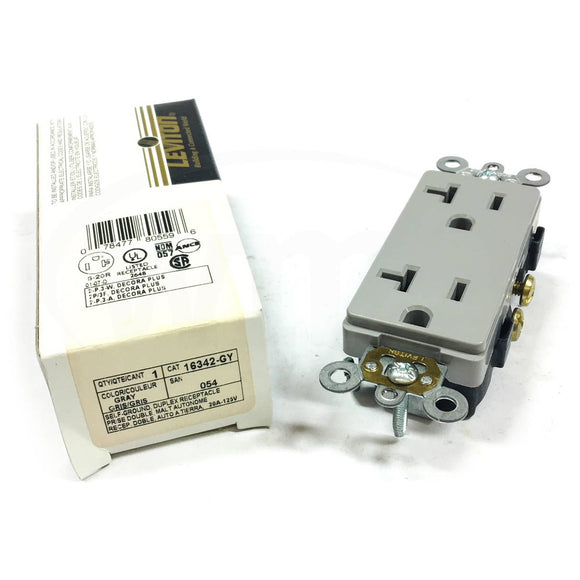

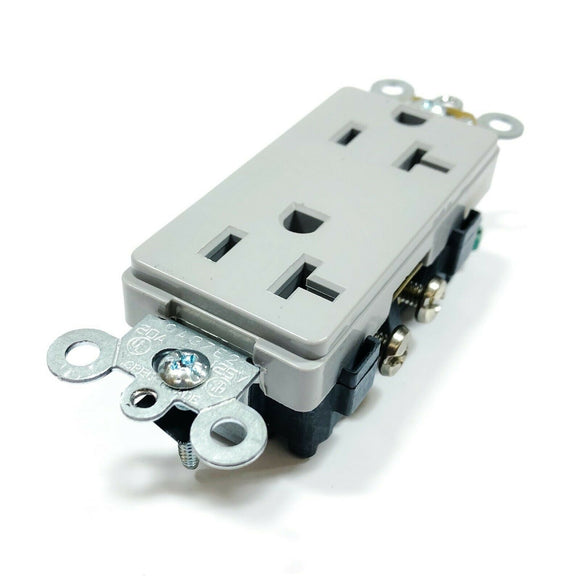

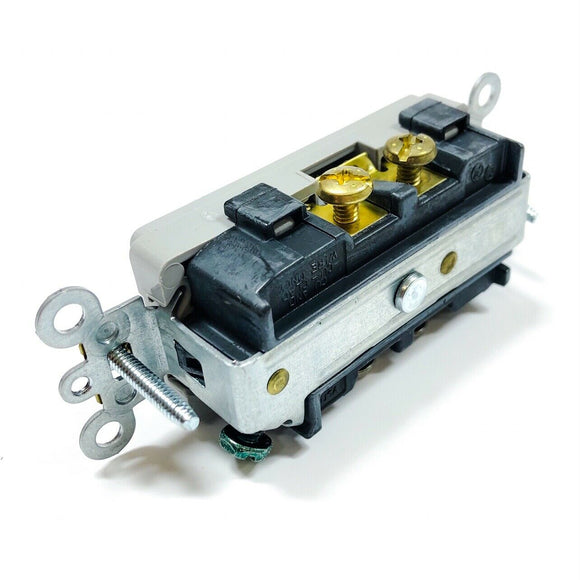

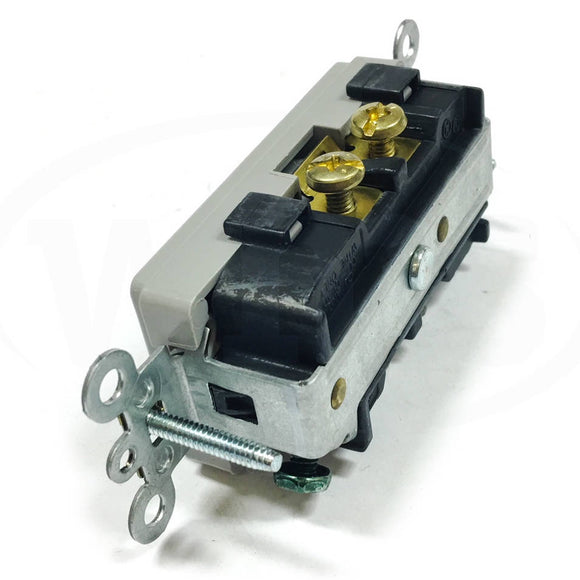

16342-GY Leviton Decora Plus Duplex Receptacle

Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 20 Amp, 125 Volt, Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Gray


Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.

AC Horsepower Ratings
At Rated Voltage: 1 HP

Electrical Specifications
Amperage: 20 A
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 3000V per UL498
Grounding: Self-Grounding
Pole: 2
Temperature Rise: Max 30C temperature rise at full rated current
Voltage: 125 VAC
Wire: 3

Environmental Specifications
Flammability: Rated V-2 per UL 94
Operating Temperature: -40°C to 60°C

Material Specifications
Body Material: PBT Polyester Blend
Clamp Nuts: Steel
Color: Gray
Face Material: PBT Polyester Blend
Ground Clips: Brass
Grounding Screw: #8 Hex Head, Triple-Drive Brass
Line Contacts: .030" Brass
Strap Material: Steel (Galvanized G60)
Terminal Screws: #8 Triple Drive Brass

Mechanical Specifications
Product ID: Ratings are permanently marked on device
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Side Wire

Product Features
Brand: Decora Plus
Color: Gray
Device Type: Duplex Receptacle Outlet
Feature 4: Smooth Face
Grade: Commercial Specification Grade
Grounding: Self-Grounding
NEMA: 5-20R

Standards and Certifications
ANSI: C-73
NEMA: WD-1 & WD-6
