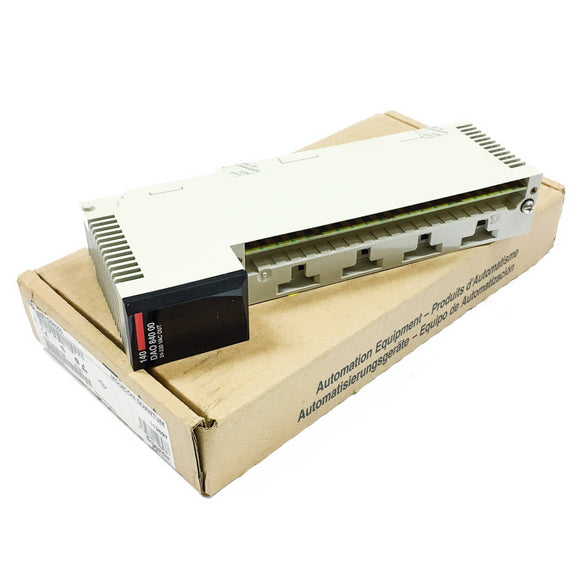

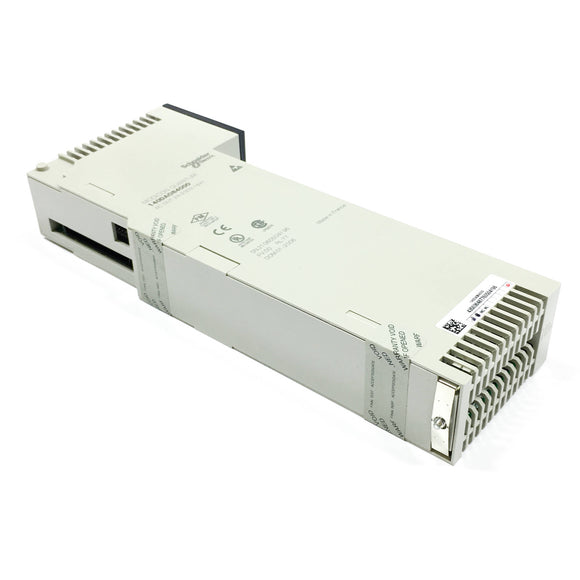

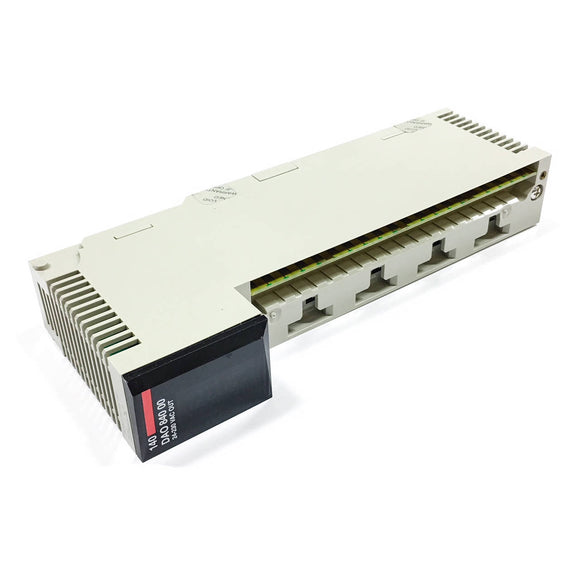

Schneider Electric 140-DAO-840-00 Modicon Quantum Discrete AC Output Module, 16x1, 24-230V
SN: 21060504196 PV: 00 RL: 77 DOM: 01-2006
Made in France
SN: 21060504196 PV: 00 RL: 77 DOM: 01-2006
Made in France
| range of product |
Modicon Quantum automation platform |
|
|---|---|---|
| product or component type |
AC discrete output modules |
|
| discrete output number |
16 |
|
| discrete output type |
Isolated |
|
|---|---|---|
| group of channels |
16 groups of 1 channel |
|
| supply frequency |
47...63 Hz |
|
| voltage drop |
1.5 V |
|
| discrete output voltage |
20...253 V AC |
|
| addressing requirement |
1 output word |
|
| absolute maximum output |
300 Vrms for 10 s AC 400 Vrms 1 cycle AC |
|
| maximum load current |
4 A rms sum of four points, continuous 1 mA rms 24 Vrms off state leakage per output 1 mA rms 48 Vrms off state leakage per output 16 A rms per module 2 mA rms 115 Vrms off state leakage per output 2.5 mA rms 230 Vrms off state leakage per output 3 A rms 200...230 V per output 4 A rms 24...115 V per output |
|
| surge current |
<= 10 A during 3 cycles per point <= 20 A during 2 cycles per point <= 30 A during 1 cycle per point |
|
| dV/dt |
400 V/ms |
|
| response time |
<= 0.5 ms at state 0 to state 1 <= 0.5 ms at state 1 to state 0 |
|
| protection type |
Internal by RC filter |
|
| power dissipation |
1.85 + (1.1 V x total module load current) |
|
| associated fuse rating |
5 A |
|
| marking |
CE |
|
| local signalling |
1 LED green bus communication is present (Active) 1 LED red external fault detected (F) 16 LEDs green input status |
|
| bus current requirement |
350 mA |
|
| module format |
Standard |
|
| product weight |
0.485 kg |
|
| product certifications |
CUL FM Class 1 Division 2 |
|
|---|---|---|
| standards |
CSA C22.2 No 142 UL 508 |
|
| electromagnetic compatibility |
Electrostatic discharge immunity test (test level:4 kV, contact discharge) conforming to IEC 801-2 Electrostatic discharge immunity test (test level:8 kV, air discharge) conforming to IEC 801-2 Susceptibility to electromagnetic fields (test level:10 V/m, 80...1000 MHz) conforming to IEC 801-3 |
|
| ambient air temperature for operation |
0...60 °C |
|
| ambient air temperature for storage |
-40...85 °C |
|
| relative humidity |
95 % without condensation |
|
| operating altitude |
<= 5000 m |
|
