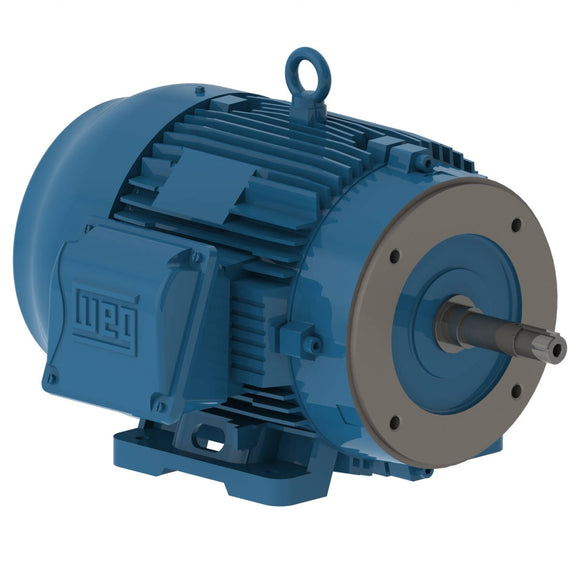

Electric Motors
| Frame | 213/5JM |
|---|---|
| Output | 15 HP (11 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3510 rpm |
| Slip | 2.50 % |
| Rated voltage | 230/460 V |
| Rated current | 34.0/17.0 A |
| L. R. Amperes | 258/129 A |
| LRC | 7.6x(Code H) |
| No load current | 10.0/5.00 A |
| Rated torque | 22.4 ft.lb |
| Locked rotor torque | 240 % |
| Breakdown torque | 280 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 0.6362 sq.ft.lb |
|---|---|
| Design | A |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 68.0 dB(A) |
| Approx. weight³ | 179 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
90.2 |
91.0 |
91.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.76 |
0.85 |
0.89 |
| Frame | 213/5JM |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2930 rpm |
| Slip | 2.33 % |
| Rated voltage | 380 V |
| Rated current | 14.4 A |
| L. R. Amperes | 124 A |
| LRC | 8.6x(Code K) |
| No load current | 4.89 A |
| Rated torque | 17.9 ft.lb |
| Locked rotor torque | 280 % |
| Breakdown torque | 340 % |
| Locked rotor time | 21s (cold) 12s (hot) |
| Moment of inertia (J) | 0.6362 sq.ft.lb |
|---|---|
| Design | A |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 63.0 dB(A) |
| Approx. weight³ | 179 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
89.5 |
90.1 |
90.1 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.72 |
0.82 |
0.88 |
| Frame | 213/5JM |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2935 rpm |
| Slip | 2.17 % |
| Rated voltage | 400 V |
| Rated current | 14.1 A |
| L. R. Amperes | 133 A |
| LRC | 9.4x(Code L) |
| No load current | 5.56 A |
| Rated torque | 17.9 ft.lb |
| Locked rotor torque | 320 % |
| Breakdown torque | 380 % |
| Locked rotor time | 19s (cold) 11s (hot) |
| Moment of inertia (J) | 0.6362 sq.ft.lb |
|---|---|
| Design | A |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 63.0 dB(A) |
| Approx. weight³ | 179 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
89.0 |
90.1 |
90.1 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.68 |
0.79 |
0.85 |
| Frame | 213/5JM |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2940 rpm |
| Slip | 2.00 % |
| Rated voltage | 415 V |
| Rated current | 14.0 A |
| L. R. Amperes | 140 A |
| LRC | 10.0x(Code M) |
| No load current | 6.15 A |
| Rated torque | 17.9 ft.lb |
| Locked rotor torque | 340 % |
| Breakdown torque | 420 % |
| Locked rotor time | 19s (cold) 11s (hot) |
| Moment of inertia (J) | 0.6362 sq.ft.lb |
|---|---|
| Design | A |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 63.0 dB(A) |
| Approx. weight³ | 179 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
88.5 |
90.1 |
90.1 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.64 |
0.77 |
0.83 |
| Frame | 213/5JM |
|---|---|
| Output | 15 HP (11 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2885 rpm |
| Slip | 3.83 % |
| Rated voltage | 380 V |
| Rated current | 20.6 A |
| L. R. Amperes | 124 A |
| LRC | 6.0x(Code F) |
| No load current | 4.89 A |
| Rated torque | 27.3 ft.lb |
| Locked rotor torque | 190 % |
| Breakdown torque | 220 % |
| Locked rotor time | 21s (cold) 12s (hot) |
| Moment of inertia (J) | 0.6362 sq.ft.lb |
|---|---|
| Design | A |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 63.0 dB(A) |
| Approx. weight³ | 179 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
88.5 |
89.0 |
89.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.81 |
0.88 |
0.91 |
| Frame | 213/5JM |
|---|---|
| Output | 15 HP (11 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2900 rpm |
| Slip | 3.33 % |
| Rated voltage | 400 V |
| Rated current | 19.7 A |
| L. R. Amperes | 132 A |
| LRC | 6.7x(Code G) |
| No load current | 5.56 A |
| Rated torque | 27.2 ft.lb |
| Locked rotor torque | 220 % |
| Breakdown torque | 250 % |
| Locked rotor time | 19s (cold) 11s (hot) |
| Moment of inertia (J) | 0.6362 sq.ft.lb |
|---|---|
| Design | A |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 63.0 dB(A) |
| Approx. weight³ | 179 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
89.0 |
89.5 |
89.7 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.78 |
0.86 |
0.90 |
| Frame | 213/5JM |
|---|---|
| Output | 15 HP (11 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2905 rpm |
| Slip | 3.17 % |
| Rated voltage | 415 V |
| Rated current | 19.3 A |
| L. R. Amperes | 139 A |
| LRC | 7.2x(Code H) |
| No load current | 6.15 A |
| Rated torque | 27.1 ft.lb |
| Locked rotor torque | 240 % |
| Breakdown torque | 280 % |
| Locked rotor time | 19s (cold) 11s (hot) |
| Moment of inertia (J) | 0.6362 sq.ft.lb |
|---|---|
| Design | A |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 63.0 dB(A) |
| Approx. weight³ | 179 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
89.5 |
90.0 |
90.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.75 |
0.84 |
0.88 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1" |
| Terminal Block | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 207A (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Pump Seal | Mechanical Seal |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 9 |
