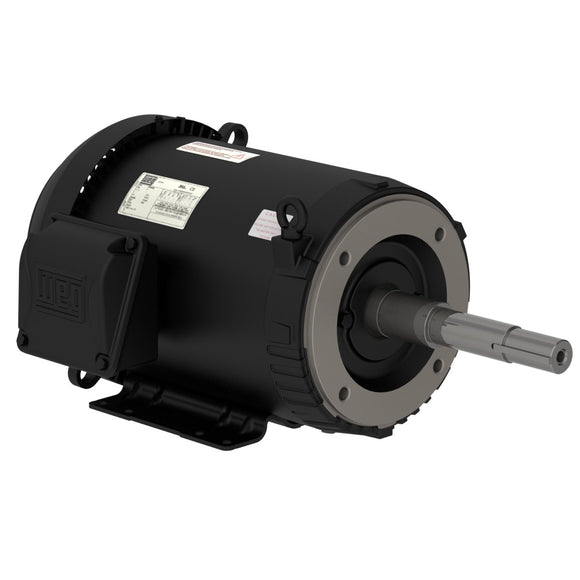

01018ET3E215JP-S WEG 10HP JP Close Coupled Pump Electric Motor, 1800RPM

$1,622.47 USD $1,823.00 USD Save $200.53 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 01018ET3E215JP-S Barcode: 7909322301068

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 213/5JP
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 208-230/460 V
Rated current 27.0-24.4/12.2 A
L. R. Amperes 189-171/85.4 A
LRC 7.0x(Code H)
No load current 9.56-11.1/5.54 A
Rated torque 29.4 ft.lb
Locked rotor torque 250 %
Breakdown torque 300 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 1.07 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 145 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.0  91.0  91.7

Power factor

50% 75% 100%
0.67  0.78  0.84
Frame 213/5JP
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 190/380 V
Rated current 22.4/11.2 A
L. R. Amperes 170/85.1 A
LRC 7.6x(Code J)
No load current 10.9/5.46 A
Rated torque 26.5 ft.lb
Locked rotor torque 250 %
Breakdown torque 320 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 1.07 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 57.0 dB(A)
Approx. weight³ 145 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.1  90.7  90.1

Power factor

50% 75% 100%
0.64  0.76  0.83
Frame 213/5JP
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 220/415 V
Rated current 20.6/10.9 A
L. R. Amperes 179/94.8 A
LRC 8.7x(Code L)
No load current 12.1/6.43 A
Rated torque 26.4 ft.lb
Locked rotor torque 320 %
Breakdown torque 390 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 1.07 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 57.0 dB(A)
Approx. weight³ 145 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.7  90.2  90.3

Power factor

50% 75% 100%
0.56  0.69  0.78

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.377"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Rolled Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
