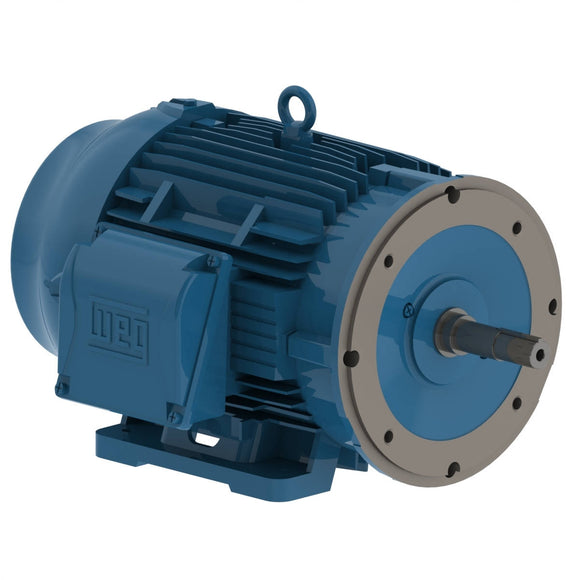

01012ET3E256JM-W22 WEG 10HP JM Close Coupled Pump Electric Motor, 1200RPM

$2,651.31 USD $2,979.00 USD Save $327.69 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 01012ET3E256JM-W22 Barcode: 7894171422319

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 254/6JM
Output 10 HP (7.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 230/460 V
Rated current 26.6/13.3 A
L. R. Amperes 173/86.5 A
LRC 6.5x(Code H)
No load current 12.0/6.00 A
Rated torque 44.7 ft.lb
Locked rotor torque 229 %
Breakdown torque 280 %
Locked rotor time 46s (cold) 26s (hot)
Moment of inertia (J) 4.43 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 305 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.2  91.0  91.0

Power factor

50% 75% 100%
0.63  0.74  0.78
Frame 254/6JM
Output 10 HP (7.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 965 rpm
Slip 3.50 %
Rated voltage 380 V
Rated current 15.4 A
L. R. Amperes 78.5 A
LRC 5.1x(Code F)
No load current 6.40 A
Rated torque 54.4 ft.lb
Locked rotor torque 170 %
Breakdown torque 220 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 4.43 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 57.0 dB(A)
Approx. weight³ 305 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.2  89.5  89.1

Power factor

50% 75% 100%
0.66  0.79  0.83
Frame 254/6JM
Output 10 HP (7.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 970 rpm
Slip 3.00 %
Rated voltage 400 V
Rated current 14.8 A
L. R. Amperes 84.4 A
LRC 5.7x(Code G)
No load current 6.80 A
Rated torque 54.1 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 4.43 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 57.0 dB(A)
Approx. weight³ 305 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.2  90.2  89.5

Power factor

50% 75% 100%
0.63  0.77  0.82
Frame 254/6JM
Output 10 HP (7.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 975 rpm
Slip 2.50 %
Rated voltage 415 V
Rated current 14.4 A
L. R. Amperes 87.8 A
LRC 6.1x(Code H)
No load current 7.20 A
Rated torque 53.9 ft.lb
Locked rotor torque 220 %
Breakdown torque 260 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 4.43 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 57.0 dB(A)
Approx. weight³ 305 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.5  90.2  89.5

Power factor

50% 75% 100%
0.60  0.75  0.81

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 1 1/2"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Pump Seal Mechanical Seal
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
