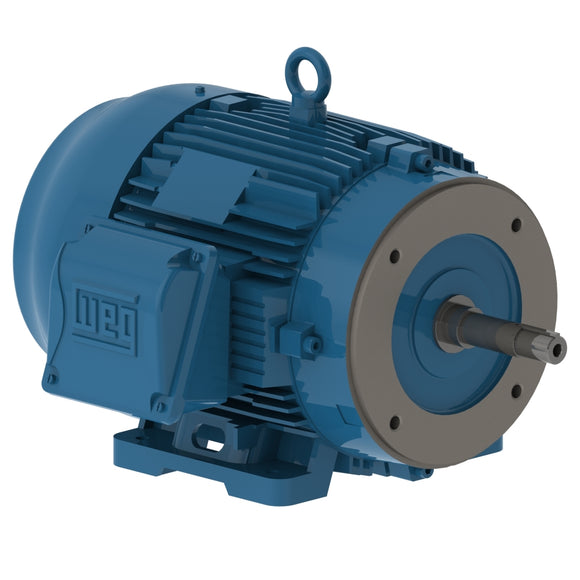

00536ET3E184JM-W22 WEG 5HP JM Close Coupled Pump Electric Motor, 3600RPM
00536ET3E184JM-W22 WEG 5HP JM Close Coupled Pump Electric Motor, 3600RPM
00536ET3E184JM-W22 WEG 5HP JM Close Coupled Pump Electric Motor, 3600RPM
00536ET3E184JM-W22 WEG 5HP JM Close Coupled Pump Electric Motor, 3600RPM
00536ET3E184JM-W22 WEG 5HP JM Close Coupled Pump Electric Motor, 3600RPM

00536ET3E184JM-W22 WEG 5HP Pump Motor, 3600RPM

$889.97 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00536ET3E184JM-W22 Barcode: 7909018390642

IC411 - TEFC, IP55, 182JM/184JM Frame, 208-230/460V 3-Phase 60Hz, 12034382, Foot Mounted, Cast Iron Frame

1 In Stock!

Description Product Specs Manufacturer

Electric Motors

Frame 182/4JM
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3485 rpm
Slip 3.19 %
Rated voltage 208-230/460 V
Rated current 13.1-11.8/5.90 A
L. R. Amperes 99.3-89.7/44.8 A
LRC 7.6x(Code J)
No load current 3.45-4.00/2.00 A
Rated torque 7.43 ft.lb
Locked rotor torque 229 %
Breakdown torque 350 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 0.2233 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 93.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.5  88.5  88.5

Power factor

50% 75% 100%
0.76  0.85  0.89
Frame 182/4JM
Output 4 HP (3 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2890 rpm
Slip 3.67 %
Rated voltage 380 V
Rated current 5.79 A
L. R. Amperes 42.8 A
LRC 7.4x(Code H)
No load current 2.00 A
Rated torque 7.17 ft.lb
Locked rotor torque 229 %
Breakdown torque 320 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.2233 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 93.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.3  87.7  87.5

Power factor

50% 75% 100%
0.74  0.85  0.90
Frame 182/4JM
Output 4 HP (3 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2900 rpm
Slip 3.33 %
Rated voltage 400 V
Rated current 5.57 A
L. R. Amperes 45.1 A
LRC 8.1x(Code J)
No load current 2.15 A
Rated torque 7.15 ft.lb
Locked rotor torque 270 %
Breakdown torque 370 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.2233 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 93.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.3  88.2  88.3

Power factor

50% 75% 100%
0.71  0.83  0.88
Frame 182/4JM
Output 4 HP (3 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2910 rpm
Slip 3.00 %
Rated voltage 415 V
Rated current 5.43 A
L. R. Amperes 48.3 A
LRC 8.9x(Code K)
No load current 2.25 A
Rated torque 7.12 ft.lb
Locked rotor torque 300 %
Breakdown torque 400 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.2233 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 93.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.1  88.2  88.3

Power factor

50% 75% 100%
0.68  0.81  0.87
Frame 182/4JM
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2850 rpm
Slip 5.00 %
Rated voltage 380 V
Rated current 7.14 A
L. R. Amperes 42.1 A
LRC 5.9x(Code F)
No load current 2.00 A
Rated torque 9.09 ft.lb
Locked rotor torque 180 %
Breakdown torque 250 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.2233 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 93.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.5  87.5  86.5

Power factor

50% 75% 100%
0.81  0.88  0.91
Frame 182/4JM
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2870 rpm
Slip 4.33 %
Rated voltage 400 V
Rated current 6.78 A
L. R. Amperes 44.7 A
LRC 6.6x(Code G)
No load current 2.15 A
Rated torque 9.03 ft.lb
Locked rotor torque 210 %
Breakdown torque 290 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.2233 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 93.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.5  88.5  87.5

Power factor

50% 75% 100%
0.78  0.87  0.90
Frame 182/4JM
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2880 rpm
Slip 4.00 %
Rated voltage 415 V
Rated current 6.61 A
L. R. Amperes 47.6 A
LRC 7.2x(Code H)
No load current 2.25 A
Rated torque 8.99 ft.lb
Locked rotor torque 240 %
Breakdown torque 320 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.2233 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 93.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.5  88.5  87.5

Power factor

50% 75% 100%
0.76  0.85  0.89

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Rolled Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Pump Seal Mechanical Seal

Bearing details

  Drive End Non Drive End
Bearing type 6307 ZZ   6206 ZZ
Sealing V'Ring  V'Ring
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
139 lb  233 lb
Application
  • Close Coupled Pump
Enclosure
  • TEFC
Frame Size
  • 182JM
  • 184JM
Horsepower
  • 5HP
Input Phase
  • 3-Phase
Input Voltage
  • 208VAC
  • 230VAC
  • 460VAC
Series
  • W22
Speed
  • 3600RPM
Type
  • Electric Motor
UPC
  • 7909018390642
Weight
  • 106.0 lb
Frame Material
  • Cast Iron
Service Factor
  • 1.25
Full Load Efficiency
  • 88.5%
'C' Dimension
  • 17.411 Inches
