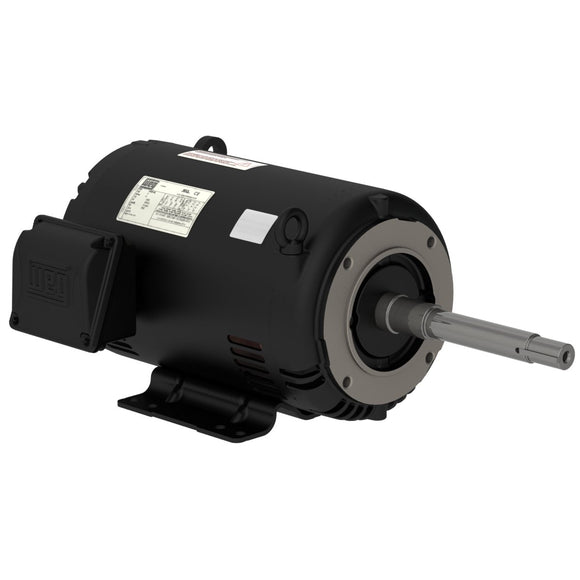

00518OT3E184JP-S WEG 5HP JP Close Coupled Pump Electric Motor, 1800RPM

$754.72 USD $848.00 USD Save $93.28 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00518OT3E184JP-S Barcode: 7909158551439

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 182/4JP
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 208-230/460 V
Rated current 14.0-12.7/6.33 A
L. R. Amperes 101-91.2/45.6 A
LRC 7.2x(Code J)
No load current 5.43-6.29/3.15 A
Rated torque 14.7 ft.lb
Locked rotor torque 200 %
Breakdown torque 310 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.4003 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
Approx. weight³ 90.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.5  88.5  89.5

Power factor

50% 75% 100%
0.63  0.76  0.82
Frame 182/4JP
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1445 rpm
Slip 3.67 %
Rated voltage 190/380 V
Rated current 15.4/7.71 A
L. R. Amperes 89.4/44.7 A
LRC 5.8x(Code G)
No load current 6.19/3.10 A
Rated torque 17.9 ft.lb
Locked rotor torque 140 %
Breakdown torque 220 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.4003 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 90.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.2  87.3  84.8

Power factor

50% 75% 100%
0.71  0.82  0.86
Frame 182/4JP
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 220/415 V
Rated current 13.5/7.18 A
L. R. Amperes 94.8/50.3 A
LRC 7.0x(Code J)
No load current 6.80/3.61 A
Rated torque 17.8 ft.lb
Locked rotor torque 180 %
Breakdown torque 270 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.4003 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 90.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.5  87.7  86.4

Power factor

50% 75% 100%
0.64  0.76  0.83

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.118"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
