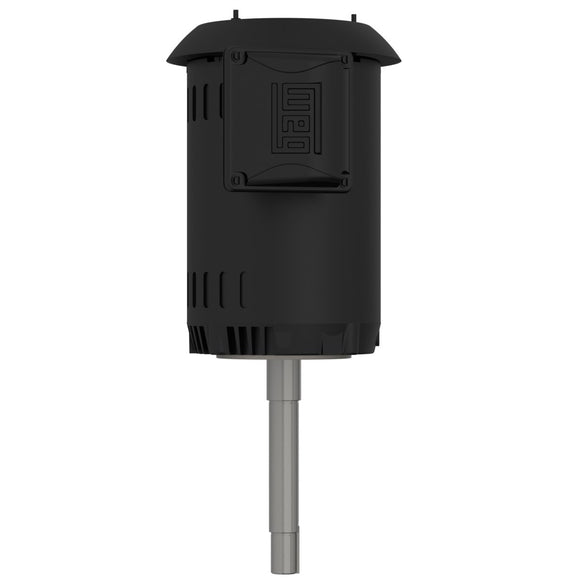

00156OT3E143JPV-S WEG 1.5HP JP Close Coupled Pump Electric Motor, 3600RPM

$524.21 USD $589.00 USD Save $64.79 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00156OT3E143JPV-S Barcode: 7909322282152

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!
Frame 143/5JP
Output 1.5 HP (1.1 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3510 rpm
Slip 2.50 %
Rated voltage 208-230/460 V
Rated current 4.09-3.70/1.85 A
L. R. Amperes 35.2-31.8/15.9 A
LRC 8.6x(Code K)
No load current 1.40-1.62/0.809 A
Rated torque 2.21 ft.lb
Locked rotor torque 210 %
Breakdown torque 330 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 0.0835 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 29.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
81.5  84.0  84.0

Power factor

50% 75% 100%
0.73  0.83  0.89
