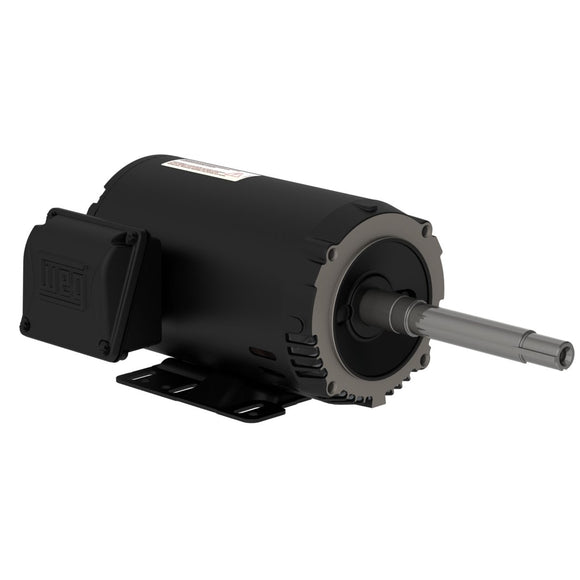

00156OT3E143JP-S WEG 1.5HP JP Close Coupled Pump Electric Motor, 3600RPM

$475.26 USD $534.00 USD Save $58.74 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00156OT3E143JP-S Barcode: 7909158552030

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 143/5JP
Output 1.5 HP (1.1 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3510 rpm
Slip 2.50 %
Rated voltage 208-230/460 V
Rated current 4.09-3.70/1.85 A
L. R. Amperes 35.2-31.8/15.9 A
LRC 8.6x(Code K)
No load current 1.40-1.62/0.809 A
Rated torque 2.21 ft.lb
Locked rotor torque 210 %
Breakdown torque 330 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 0.0835 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 32.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
81.5  84.0  84.0

Power factor

50% 75% 100%
0.73  0.83  0.89
Frame 143/5JP
Output 1.5 HP (1.1 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2890 rpm
Slip 3.67 %
Rated voltage 190/380 V
Rated current 4.40/2.20 A
L. R. Amperes 29.5/14.7 A
LRC 6.7x(Code H)
No load current 1.59/0.796 A
Rated torque 2.69 ft.lb
Locked rotor torque 180 %
Breakdown torque 250 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.0835 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 32.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.7  83.6  82.7

Power factor

50% 75% 100%
0.79  0.88  0.92
Frame 143/5JP
Output 1.5 HP (1.1 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2910 rpm
Slip 3.00 %
Rated voltage 220/415 V
Rated current 3.94/2.09 A
L. R. Amperes 30.8/16.3 A
LRC 7.8x(Code J)
No load current 1.84/0.977 A
Rated torque 2.67 ft.lb
Locked rotor torque 220 %
Breakdown torque 300 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.0835 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 32.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
81.0  83.3  83.2

Power factor

50% 75% 100%
0.71  0.83  0.88

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.118"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
