| product or component type |

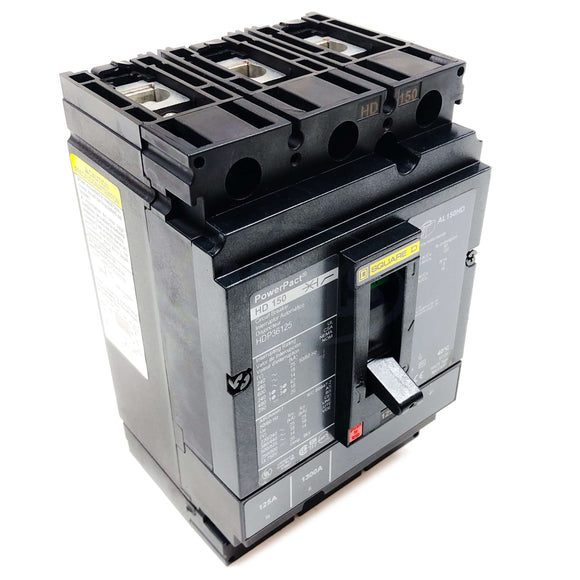

Circuit breaker |
|
|---|---|---|
| range of product |
PowerPact H |
|
| Trip Unit Type |
Thermal-magnetic |
|
| breaking capacity code |
D |
|
| Line Rated Current |
125 A |
|
|---|---|---|
| Number of Poles |
3P |
|
| Interrupt Rating |
25 kA 240 V AC 18 kA 480 V AC 14 kA 600 V AC 20 kA 250 V DC |
|
| [Ue] rated operational voltage |
250 V DC 600 V AC |
|
| continuous current rating |
80 % |
|
| mounting mode |
Unit mount |
|
| electrical connection |
Terminal nut line Lugs load |
|
| Wire Gauge |
AWG 14...AWG 3/0 aluminium/copper |
|
| magnetic hold current |
900 A |
|
| magnetic tripping current |
1700 A |
|
| height |
162.56 mm (6.4 in) |
|
| width |
104.65 mm (4.12 in) |
|
| depth |
110.74 mm (4.36 in) |
|
| tightening torque |
49.56…60.18 lbf.in (5.6…6.8 N.m) |
|
| product certifications |
IEC UL listed CSA CCC CE |
|
|---|---|---|
| ambient air temperature for operation |
104 °F (40 °C) |
|
