| range of product |
125 A Frame EDB-EGB-EJB |
|
|---|---|---|
| product or component type |

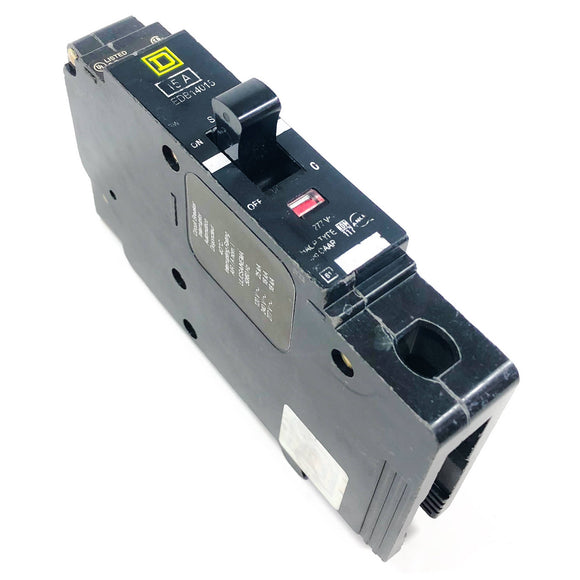

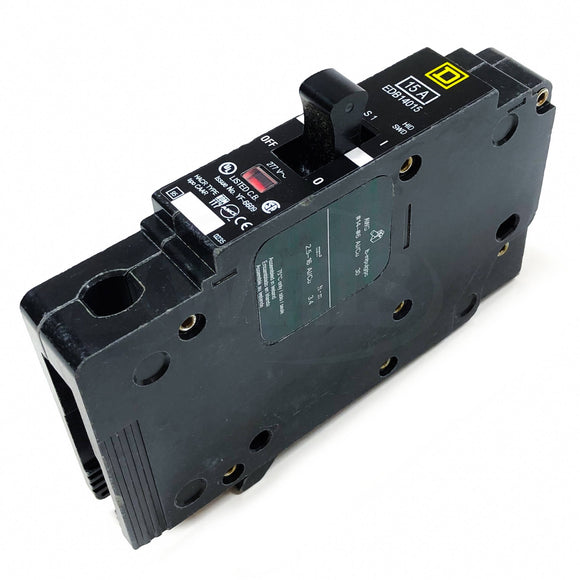

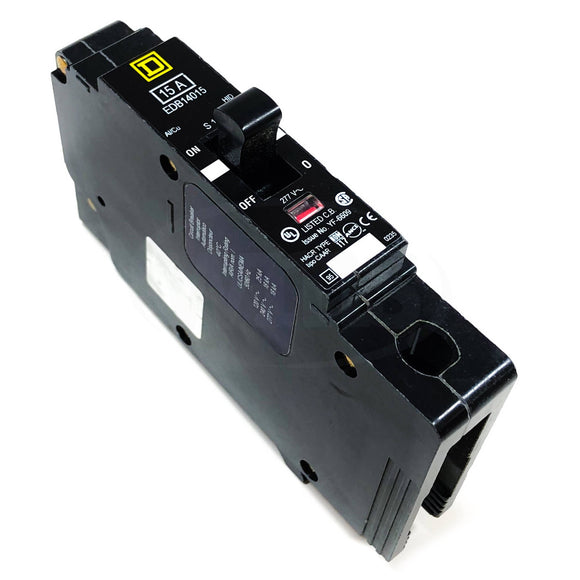

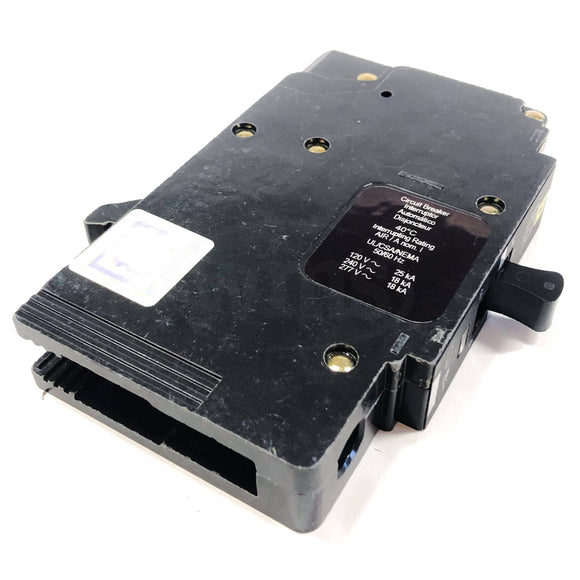

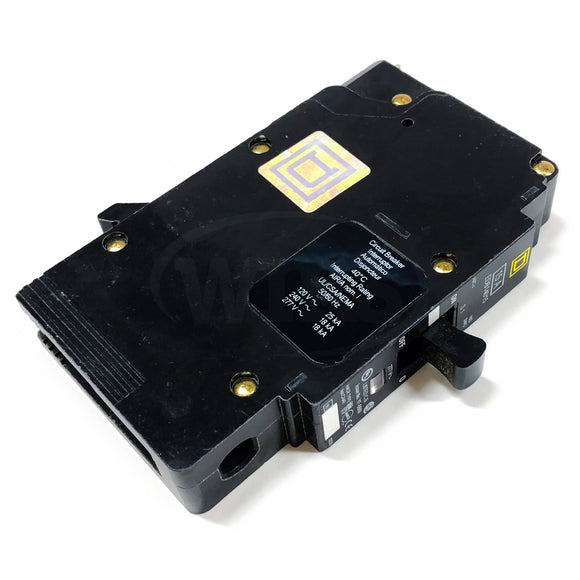

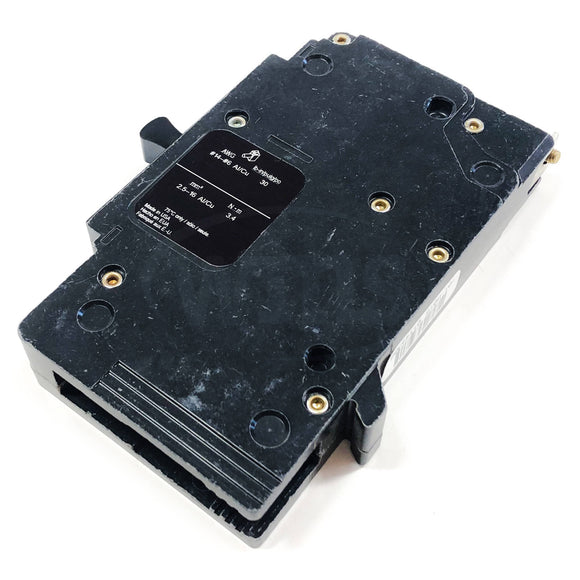

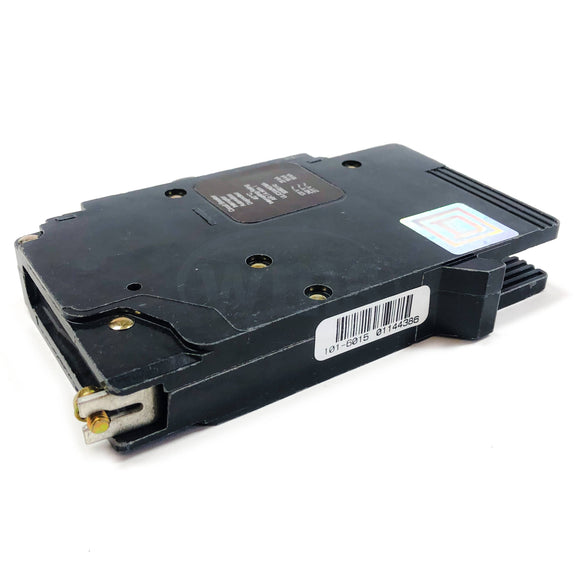

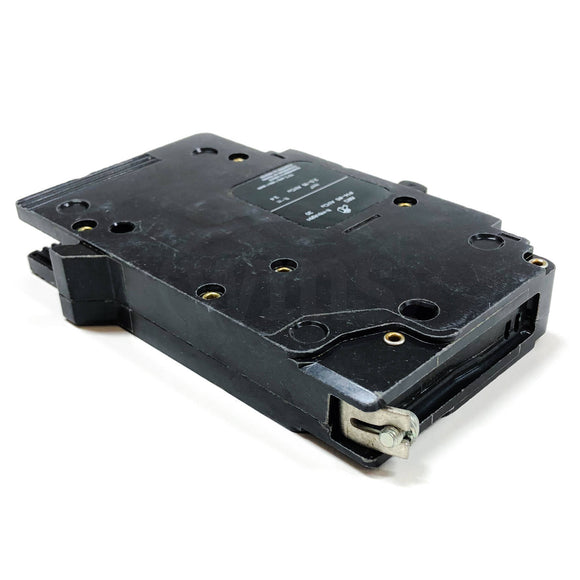

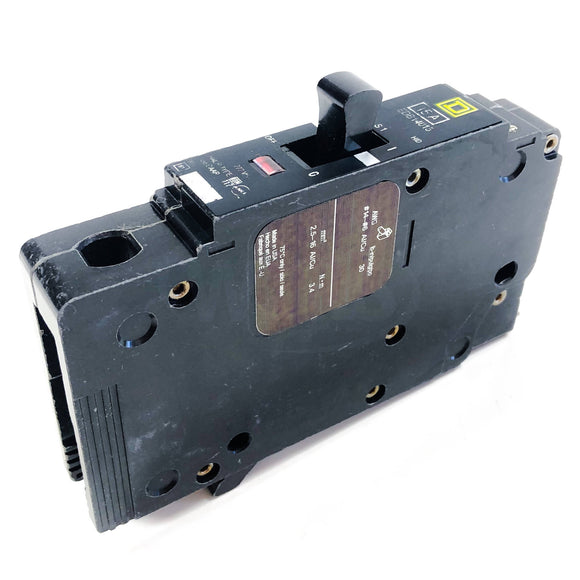

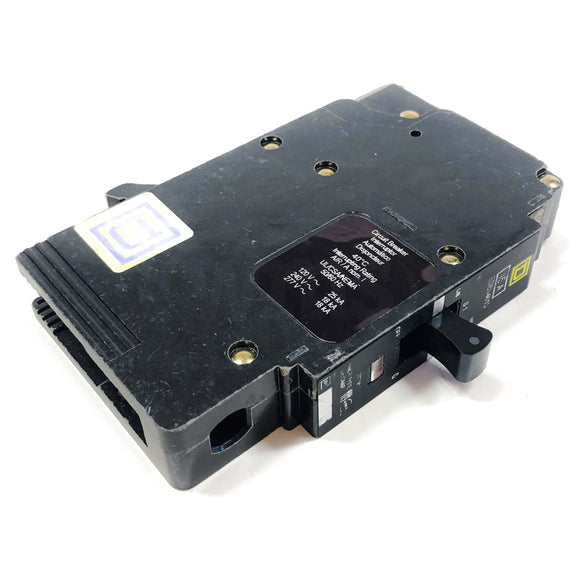

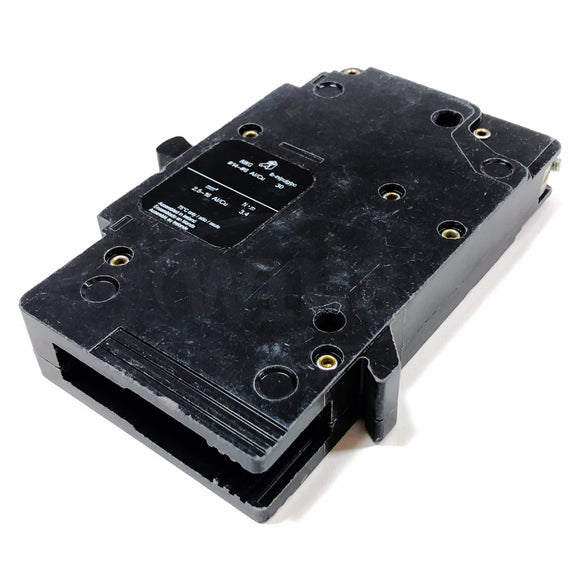

Miniature circuit-breaker |
|
| device short name |
EDB |
|
| module type |
E-Frame |
|
| trip unit rating |
875 A |
|
| Line Rated Current |
15 A |
|
|---|---|---|
| maximum operating voltage |
277 V AC |
|
| AWG gauge |
AWG 12...AWG 6 aluminium AWG 14...AWG 6 copper |
|
| breaking capacity |
18 kA 277 V AC 18 kA 240 V AC 25 kA 120 V AC 18 kA 120/240 V AC |
|
| circuit breaker application |
Switching Duty rated HACR rated HID rated |
|
| depth |
102.87 mm (4.05 in) |
|
| electrical connection |
Lugs aluminium |
|
| height |
143.76 mm (5.66 in) |
|
| holding current |
270 A |
|
| local signalling |
Trip indicator |
|
| mounting mode |
Bolt-on |
|
| number of poles |
1 |
|
| number of spaces |
1 |
|
| number of spaces required |
1 |
|
| product destination |
NF panelboard |
|
| net weight |
0.91 kg (2 lb(US)) |
|
| protection type |
Short-circuit Overload |
|
| width |
24.89 mm (0.98 in) |
|
| trip unit technology |
Thermal-magnetic |
|
| breaking capacity code |
D |
|
| tightening torque |
30.09 lbf.in (3.4 N.m) 0.00…0.02 in² (2.5…16 mm²) AWG 14...AWG 6) |
|
| product certifications |
CULus IEC |
|
|---|---|---|
| ambient air temperature for operation |
104 °F (40 °C) |
|
| Category |
00931 - EDB CIRCUIT BREAKERS |
|
|---|---|---|
| Discount Schedule |
DE2 |
|
| GTIN |
00785901878896 |
|
| Package weight(Lbs) |
0.60 kg (1.32 lb(US)) |
|
| Returnability |
|
|
| Country of origin |
|
|
