Features
- Double sealed ball bearings
- Manual overload protector
General Specifications
| UPC: | 786674069399 | Weight: | 136.00 LB |
| Packaged Length: | 22.19 IN | Packaged Width: | 16.5 IN |
| Packaged Height: | 14 IN |

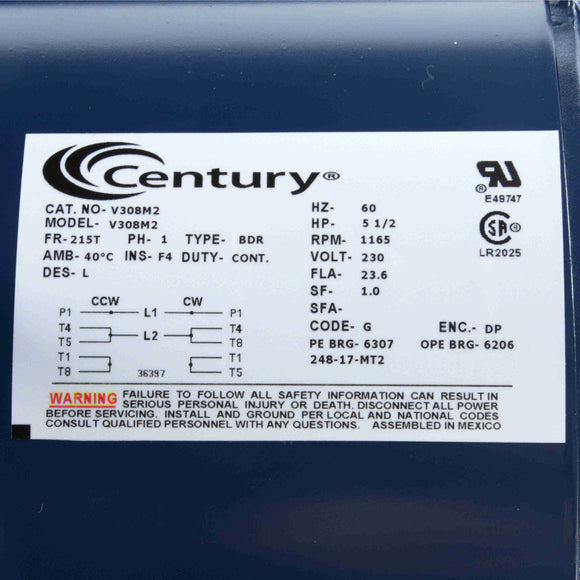

Nameplate Specifications
| Output HP: | 5.5 Hp | Output KW: | 4.1 kW |
| Frequency: | 60 Hz | Voltage: | 230 V |
| Current: | 22 A | Speed: | 1165 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Continuous | Insulation Class: | F |
| Frame: | 215T | Enclosure: | Drip Proof |
| Thermal Protection: | Manual | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N |
Technical Specifications
| Electrical Type: | Capacitor Start Capacitor Run | Starting Method: | Across The Line |
| Poles: | 6 | Rotation: | Selective Counterclockwise |
| Mounting: | Rigid base | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | Keyed | Overall Length: | 19.31 in |
| Frame Length: | 12.40 in | Shaft Diameter: | 1.375 in |
| Shaft Extension: | 3.47 in |
Speed & Load Characteristics
