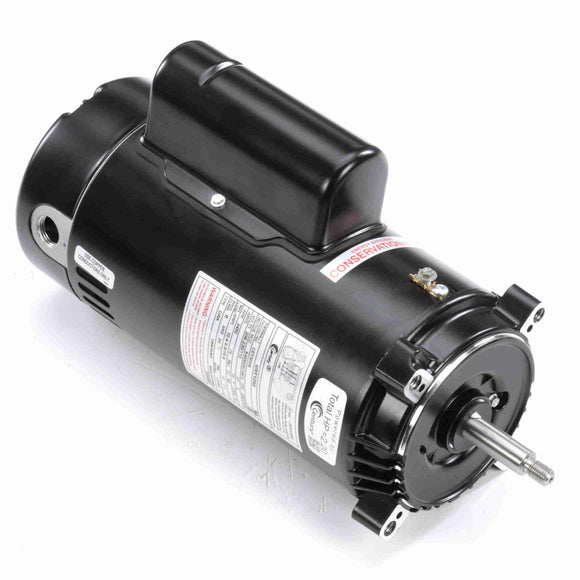

UST1202 Century 2HP Pool Pump Electric Motor, 3450RPM

$480.97 USD

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: UST1202 Barcode: 786674033352

30 Day
Return Policy

Ships Fast
in 24 hours

ODP, 56J Frame, 115/208-230VAC Single Phase 60Hz, Round Body, Rolled Steel, 5/8" Threaded Shaft

Description Product Specs Manufacturer





Features




Features


  • Sealed Switch Design

  • UL 1081 Design

  • 50°C Ambient

  • 304 Bearing Shaft End

  • 303 Stainless Steel Shaft

  • Threaded Shaft

  • Capacitor Start-Capacitor Run






General Specifications





General Specifications






























Model :

Catalog No :
UST1202

Part Description :
2 HP 3450 115-208/230 ODP 56J THD SHAFT
Category :
Induction Motors

Stock :
Yes






Nameplate Specifications





Nameplate Specifications























































Output HP :
2 HP
Output KW :
1.5 kW

Frequency :
60 Hz
Voltage :
208-230/115 V

Current :
10.4-9.8/19.6 A
Speed :
3450 RPM

Service Factor :
1.1
Phase :
1

Duty :
Continuous
Insulation Class :
B

Frame :
56J
Enclosure :
Open Drip Proof

Overload Protector :
Automatic
Ambient Temperature :
50 °C

UL :
Recognized
CSA :
Y






Technical Specifications





Technical Specifications






















































Electrical Type :
Capacitor Start Capacitor Run
Starting Method :
Across The Line

Poles :
2
Rotation :
Counterclockwise Pump End

Mounting :
Round
Motor Orientation :
Horizontal

Drive End Bearing :
Ball
Opp Drive End Bearing :
Ball

Frame Material :
Rolled Steel
Shaft Type :
Threaded

Overall Length :
15.20 in
Frame Length :
9.38 in

Shaft Diameter :
0.625 in
Shaft Extension :
2.565 in

UPC :
786674033352
Weight :
33.00 LB






Speed & Load Characteristics








  • Electric Motor
  • 56J
  • ODP
  • Single Phase
  • 2HP
  • 3450RPM
  • Pool Pump

Century Electric Motor (Regal Rexnord)
